FT-70 Fill Level Inspector Service Manual

Aligning the Inspection Trigger

No.
Description
1
Trigger Height Lock
2
Trigger Beam Emitter
3
Trigger Beam Centerline
4
Trigger Beam Receiver
5
Container Travel
6
Trigger Horizontal Centerline
7
Trigger Vertical Centerline
8
Width of Container at Trigger Point (top up)
9
Width of Container at Trigger Point (botom up)
4-8
You must align the inspection trigger height so that the trigger
beam contacts the container at the widest part of the lid.
7
9
6

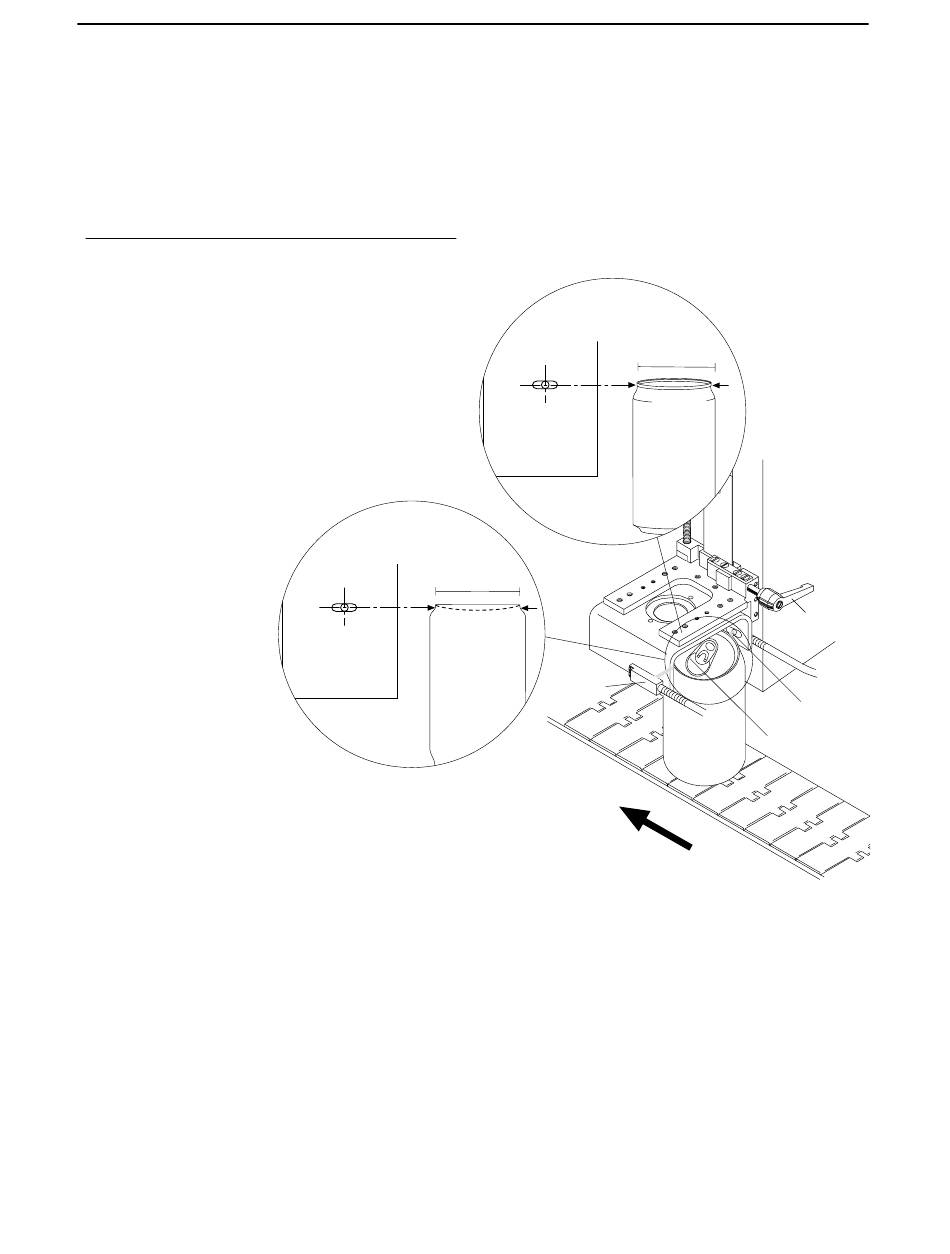

Figure 4-4. Align the Inspection Trigger Beam.
1. Loosen the Centerline Bracket height Lock, and using the
Centerline Sensor Bracket Height Crank, raise the bracket all
the way.
2. Center a properly filled and sealed production container in the
inspection tunnel so that when the sensor mounting bracket is
lowered, it is aligned with the trigger beam.
7
8
6
4
5
