Filtec FT-70c Service And Technical Reference Manual page 230

No. Description
1 Field
2 Diode must be used on inductive loads
3 Screw Terminals
4 Plug-in Module
5 Equivalent Circuit Only
6 Amplifier
7 Pins
8 Sockets in Mounting Rack
9 Pull-up Resistor
10 Edge Connector
11 Logic
12 Input
13 Ground (Common)
14 Mounting Rack
15 Fuse (Plug-in)
16 Load (Connected to either the positive or
negative side of the source)
No. Description
1 Field
2 Diode must be used on inductive loads
3 Screw Terminals
4 Plug-in Module
5 Equivalent Circuit Only
6 Zero Voltage Check
7 Pins
8 Sockets in Mounting Rack
9 Pull-up Resistor
10 Edge Connector
11 Logic
12 Input
13 Ground (Common)
14 Mounting Rack
15 Fuse (Plug-in)
16 Load (Connected to either the positive or
negative side of the source)
Industrial Dynamics Company, Ltd. © Form 40256-0600
+
Vcc
-
11
12
-
13

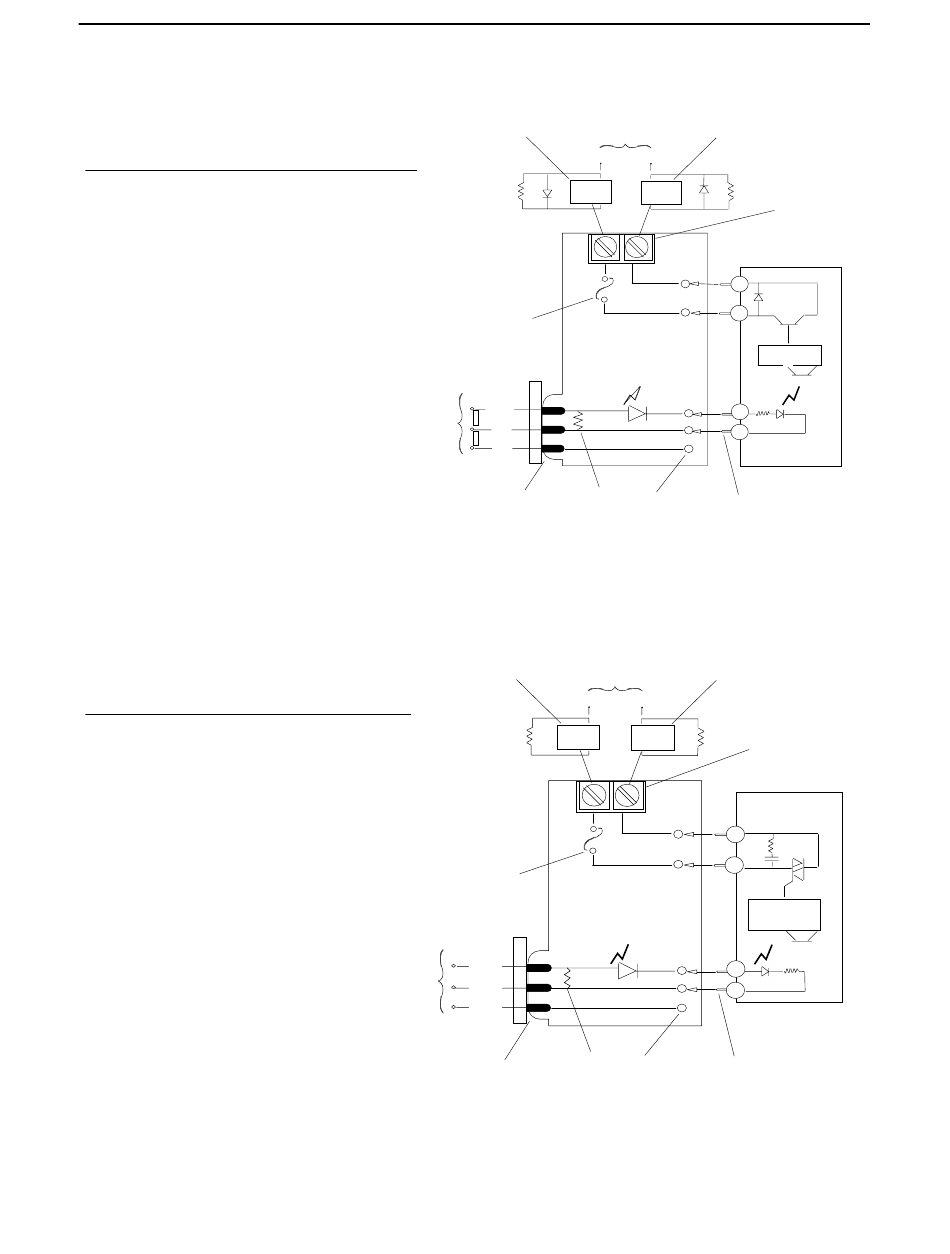

Figure 9-1. 0-60 Volts DC, 1 Amp max., 2 ma leakage, 10 ma min.
load.
16
15
+
Vcc
-
11
12
-
13
10
Figure 9-2. 0-120 Volts AC, 1 Amp max., 2 ma leakage, 50 ma min.
load.
Chapter 9: Using a PLC With Your FT-70
16
1
_
VDC
+
5A
15
14
L.E.D.
3.3K
9
10
8
1
VAC
5A
14
L.E.D.
3.3K
9 8
16
2
3
4
1
2
6
5
Rc
3
4
7
16
2
3
4
1
2
5
6
Rc
3
4
7
9-7
