FIGURE 1-10
3
2
1
Figure Legend
1
2
3
Note – If the PSU1 power cable does not reach the rack power distribution unit,
route the cable on the left side of the rack.
1.2.3.1

Minimum Bend Radius for Link Cables

The link cables might be damaged if they are coiled too tightly.
The minimum bend radius for the copper link cable is 1.85 in./47 mm.
■
The minimum bend radius for optical link cables is 1.8 in./46 mm.
■

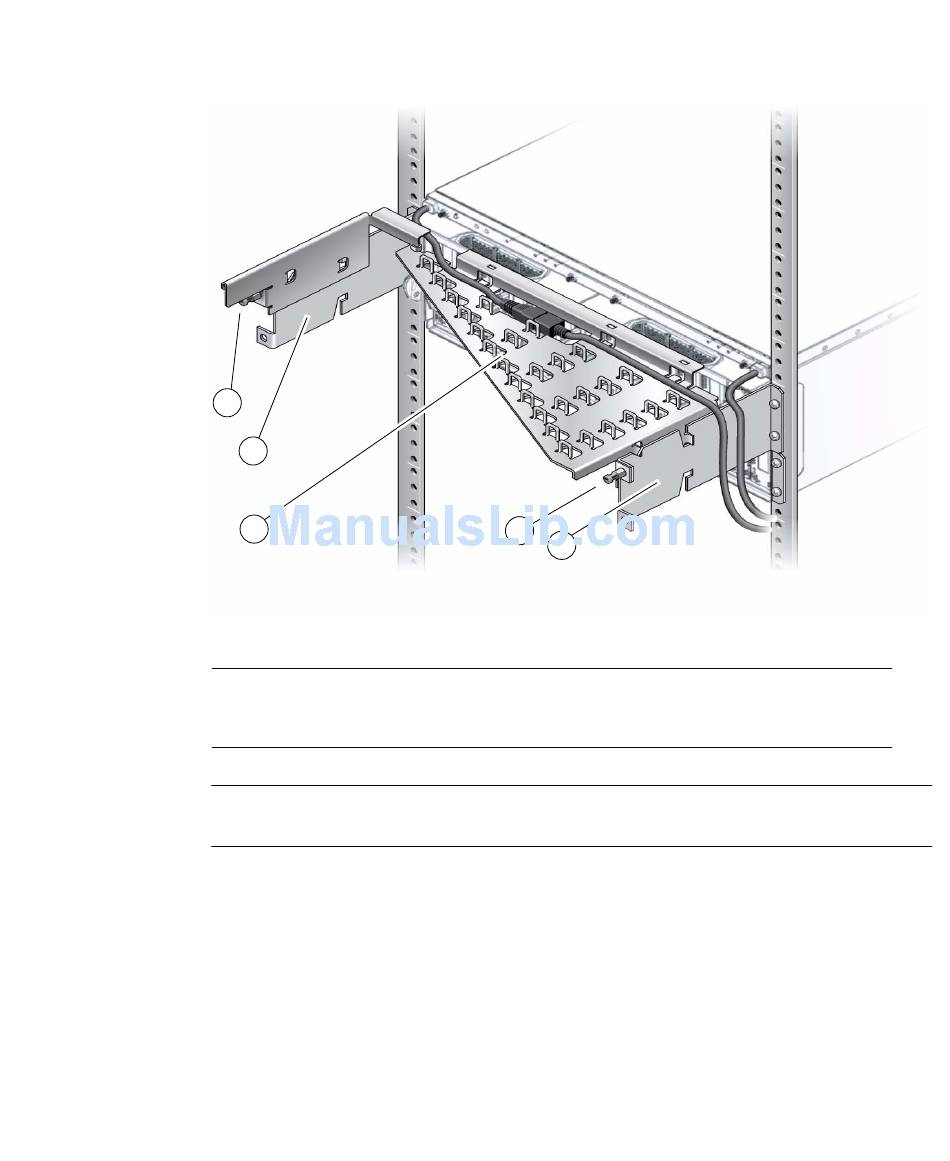

Cable Management Unit (Type B) for Routing Cables Only to the Right Side of
a Rack
Type B cable plate
Support brackets
Cable plate locking screws
3
2
Chapter 1 Overview 1-15
