C.2 Device Map Examples
As shown in the diagrams below, the OpenBoot PROM displays the following parts
in sequence for each PCI card in an External I/O Expansion Unit:
The I/O Unit (IOU) slot in the server
■
Multiple devices inside the I/O boat
■
The PCI card in the I/O boat
■
Disk drives, SCSI ports, or networks that connect to the PCI card
■
C.2.1

Device Map for PCI Express Cards

This is an example of a complete device path for a PCI Express (PCIe) card in a PCI
Express boat:
/IOU_slot/pci@0/pci@9/pci@0/pci@9/abc@n
IOU_slot is the IOU slot to which the link card for a External I/O Expansion Unit is
connected. See
FIGURE C-1
accumulation of ports from the host data bus (item 1) to the PCI card (item 6).

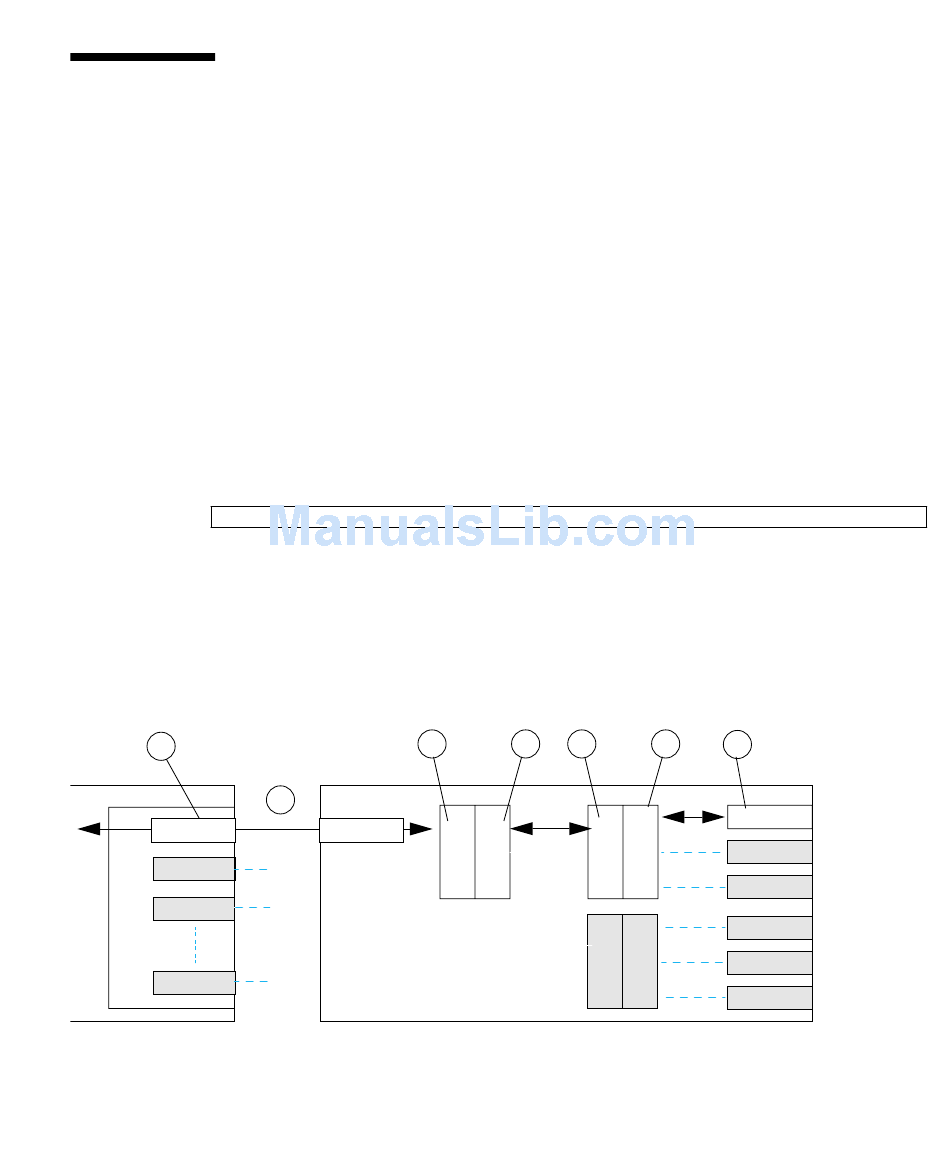

Device Path for PCI Express (PCIe) PCI Cards
FIGURE C-1
1
and
TABLE C-1
shows the device path for a PCI Express card. The device path is the
2
1a
0
.
TABLE C-2
3 4
0
9
1
0
Appendix C PCI Cards and Device Mapping
5
6
9
1
0
9
1
0
PCIe slot 6
PCIe slot 5
PCIe slot 4
PCIe slot 3
PCIe slot 2
PCIe slot 1
