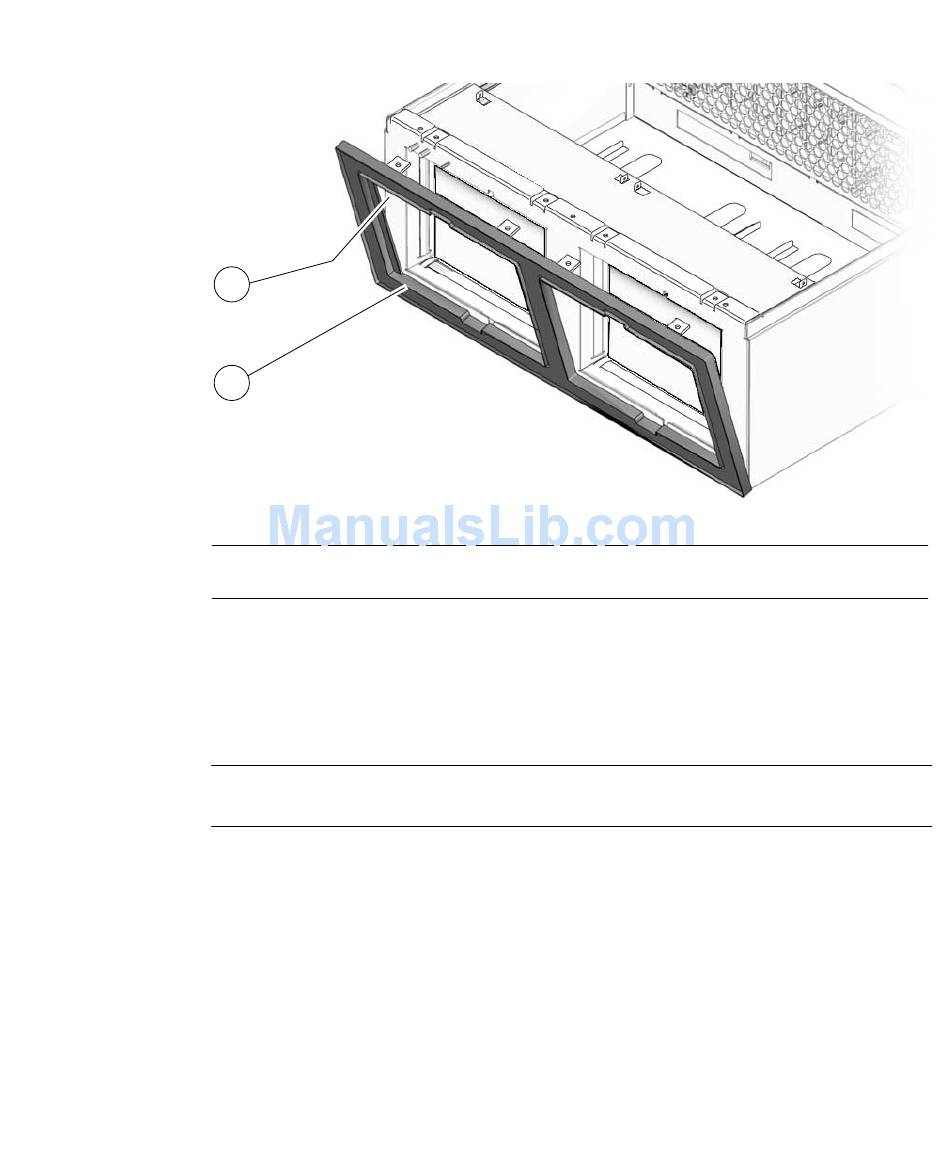

Serial Number Labels
FIGURE 4-8
1
2
Figure Legend
1 Upper serial number label
2 Lower serial number label
4. Use a No. 1 Phillips screwdriver to remove the top cover (
new chassis.
5. Set the cover aside.
This cover will be used with the new chassis.
Note – Do not attempt to move the service labels from the old cover to the new
cover. The new cover will be used without service labels.
6. Install the bezel on the replacement External I/O Expansion Unit chassis:
a. Tilt the bezel away from the External I/O Expansion Unit approximately 10
degrees.
b. Place the bottom edge of the bezel under the front of the chassis.
The lugs on the bottom of the chassis front fit into the slots in the bezel.
c. Tilt the bezel upright and use 4 No. 1 Phillips screws to attach the top of the
bezel to the replacement chassis.
Chapter 4 Servicing and Replacing Components
) from the
