Oracle SPARC Enterprise M4000 Installation And Service Manual page 90

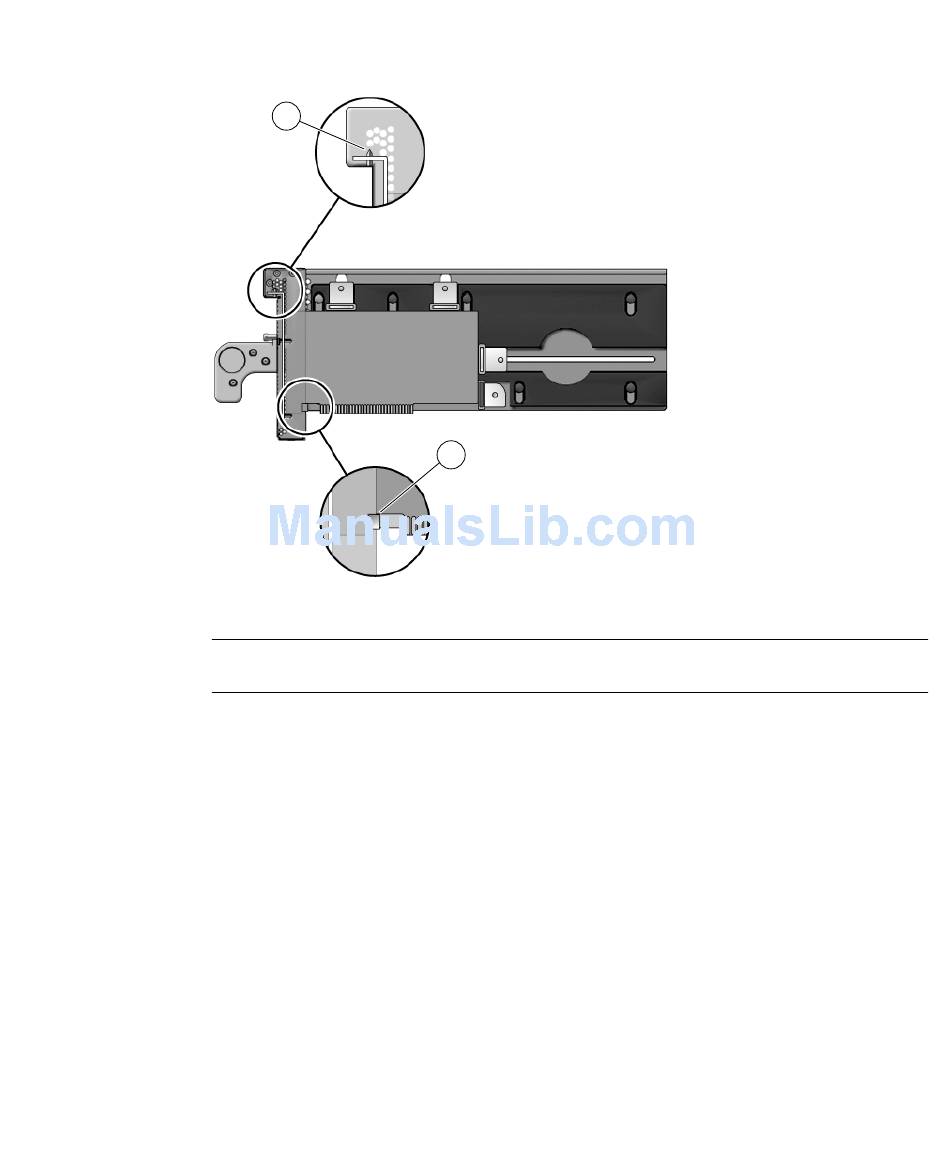

FIGURE 3-13
Figure Legend
1
2
9. Attach the PCI card to the carrier with one card lock:
a. Slide a card lock to the right edge of the PCI card.
b. Hold the card in place and partially tighten the card lock screw.
c. Verify that the PCI card is not tilted, then tighten the card lock screw.
3-12 External I/O Expansion Unit for SPARC Enterprise Mx000 Servers Installation and Service Manual • April 2011
Placing the PCI Card on the Carrier
2
Card alignment tab
Card alignment post
1
