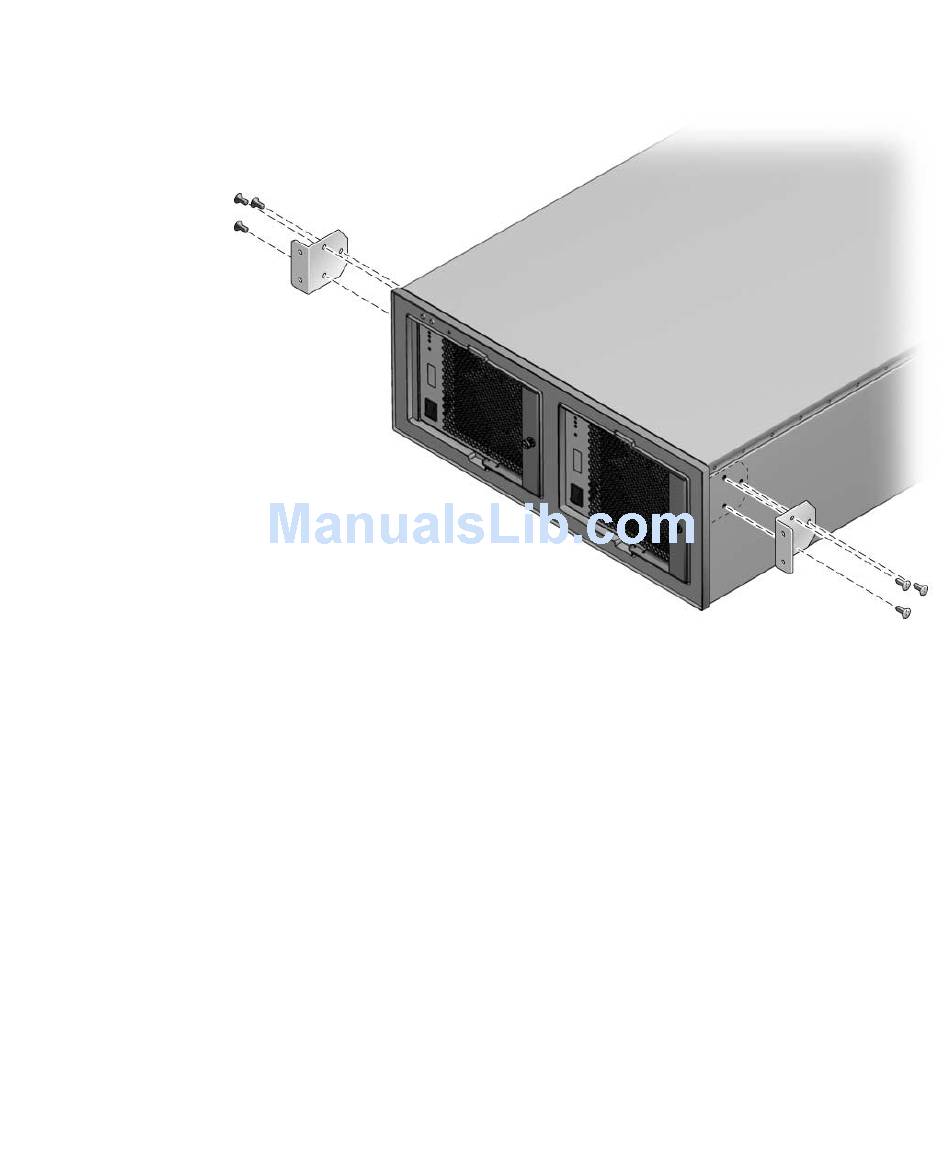

Installing the Chassis Lock Brackets
FIGURE 2-3
4. Loosen the screws (
) that hold the sliding flanges to the mounting
FIGURE 2-4
brackets.
This action allows the rear flanges to adjust to fit different rack depths.
2-4
External I/O Expansion Unit for SPARC Enterprise Mx000 Servers Installation and Service Manual • April 2011
