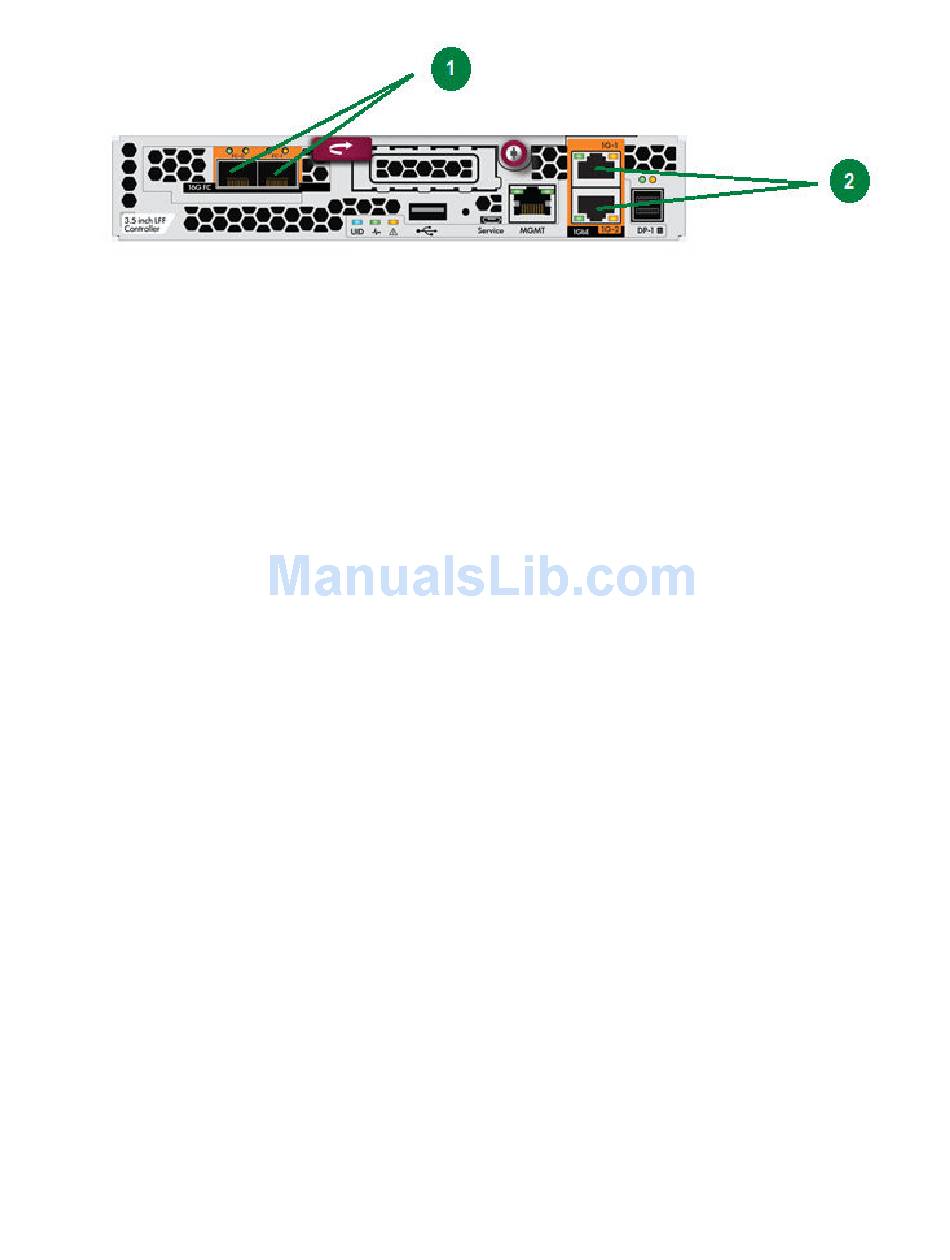

Controller with a Fibre Channel card
1. Option card Fibre Channel ports
2. Built-in 1G ports
The built-in 1G ports are bonded and share a subnet mask. Fibre Channel ports do not require IP
addresses, so no bonding is necessary.
Network configuration for array enclosure with 1 GbE controller modules (two port)
All iSCSI, Remote Copy, and Management traffic are routed through these two ports. The two 1 GbE
ports are bonded together for redundancy and performance during the Configuration Setup procedure.
Physical connections:
Connect 1G-1 and 1G-2 on each controller to a switch (four 1 GbE connections).
Required IP addresses:
•
Two for the 1 GbE network on Controller 1
•
Two for the 1 GbE network on Controller 2
•
One for the VIP
•
All other interfaces are disabled
The following figure illustrates the cabling described.
32
