1. 8 Gb/16 Gb Fibre Channel ports
2. Controller locate UID
3. Controller status LED
4. Controller fault LED
5. USB type A port
6. Recovery/power button (See Recovery/power
button).

Recovery/power button

The recovery/power button is a recessed button that requires an unfolded paper clip or other small
pointed device to press it. The recovery/power has these functions depending upon the state of the
controller:
Press the recovery/power button for one second:
If the controller power is ON, and the OS is running, a safe shutdown is performed and the controller is
powered off.
If the controller power is OFF (but the enclosure power is ON), the CPU is powered on and causes a
reboot of the controller.

HPE StoreVirtual 3200 drive enclosure

The HPE StoreVirtual 3200 drive enclosure is available in either an LFF configuration with 12 drive bays,
or an SFF configuration with 25 drive bays. The components on the rear of the drive enclosure are
identical for both the LFF and SFF configurations.

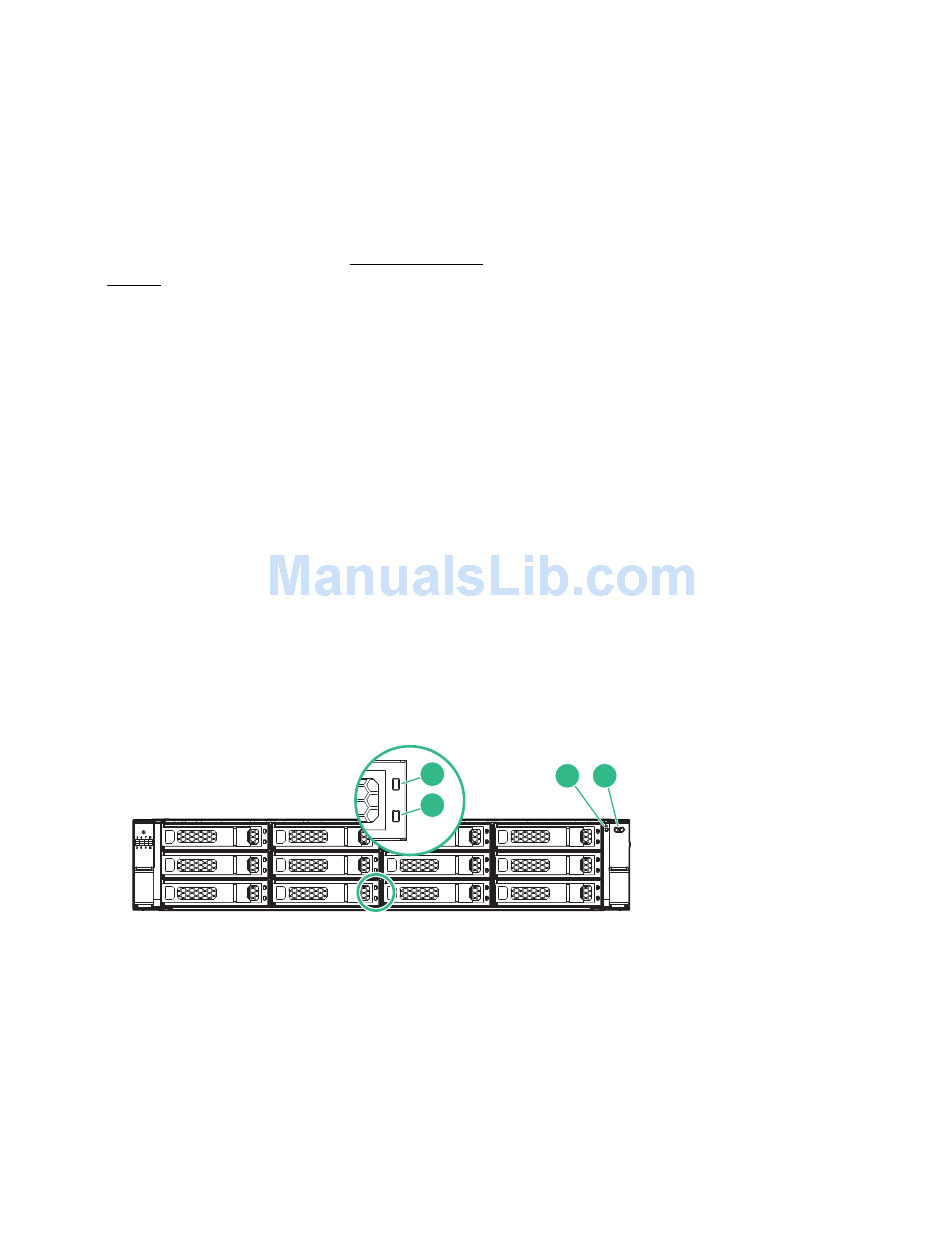

Figure 9: HPE StoreVirtual 3200 LFF front view
1. Disk drive locate UID
2. Disk drive status LED
7. Service port (Micro-B USB)
8. Management port (MGMT)
9. 1 GbE ports
10. Data port status LEDs
11. SAS data port to optional drive enclosure
(DP-1)
1
3
4
2
3. System status LED
4. System locate UID
/push button
Recovery/power button
9
