4. Use guide pins to align the shelf mount kit to theEIA column holes.

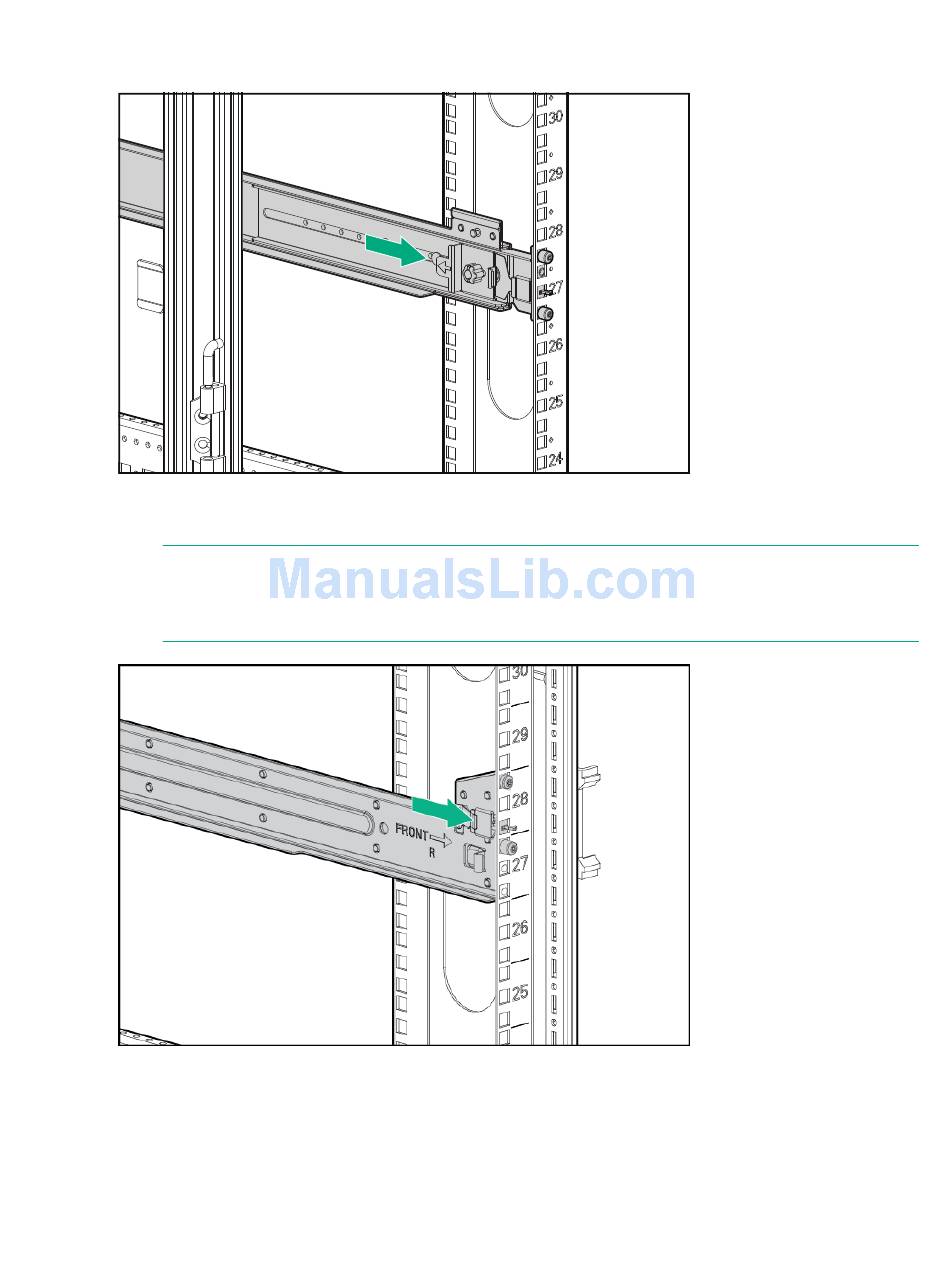

5. To engage the rail to the rear of the rack, push the rail toward the back of the rack until the spring hook
snaps into place.
6. To engage the rail to the front of the rack, pull the rail towards the front of the rack until the spring hook
snaps into place.
NOTE:
Make sure that the respective guide pins for the square or round hole rack align properly into the
EIA column hole spacing.
7. Secure the rear of the rack rail to the EIA column with either the round- or square-hole shoulder
screws provided in the package.
