Parts List - Analog Devices ADuC7026 Reference Manual

Component
EVAL- ADuC7026QS QuickStart PCB 1
PCB Standoff
U1
U2
U3
U4
U5
U8 (NOT POPULATED)
U9 (NOT POPULATED)
Y1
S1
S2, S3, S4
D1, D2, D3
D4
C1, C5, C13, C15, C18, C22, C23
C2–C4, C6, C12, C14, C16, C17, C24
C7, C8
C11, C19
C20, C21
R1
R2
R3
R4
R5, R6, R8, R9
R7
R10, R11
R12, R20
REV. 0

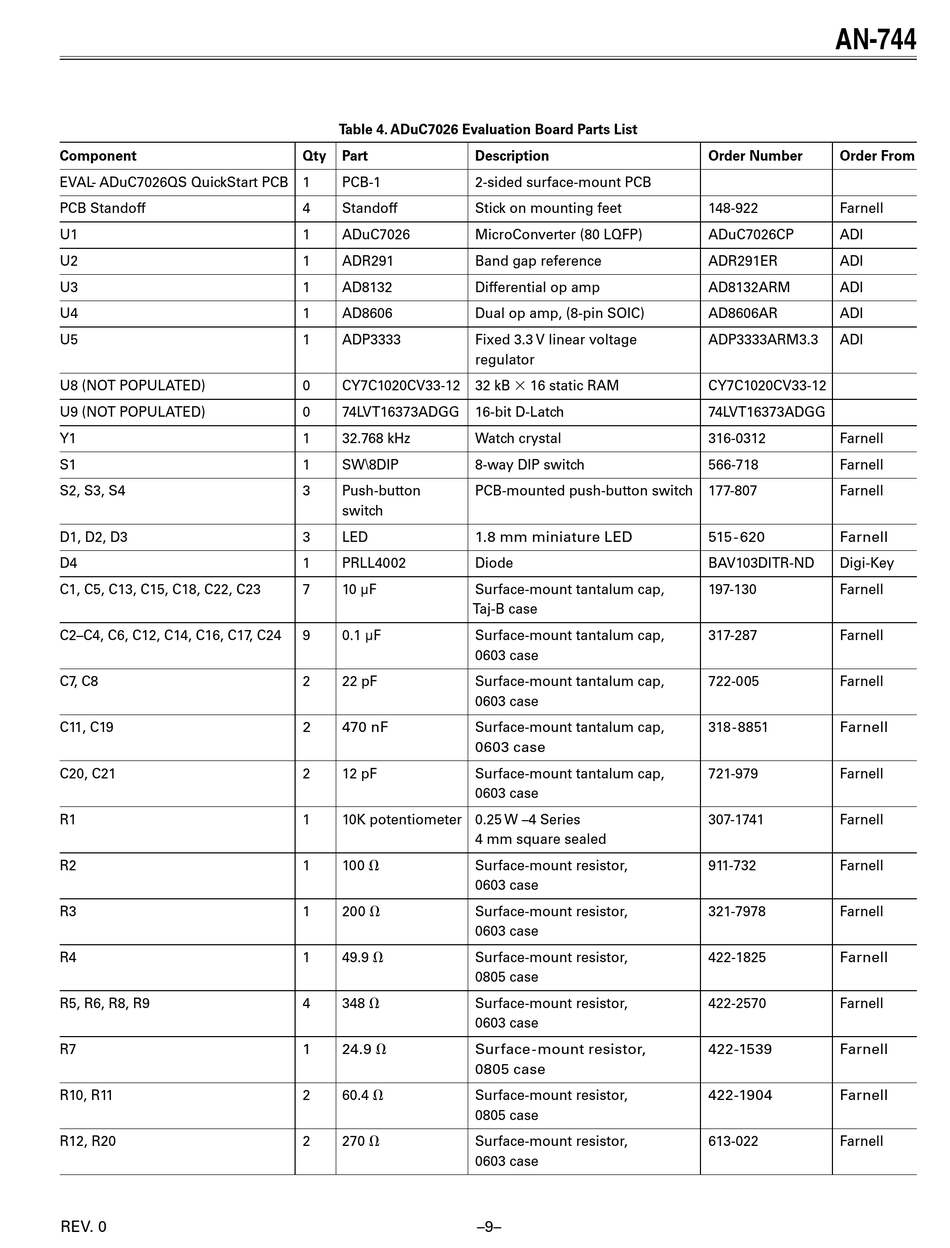

Table 4. ADuC7026 Evaluation Board Parts List
Qty Part Description
PCB-1 2-sided surface-mount PCB
4 Standoff Stick on mounting feet
1 ADuC7026 MicroConverter (80 LQFP)
1 ADR291 Band gap reference
1 AD8132 Differential op amp
1 AD8606 Dual op amp, (8-pin SOIC)
1 ADP3333 Fixed 3.3 V linear voltage
regulator
0 CY7C1020CV33-12 32 kB  16 static RAM
0 74LVT16373ADGG 16-bit D-Latch
1 32.768 kHz Watch crystal
1 SW\8DIP 8-way DIP switch
3 Push-button PCB-mounted push-button switch 177-807
switch
3 LED 1.8 mm miniature LED
1 PRLL4002 Diode
7 10 µF Surface-mount tantalum cap,
Taj-B case
9 0.1 µF Surface-mount tantalum cap,
0603 case
2 22 pF Surface-mount tantalum cap,
0603 case
2 470 nF Surface-mount tantalum cap,
0603 case
2 12 pF Surface-mount tantalum cap,
0603 case
1 10K potentiometer 0.25 W –4 Series
4 mm square sealed
1 100  Surface-mount resistor,
0603 case
1 200  Surface-mount resistor,
0603 case
1 49.9  Surface-mount resistor,
0805 case
4 348  Surface-mount resistor,
0603 case
1 24.9  Surface-mount resistor,
0805 case
2 60.4  Surface-mount resistor,
0805 case
2 270  Surface-mount resistor,
0603 case
–9–
AN-744
Order Number Order From
148-922 Farnell
ADuC7026CP ADI
ADR291ER ADI
AD8132ARM ADI
AD8606AR ADI
ADP3333ARM3.3 ADI
CY7C1020CV33-12
74LVT16373ADGG
316-0312 Farnell
566-718 Farnell
Farnell
515-620 Farnell
BAV103DITR-ND Digi-Key
197-130 Farnell
317-287 Farnell
722-005 Farnell
318-8851 Farnell
721-979 Farnell
307-1741 Farnell
911-732 Farnell
321-7978 Farnell
422-1825 Farnell
422-2570 Farnell
422-1539 Farnell
422-1904 Farnell
613-022 Farnell
