Schematic - Analog Devices ADuC7026 Reference Manual

Hide thumbs Also See for ADuC7026:

Advertisement

AN-744

SCHEMATIC

������� ���������
������ ���������
���� ���������

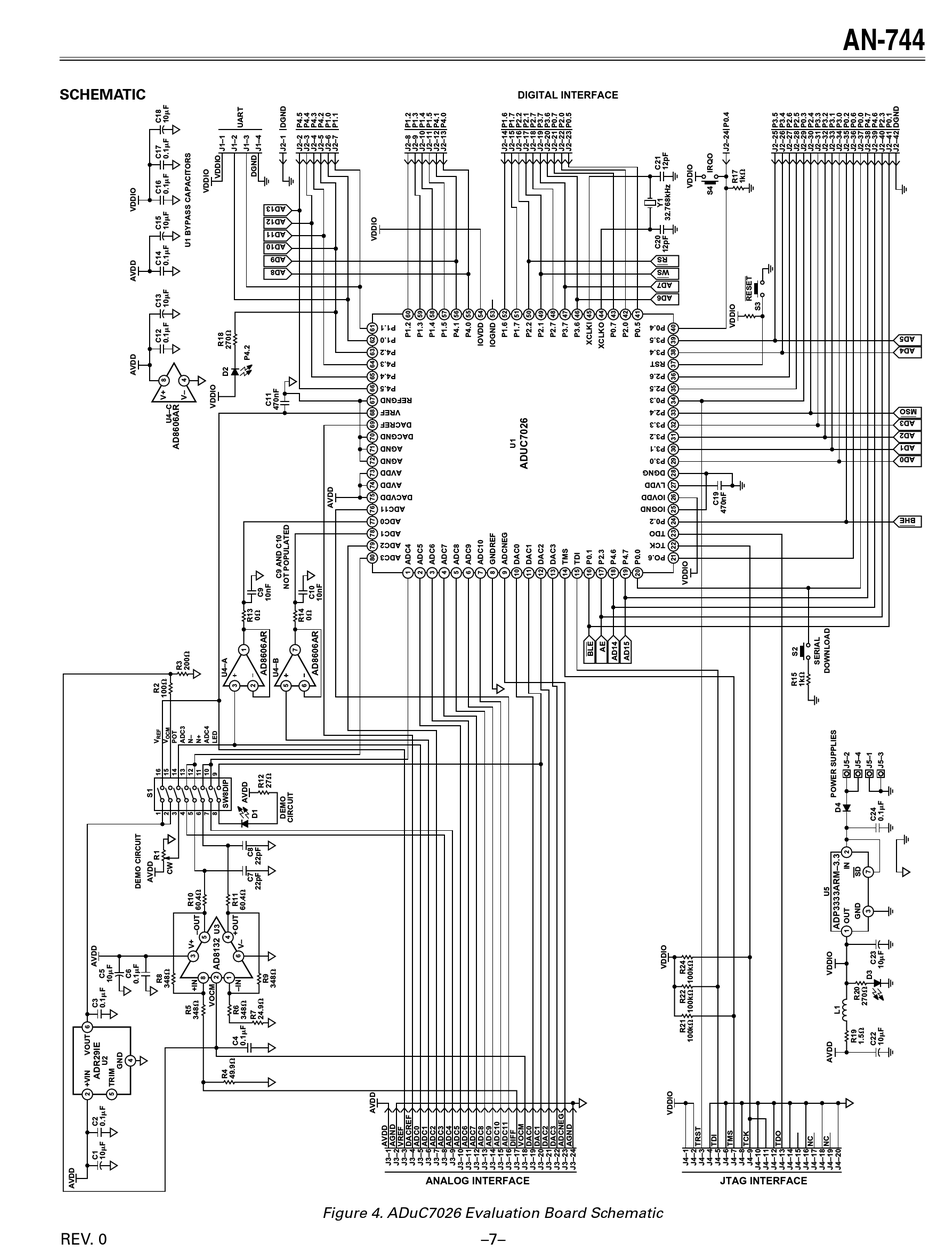

Figure 4. ADuC7026 Evaluation Board Schematic
REV. 0
–7–
