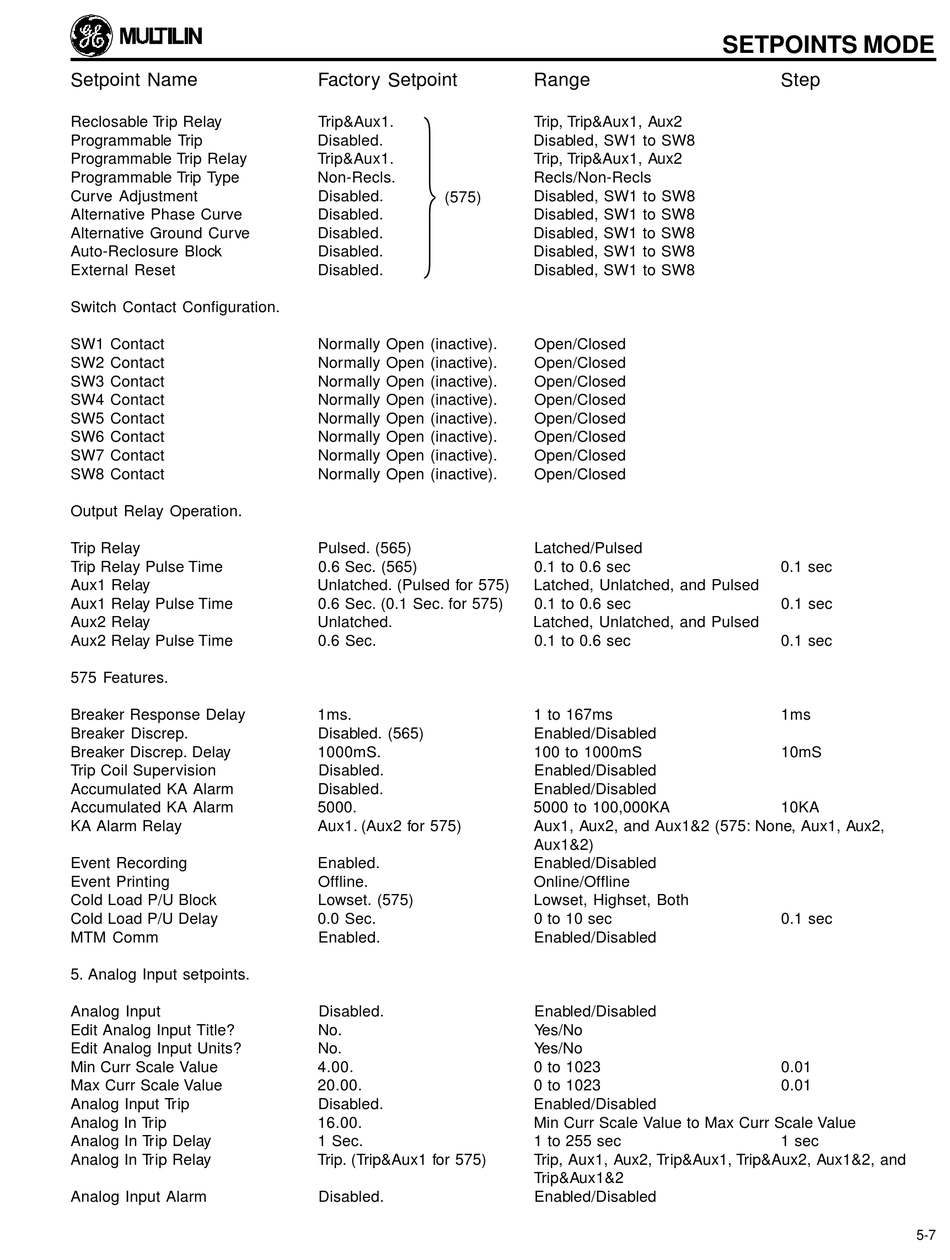

GE Multilin 565 Instruction Manual page 51

Setpoint Name
Reclosable Trip Relay
Programmable Trip
Programmable Trip Relay
Programmable Trip Type
Curve Adjustment
Alternative Phase Curve
Alternative Ground Curve
Auto-Reclosure Block
External Reset
Switch Contact Configuration.
SW1 Contact
SW2 Contact
SW3 Contact
SW4 Contact
SW5 Contact
SW6 Contact
SW7 Contact
SW8 Contact
Output Relay Operation.
Trip Relay
Trip Relay Pulse Time
Aux1 Relay
Aux1 Relay Pulse Time
Aux2 Relay
Aux2 Relay Pulse Time
575 Features.
Breaker Response Delay
Breaker Discrep.
Breaker Discrep. Delay
Trip Coil Supervision
Accumulated KA Alarm
Accumulated KA Alarm
KA Alarm Relay
Event Recording
Event Printing
Cold Load P/U Block
Cold Load P/U Delay
MTM Comm
5. Analog Input setpoints.
Analog Input
Edit Analog Input Title?
Edit Analog Input Units?
Min Curr Scale Value
Max Curr Scale Value
Analog Input Trip
Analog In Trip
Analog In Trip Delay
Analog In Trip Relay
Analog Input Alarm
Factory Setpoint
U V
Trip&Aux1.
Disabled.
Trip&Aux1.
Non-Recls.
Disabled.
(575)
Disabled.
W
Disabled.
Disabled.
Disabled.
Normally Open (inactive).
Normally Open (inactive).
Normally Open (inactive).
Normally Open (inactive).
Normally Open (inactive).
Normally Open (inactive).
Normally Open (inactive).
Normally Open (inactive).
Pulsed. (565)
0.6 Sec. (565)
Unlatched. (Pulsed for 575)
0.6 Sec. (0.1 Sec. for 575)
Unlatched.
0.6 Sec.
1ms.
Disabled. (565)
1000mS.
Disabled.
Disabled.
5000.
Aux1. (Aux2 for 575)
Enabled.
Offline.
Lowset. (575)
0.0 Sec.
Enabled.
Disabled.
No.
No.
4.00.
20.00.
Disabled.
16.00.
1 Sec.
Trip. (Trip&Aux1 for 575)
Disabled.
Range
Trip, Trip&Aux1, Aux2
Disabled, SW1 to SW8
Trip, Trip&Aux1, Aux2
Recls/Non-Recls
Disabled, SW1 to SW8
Disabled, SW1 to SW8
Disabled, SW1 to SW8
Disabled, SW1 to SW8
Disabled, SW1 to SW8
Open/Closed
Open/Closed
Open/Closed
Open/Closed
Open/Closed
Open/Closed
Open/Closed
Open/Closed
Latched/Pulsed
0.1 to 0.6 sec
Latched, Unlatched, and Pulsed
0.1 to 0.6 sec
Latched, Unlatched, and Pulsed
0.1 to 0.6 sec
1 to 167ms
Enabled/Disabled
100 to 1000mS
Enabled/Disabled
Enabled/Disabled
5000 to 100,000KA
Aux1, Aux2, and Aux1&2 (575: None, Aux1, Aux2,
Aux1&2)
Enabled/Disabled
Online/Offline
Lowset, Highset, Both
0 to 10 sec
Enabled/Disabled
Enabled/Disabled
Yes/No
Yes/No
0 to 1023
0 to 1023
Enabled/Disabled
Min Curr Scale Value to Max Curr Scale Value
1 to 255 sec
Trip, Aux1, Aux2, Trip&Aux1, Trip&Aux2, Aux1&2, and
Trip&Aux1&2
Enabled/Disabled
SETPOINTS MODE
Step
0.1 sec
0.1 sec
0.1 sec
1ms
10mS
10KA
0.1 sec
0.01
0.01
1 sec
5-7
