Tools for OSPE

10
OSPE Steering Valve
Tools

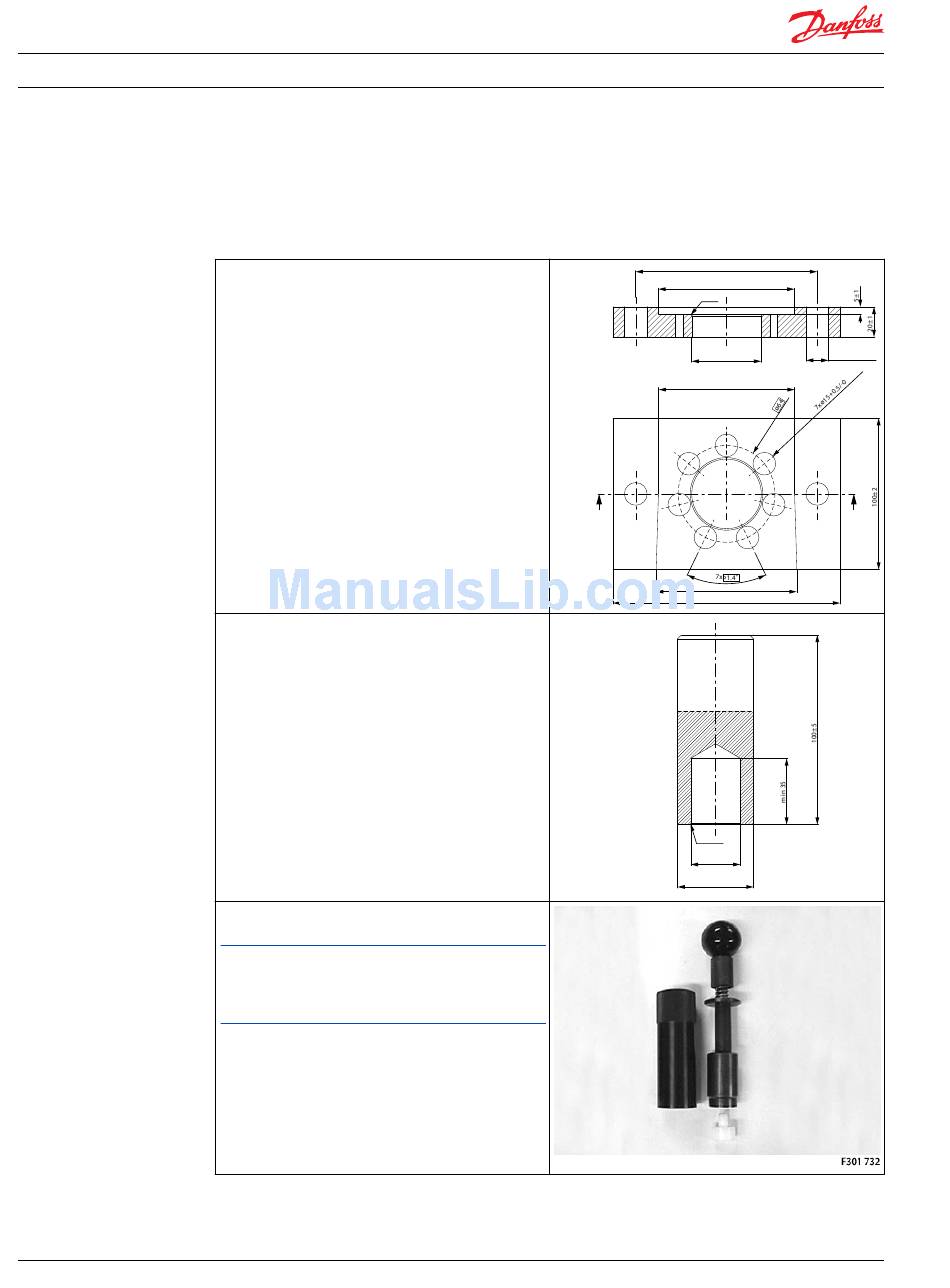

Holding tool for the entire steering valve.
Material: Appropriate metal or hard plastic
This tool is not available from Danfoss.
Assembly tool for dust seal.
Material: Free cutting steel.
This tool is not available from Danfoss.
Assembly tool for shaft seal, O-ring/Roto Glyd type: Code
number: 11092408.
This tool has been modified by January 2015. The upper
end of outer tube has knurled surface on 25 mm from top
only (was 35 mm). Tool with 35 mm knurled surface can
be modified by grinding off 10 mm of the knurled
surface.
