Service Manual
Assembly
38
OSPE Steering Valve
Assembling OSPE (continued)

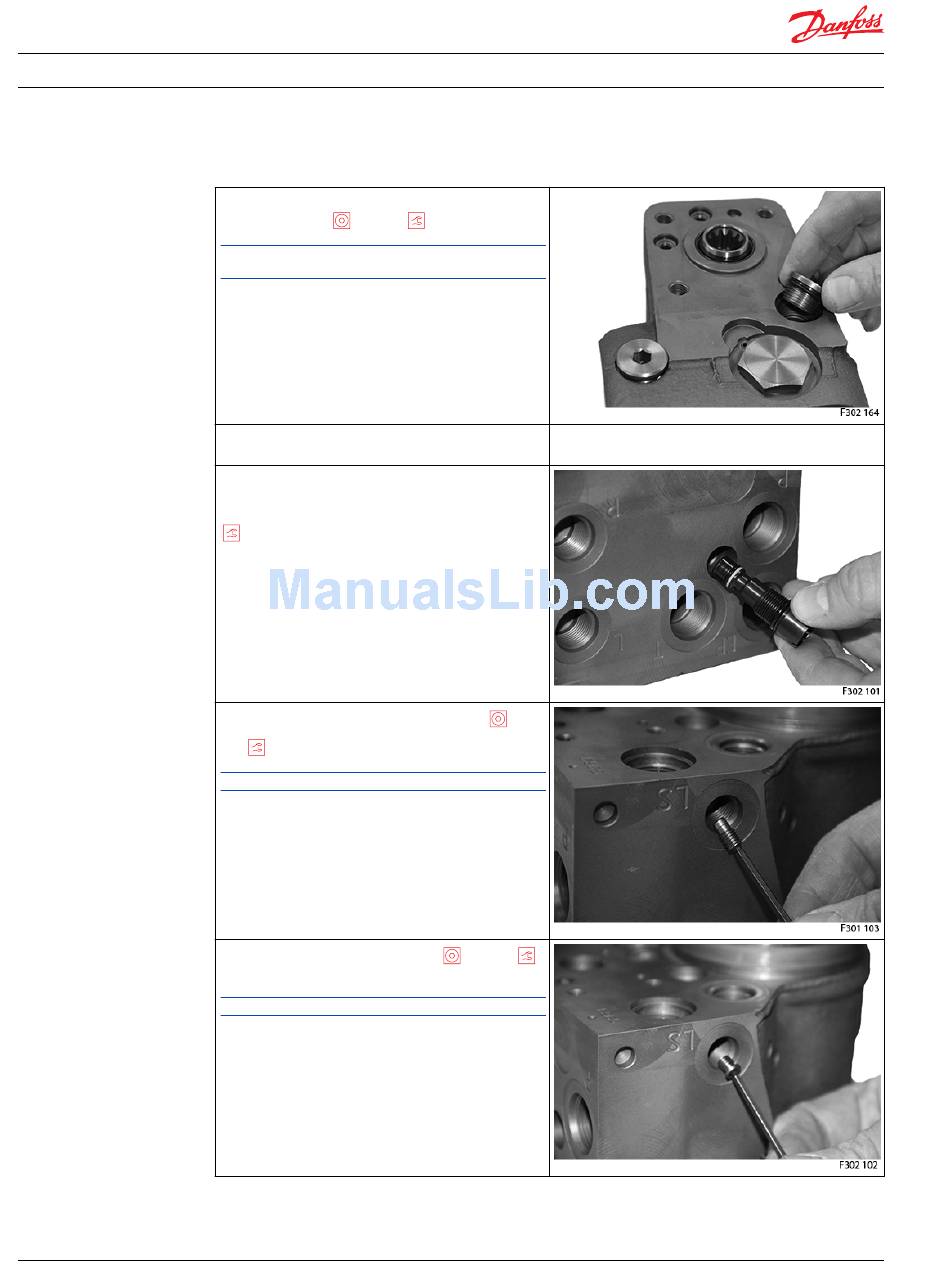

Place O-rings (311) on plugs (209). Screw in the plugs
(209) using a 8 mm
Hex key.
The left side positioned plug is only present on OSPE's
with priority valve integrated.
Replace the unit in the holding tool on steering column
end.
Place back up ring (303), O-rings (301, 302, 304), filter
(305) and locking ring (300) in/on cartridge (95). Screw in
cartridge (95) using special key Danfoss code 155L6494.
20 ±3 Nm.
After entire assembly of the steering valve, make the
pressure setting on a test panel according to valve
setting specification, see
Shock valves
Insert plastic protection plug (93).
Screw in the LS check valve (221) using a 3 mm
key.
3 ±0.5 Nm.
This check valve is not present in all OSPE's.
Screw in the orifice (222) using a 3 mm
3 ±0.5 Nm.
This orifice is not present in all OSPE's.
L1506577 • Rev 0001 • August 2015
45 ±5 Nm
on page 44.
Hex
Hex key.
