7 DISPLAY

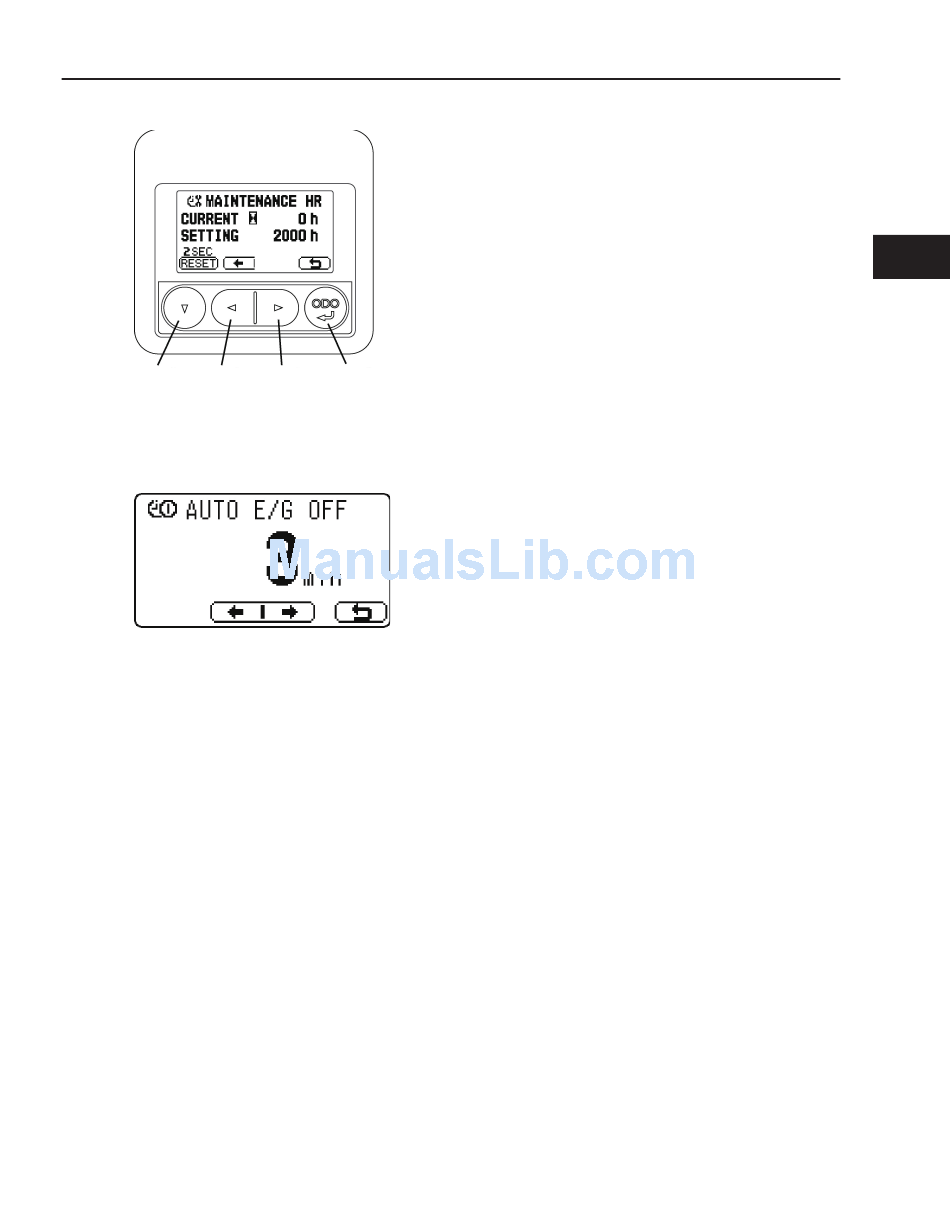

4) Planned maintenance hour setting screen

switch (1) switch (2)

5) Engine auto stop time setting screen

Planned time of maintenance hour meter is set up on this
screen.
Time for maintenance hour meter can be set from 10 hours
up to 2400 hours, by 10 hours for 10 hours to 200 hours and by
50 hours for 200 hours to 2400 hours.
▪ Press switch (2) to decrease the setting time.
Switch (3): Increase the setting time.
Switch (4): Display the menu screen.
Pressing switch (1) for more than 2 seconds will reset the
current hour meter value to 0.(This operation keeps the set-
ting value same.)
switch (3) switch (4)
The function is turned off when 10h is set for maintenance hour
meter and the switch (2) is pressed to decrease the setting
time. The current value is kept but the maintenance indicator
and the buzzer are deactivated with this "OFF" setting.
Time of engine auto stop is set up on this screen.
▪ Switch (2): Decrease the setting time.
Switch (3): Increase the setting time.
Switch (4): Display the menu screen.
Time for auto engine stop can be set from 10 seconds up to
30minutes, by 10 seconds for 10 seconds to 1 minute and by 1
minute for 1minute to 30 minutes.
The function is turned off when 30 minutes is set for the engine
auto stop and the switch (3) is pressed to increase the set time.
In that case "OFF" is displayed.
