Toyota 8FGU15 Repair Manual page 50

5-48
Adjusting screw
Adjusting screw
(A)
(A)
Point 5
2
1 3
5
7
6
(A)
(A)
Point 6

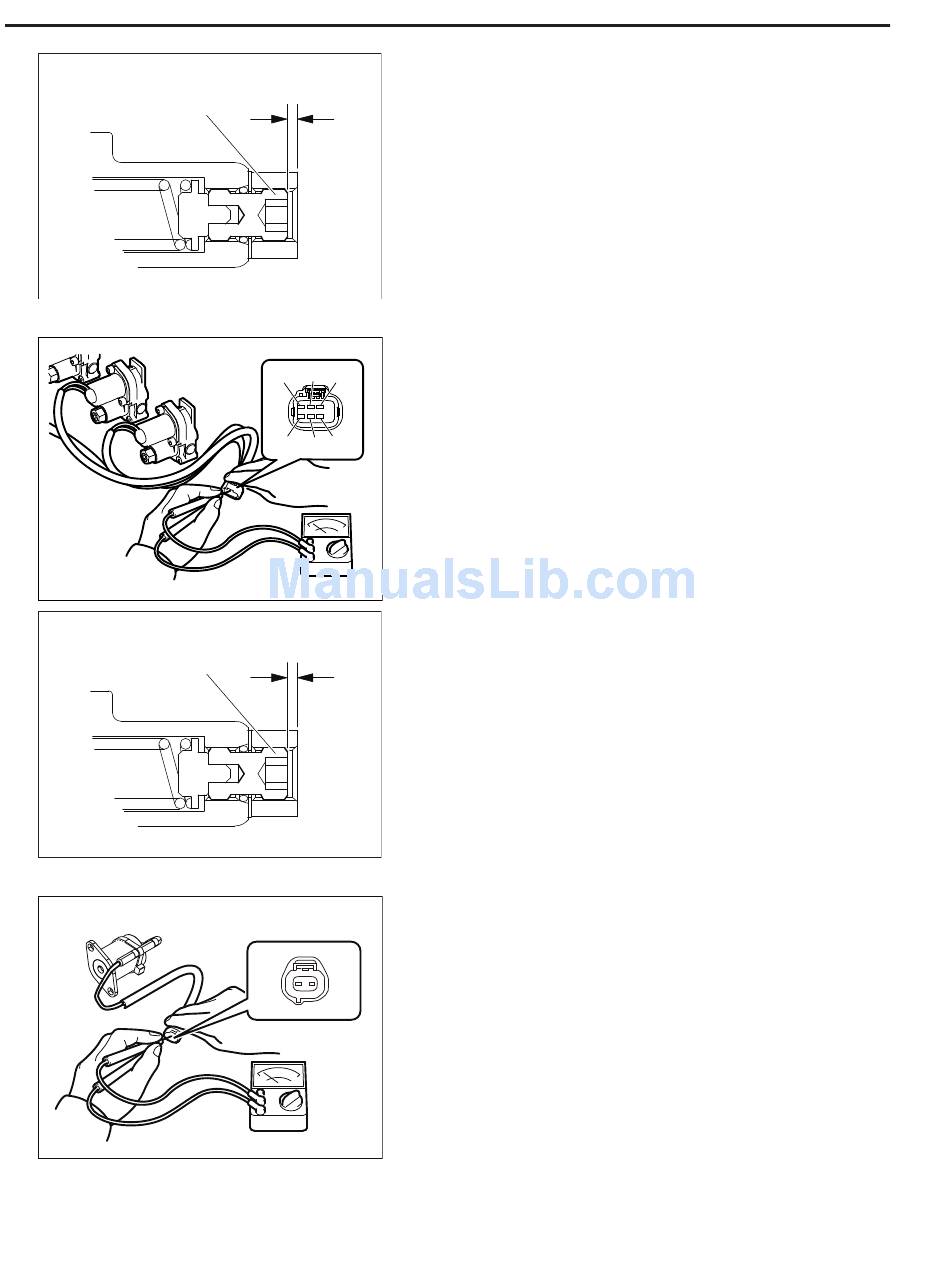

Disassembly:
Before disassembly, measure the installation position
(dimension (A)) of the material handling start timing
adjusting screw.
Reassembly:
Reassemble according to the dimension (A) meas-
ured before disassembly.
Adjustment:
After installing the control valve to the vehicle, check
whether there are any abnormalities in material hand-
ling start timing by slowly operating the lever. If you
feel any abnormalities, perform tuning with the dis-
play. (See section 18)
Inspection:
Check the proportional solenoid (b) for continuity.
Measurement terminal 1 ⇔ 5: Continuity exists.
Measurement terminal 2 ⇔ 6: Continuity exists.
Measurement terminal 3 ⇔ 7: Continuity exists.
Disassembly:
Before disassembly, measure the installation position
(dimension (A)) for the material handling start timing
adjusting screw.
Reassembly:
Reassemble according to the dimension (A) meas-
ured before disassembly.
Adjustment:
After installing the control valve to the vehicle, check
whether there are any abnormalities in material hand-
ling start timing by slowly operating the lever. If you
feel any abnormalities, perform tuning with the dis-
play. (See section 18)
Inspection:
Check the proportional reducing valve for continuity.
Measurement terminal: Continuity exists.
(Reference)
Resistance: 6.5 to 7.2 Ω (at 20 °C)
5 OIL CONTROL VALVE
