7 DISPLAY

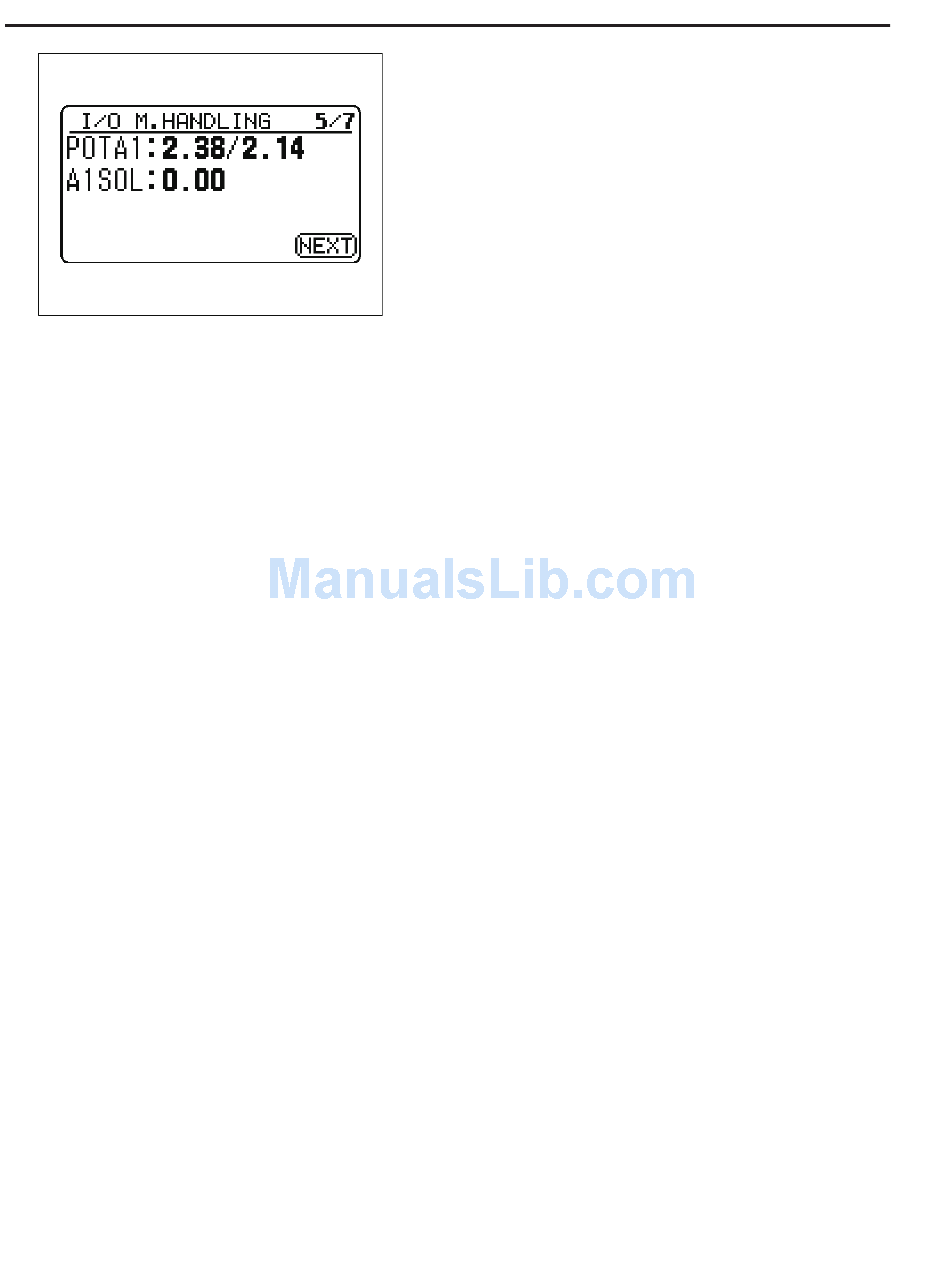

▪ "I/O M.HANDLING 5/7"
POTA1: Attachment (1) lever angle sensor (1) voltage (V) /
attachment (1) lever angle sensor (2) voltage (V)
Displays input voltage from the attachment (1) lever angle
sensor (1)/attachment (1) lever angle sensor (2) to the con-
troller.
STD lever vehicle:
POTA1: - = Always
Mini lever/Joystick lever vehicle:
Standard:
Attachment (1) lever: Backward tilt side
Attachment (1) lever angle sensor (1) voltage:
1.8 to 4.1 V
Attachment (1) lever angle sensor (2) voltage:
0.3 to 2.9 V
Attachment (1) lever: Forward tilt side
Attachment (1) lever angle sensor (1) voltage:
0.4 to 2.8 V
Attachment (1) lever angle sensor (2) voltage:
1.6 to 4.3 V
A1SOL: Attachment (1) proportional valve solenoid current
(A)
Displays output current from the controller to the attach-
ment (1) proportional valve solenoid.
STD lever vehicle:
A1SOL: - = Always
Mini lever/Joystick vehicle:
Standard when lever is operated: 0.3 to 0.85 A
Switch (4): To "I/O M.HANDLING 6/7" screen
