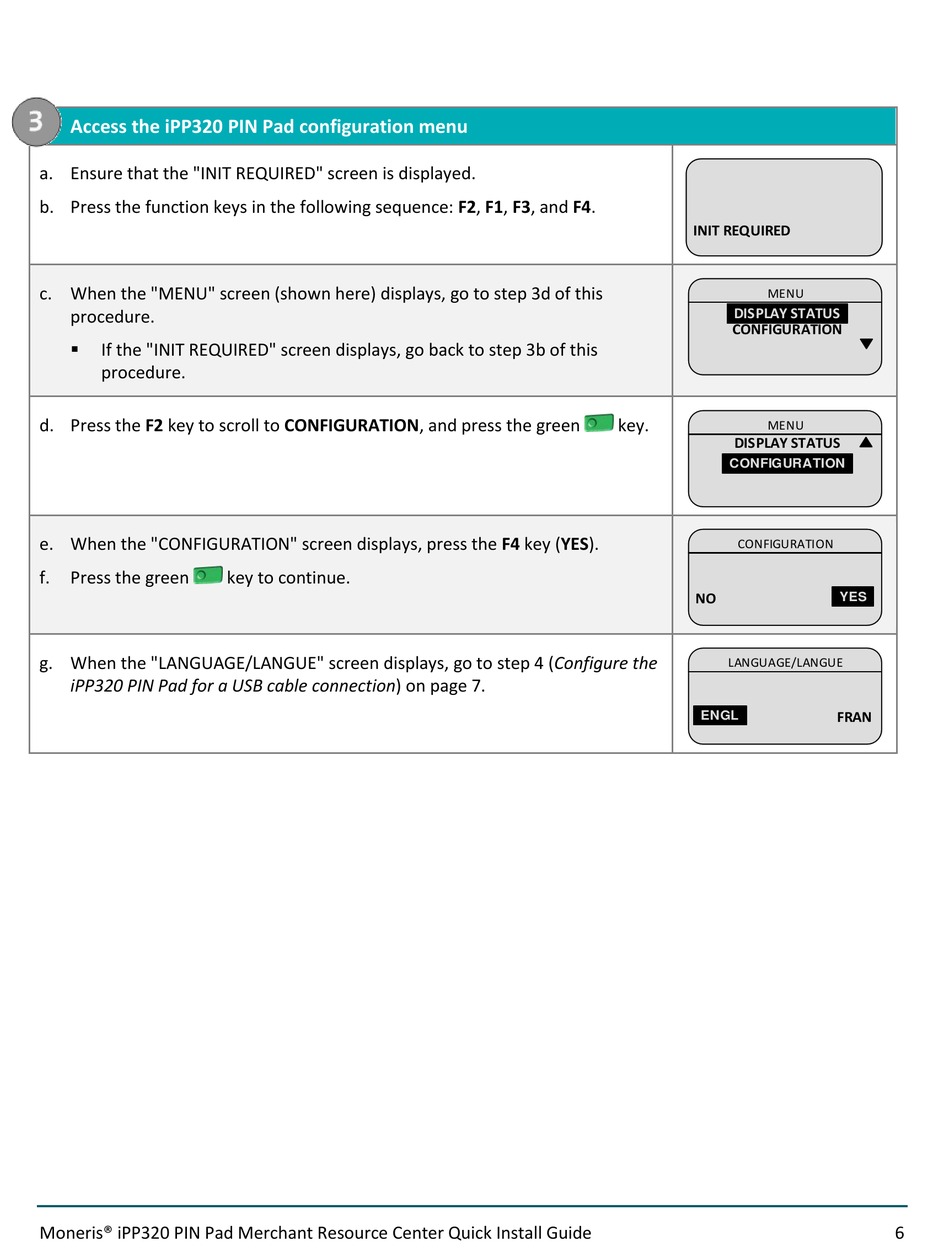

3. Access the iPP320 PIN Pad configuration menu
a. Ensure that the "INIT REQUIRED" screen is displayed.
b. Press the function keys in the following sequence: F2, F1, F3, and F4.
c. When the "MENU" screen (shown here) displays, go to step 3d of this
procedure.

If the "INIT REQUIRED" screen displays, go back to step 3b of this
procedure.
d. Press the F2 key to scroll to CONFIGURATION, and press the green
e. When the "CONFIGURATION" screen displays, press the F4 key (YES).
f. Press the green
g. When the "LANGUAGE/LANGUE" screen displays, go to step 4 (Configure the
iPP320 PIN Pad for a USB cable connection) on page 7.
Moneris® iPP320 PIN Pad Merchant Resource Center Quick Install Guide
key to continue.
INIT REQUIRED
MENU
DISPLAY STATUS
DISPLAY STATUS
CONFIGURATION
key.
MENU
DISPLAY STATUS
CONFIGURATION
CONFIGURATION
CONFIGURATION
NO
LANGUAGE/LANGUE
ENGL ENGL
YES
YES
FRAN
6
