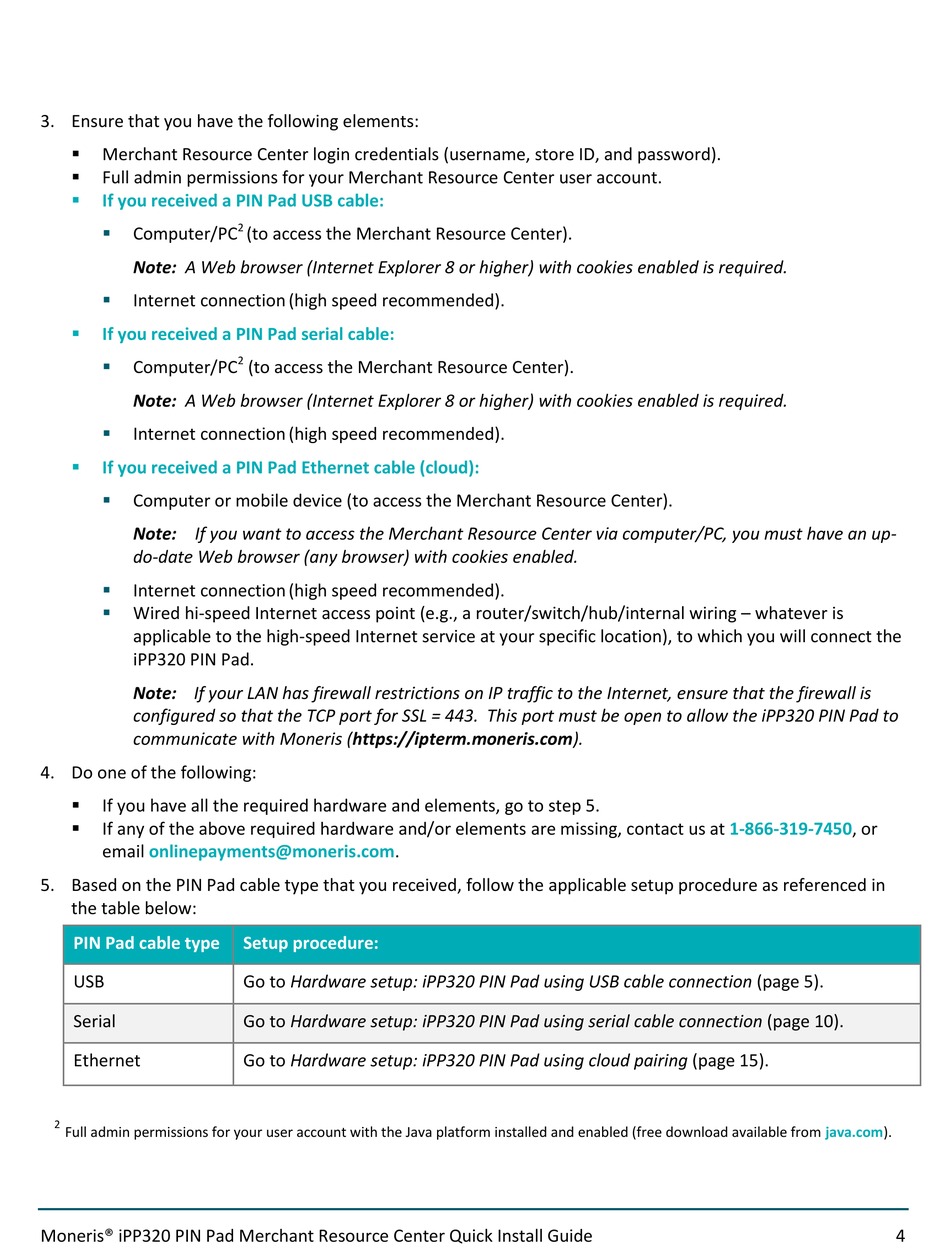

Moneris iPP320 PIN Pad Quick Install Manual page 6

3. Ensure that you have the following elements:

Merchant Resource Center login credentials (username, store ID, and password).

Full admin permissions for your Merchant Resource Center user account.

If you received a PIN Pad USB cable:

Computer/PC
Note: A Web browser (Internet Explorer 8 or higher) with cookies enabled is required.

Internet connection (high speed recommended).

If you received a PIN Pad serial cable:

Computer/PC
Note: A Web browser (Internet Explorer 8 or higher) with cookies enabled is required.

Internet connection (high speed recommended).

If you received a PIN Pad Ethernet cable (cloud):

Computer or mobile device (to access the Merchant Resource Center).
Note: If you want to access the Merchant Resource Center via computer/PC, you must have an up-
do-date Web browser (any browser) with cookies enabled.

Internet connection (high speed recommended).

Wired hi-speed Internet access point (e.g., a router/switch/hub/internal wiring – whatever is
applicable to the high-speed Internet service at your specific location), to which you will connect the
iPP320 PIN Pad.
Note: If your LAN has firewall restrictions on IP traffic to the Internet, ensure that the firewall is
configured so that the TCP port for SSL = 443. This port must be open to allow the iPP320 PIN Pad to
communicate with Moneris (https://ipterm.moneris.com).
4. Do one of the following:

If you have all the required hardware and elements, go to step 5.

If any of the above required hardware and/or elements are missing, contact us at 1-866-319-7450, or
email onlinepayments@moneris.com.
5. Based on the PIN Pad cable type that you received, follow the applicable setup procedure as referenced in
the table below:
PIN Pad cable type
USB
Serial
Ethernet
2
Full admin permissions for your user account with the Java platform installed and enabled (free download available from java.com).
Moneris® iPP320 PIN Pad Merchant Resource Center Quick Install Guide
2
(to access the Merchant Resource Center).
2
(to access the Merchant Resource Center).
Setup procedure:
Go to Hardware setup: iPP320 PIN Pad using USB cable connection (page 5).
Go to Hardware setup: iPP320 PIN Pad using serial cable connection (page 10).
Go to Hardware setup: iPP320 PIN Pad using cloud pairing (page 15).
4
