Moneris iPP320 PIN Pad Quick Install Manual page 13

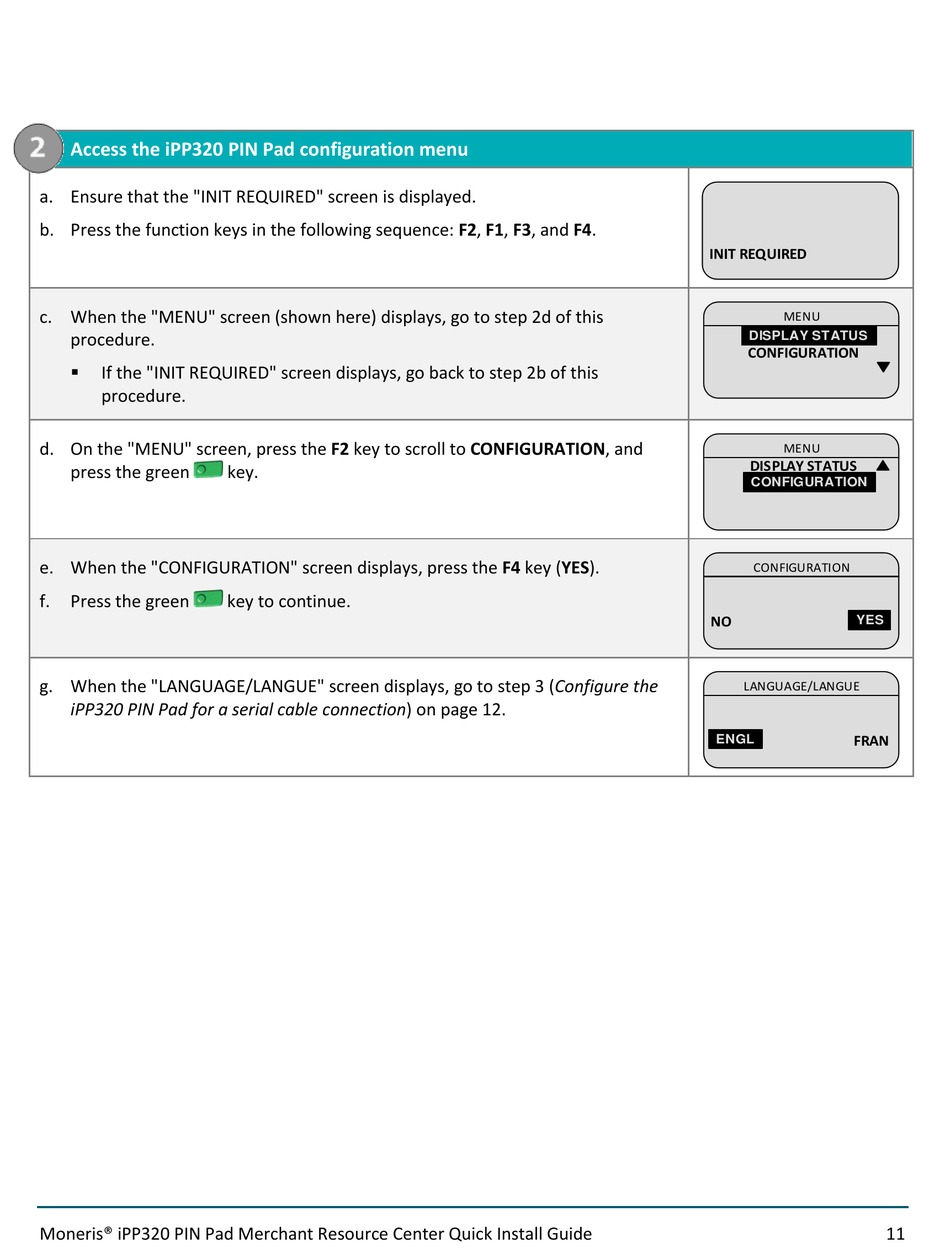

2. Access the iPP320 PIN Pad configuration menu
a. Ensure that the "INIT REQUIRED" screen is displayed.
b. Press the function keys in the following sequence: F2, F1, F3, and F4.
c. When the "MENU" screen (shown here) displays, go to step 2d of this
procedure.

If the "INIT REQUIRED" screen displays, go back to step 2b of this
procedure.
d. On the "MENU" screen, press the F2 key to scroll to CONFIGURATION, and
press the green
e. When the "CONFIGURATION" screen displays, press the F4 key (YES).
f. Press the green
g. When the "LANGUAGE/LANGUE" screen displays, go to step 3 (Configure the
iPP320 PIN Pad for a serial cable connection) on page 12.
Moneris® iPP320 PIN Pad Merchant Resource Center Quick Install Guide
key.
key to continue.
INIT REQUIRED
MENU
DISPLAY STATUS
DISPLAY STATUS
CONFIGURATION
MENU
DISPLAY STATUS
CONFIGURATION
CONFIGURATION
CONFIGURATION
NO YES YES
LANGUAGE/LANGUE
ENGL ENGL FRAN
11
