G1014ZX Inventory

The following is a description of the main compo-
nents shipped with the Model G1014ZX. Lay the
components out to inventory them.
Note: If you can't find an item on this list, check
the mounting location on the machine or examine
the packaging materials carefully. Occasionally
we pre-install certain components for shipping
purposes.
Box 1: (Figure 5)
A. Sander Unit ................................................. 1
B. Sanding Belt 6" x 48" .................................. 1
C. Dust Port 2
⁄ " (Black) .................................. 1
1
2
D. Work Table .................................................. 1
E. Miter Gauge ................................................. 1
F. Back Stop .................................................... 1
G. Rubber Feet (Cabinet) .................................4
H. Quick Release Lever Handle ...................... 1
I. Table Support Rod ...................................... 1
J.
Quick Release Lever Stud........................... 1
K. Short Lever, 4 ⁄ " Long ................................. 1
1
2
L. Idler Roller Guard ........................................ 1
M. Idler Roller ................................................... 1
N. Cast Iron Plate ............................................. 1
O. Sanding Disc 9" ........................................... 1
P. Dust Port 2" (Green) .................................... 1
Hardware & Tools (not shown)
• Hex Wrench 4mm ........................................ 1
• Hex Bolts ⁄ "-18 x
5
16
• Flat Washers ⁄ " (Sander & Cabinet) ......... 4
5
16
• Phillip Head Screws #10-24 x
(2 ⁄ " Dust Port) ............................................ 4
1
2
• Hex Nuts #10-24 (2
• Flat Washers #10 (2
• Hex Nuts ⁄ "-16 (Quick Release Lever) ...... 2
3
8
Box 2: (Figure 7)
A. Cabinet ........................................................ 1
B. Shelf ............................................................ 1
Hardware (not shown)
• Hex Nuts 5/16"-18 (Cabinet) ........................ 4
• Hex Bolts ⁄ "-18 x 1" (Cabinet) ................... 4
5
16
⁄ " (Cabinet) ......................... 4
• Flat Washers 5
16
-16-
Qty
Qty
⁄ " (Sander & Cabinet) . 4
1
2
⁄ "
1
2
⁄ " Dust Port) ................ 4
1
2
⁄ " Dust Port) ............... 4
1
2
Qty
Qty
A

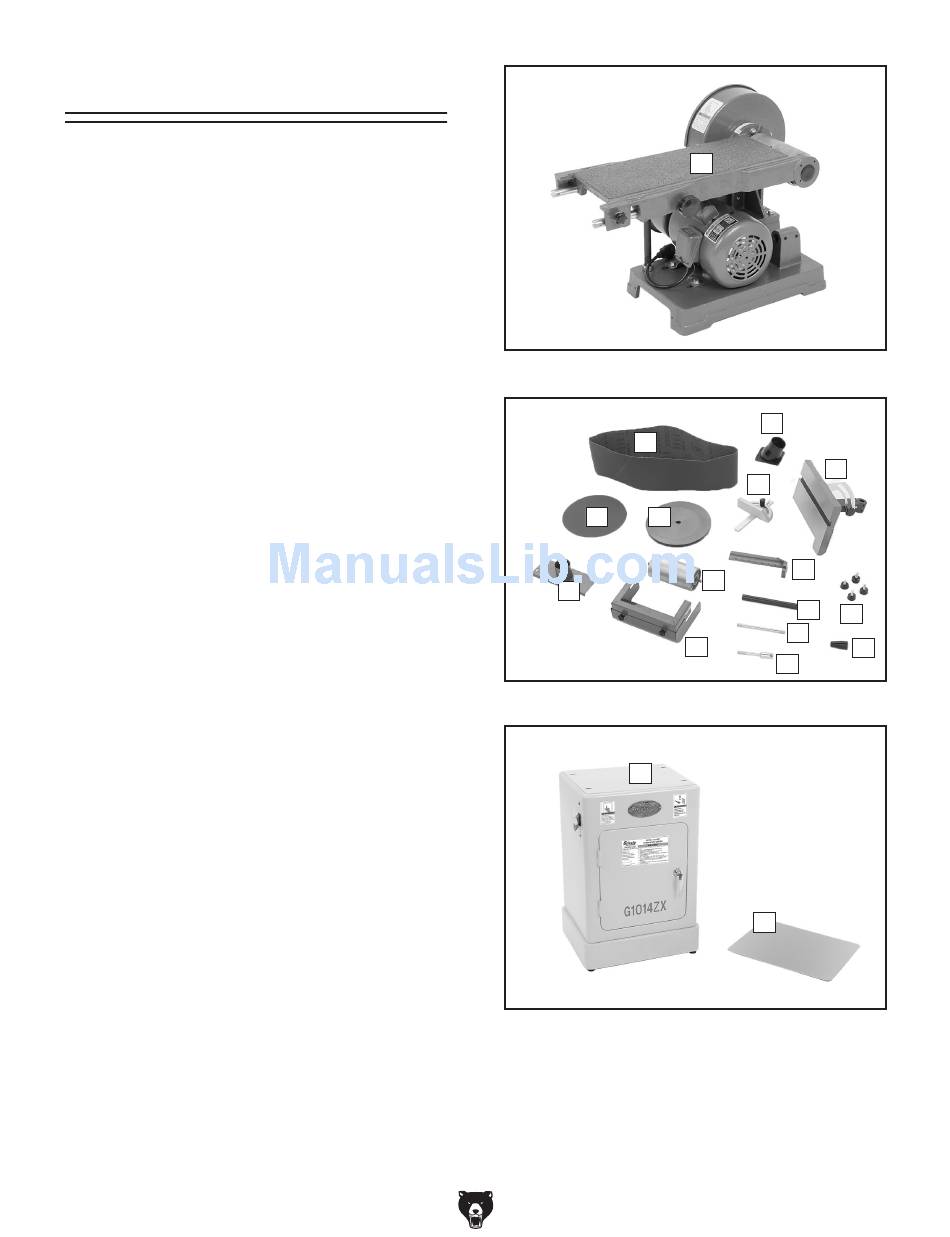

Figure 5. G1014ZX sander unit.
B
O N
M
P
L
Figure 6. G1014ZX loose inventory items.
A
Figure 7. Cabinet inventory.
Model G1014Z/G1014ZX (Mfd. Since 07/17)
C
D
E
F
I
G
J
H
K
B
