G1014ZX Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Box 1 (Figures 12–13)
A. Sander Unit ................................................. 1
B. Sanding Belt 6" x 48" .................................. 1
C. Dust Port 2
⁄ " (Black) .................................. 1
1
2
D. Work Table .................................................. 1
E. Miter Gauge ................................................. 1
F.
Back Stop .................................................... 1
G. Rubber Feet (Cabinet) .................................4
H. Quick Release Lever Handle ...................... 1
I. Table Support Rod ...................................... 1
J.
Quick Release Lever Stud 6" ...................... 1
K. Short Lever Arm .......................................... 1
L. Idler Roller Guard ........................................ 1
M. Idler Roller ................................................... 1
N. Cast Iron Plate ............................................. 1
O. Sanding Disc 9" ........................................... 1
P. Dust Port 2" (Green) .................................... 1
Hardware & Tools (not shown)
• Hex Wrench 4mm ........................................ 1
• Hex Bolts ⁄ "-18 x
5
16
• Flat Washers ⁄ " (Sander & Cabinet) ......... 4
5
16
• Phillip Head Screws 10-24 x
(2 ⁄ " Dust Port) ............................................ 4
1
2
• Hex Nuts 10-24 (2
1
• Flat Washers #10 (2
• Hex Nuts ⁄ "-16 (Quick Release Lever) ...... 2
3
8
Box 2 (Figure 14)
Q. Cabinet ........................................................ 1
R. Shelf ............................................................ 1
Hardware (not shown)
• Hex Nuts 5/16"-18 (Cabinet) ........................ 4
• Hex Bolts ⁄ "-18 x 1" (Cabinet) ................... 4
5
16
• Flat Washers ⁄ " (Cabinet) ......................... 4
5
16
• Thumb Knobs ⁄ "-20 x
1
4
• Flat Washers ⁄ " (Sander Unit) .................... 2
1
4
• Thumb Knobs M5-.8 x 10 (Roller Guard) .... 2
• Flat Washers #10 (Roller Guard) ................. 2
• Lock Washers #10 (Roller Guard) ............... 2
-18-
Qty
Qty
⁄ " (Sander & Cabinet) . 4
1
2
⁄ "
3
8
⁄ " Dust Port) .................. 4
2
⁄ " Dust Port) ............... 4
1
2
Qty
Qty
⁄ " (Sander Unit) ..... 2
1
2
A

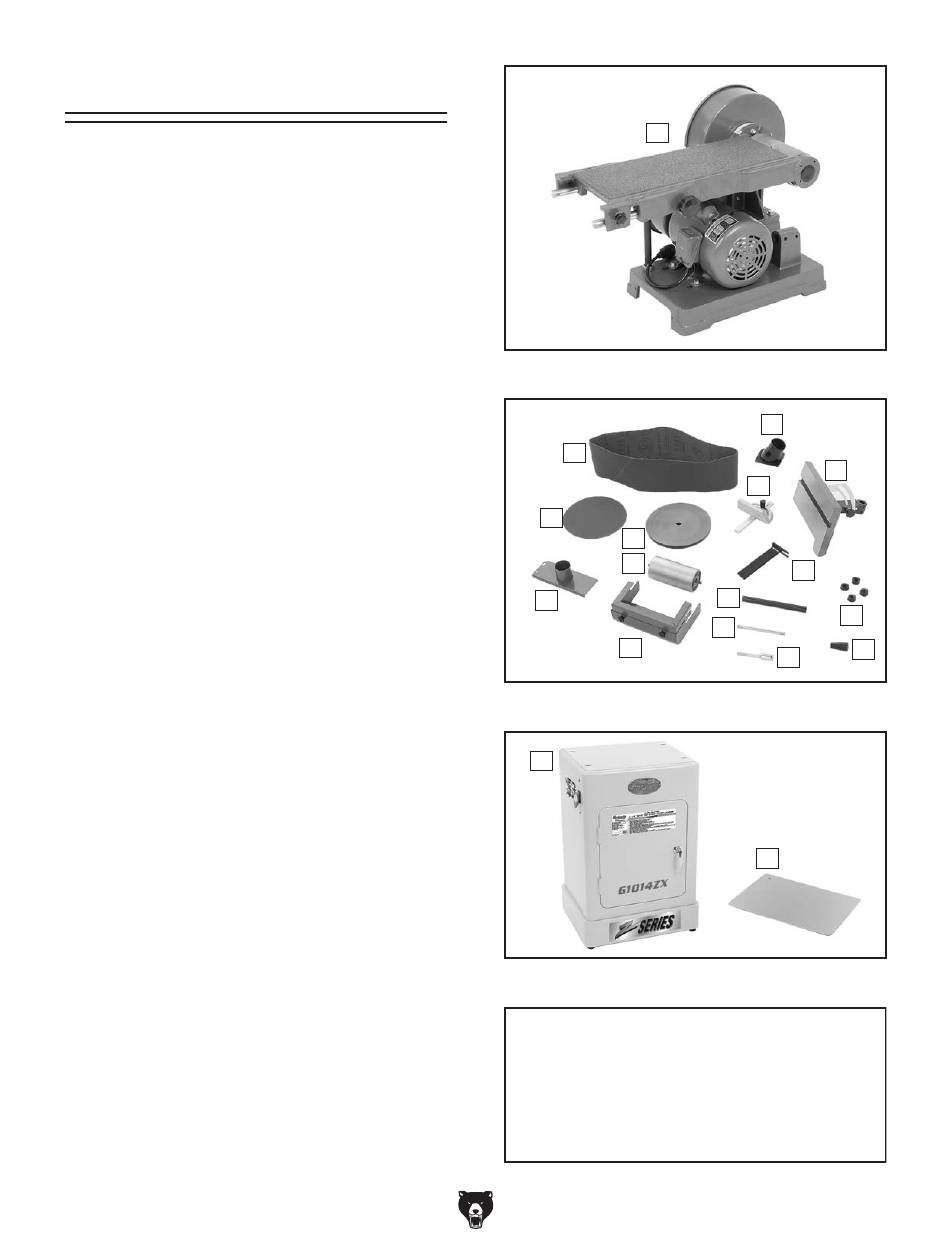

Figure 12. G1014ZX sander unit.
B
O
N
M
P
L
Figure 13. G1014ZX loose inventory items.
Q
Figure 14. Cabinet inventory.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Model G1014Z/G1014ZX (Mfd. Since 08/22)
C
D
E
F
I
G
J
H
K
R
