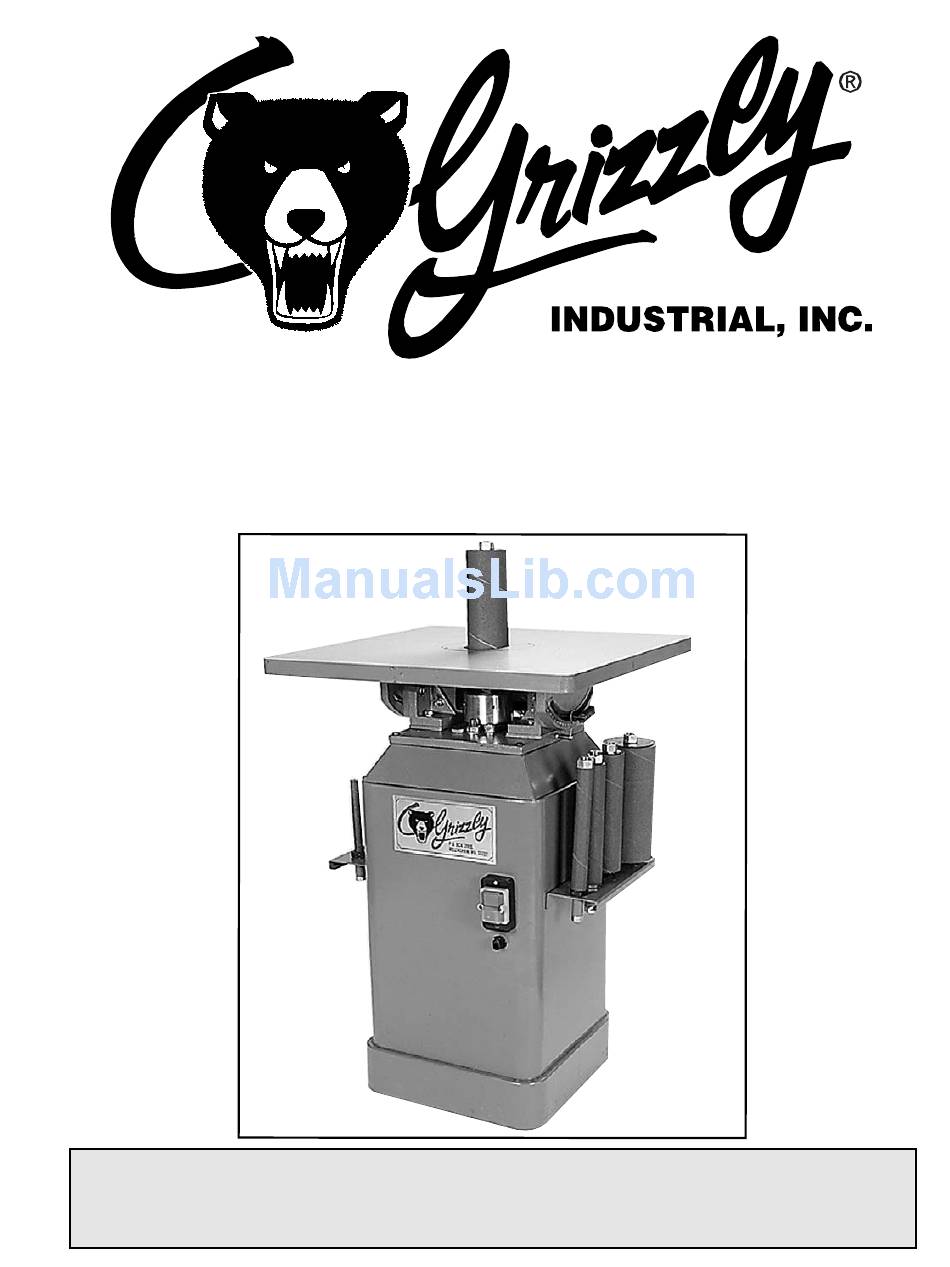

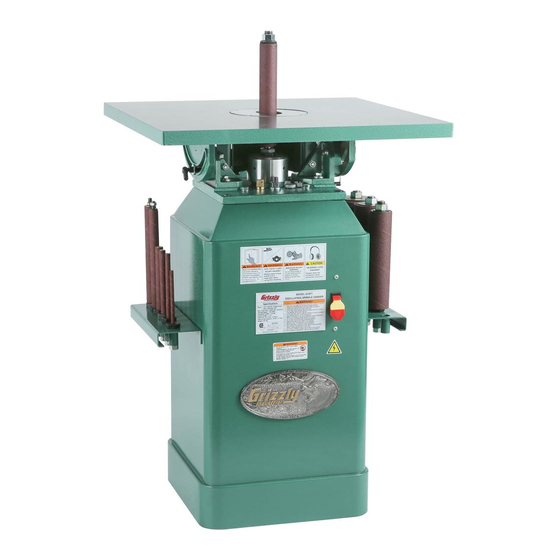

- Page 1 VERTICAL SPINDLE SANDER MODEL G1071 INSTRUCTION MANUAL COPYRIGHT © 1995 BY GRIZZLY INDUSTRIAL, INC. REG # TX 4 060 296 WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
- Page 2 - 2 -...
-
Page 3: Table Of Contents
A. LUBRICATION ...13 B. SANDING SLEEVE MAINTENANCE ...13 XIII. TROUBLESHOOTING ...14 XIV. CLOSURE...15 MACHINE DATA...16 MAIN BODY PARTS DIAGRAM...18 SPINDLE PARTS DIAGRAM ...19 PARTS LIST ...20-21 WARRANTY AND RETURNS ...22 G1071 Oscillating Spindle Sander TABLE OF CONTENTS PAGE - 1 -... -
Page 4: Introduction
Grizzly’s commitment to customer satisfaction. The Model G1071 is intended for use in a home or small professional shop. This spindle sander features a 1 HP, 110V/220V single phase motor which rotates at 1,720 RPM with 72 oscillations per minute. -
Page 5: Safety Rules For All Tools
The Model G1071 is inherently dangerous. Using the tool with respect and caution will lessen the possibility of mechanical damage or operator injury. If normal safety precau- tions are overlooked or ignored, serious personal injury may occur. This machine is specifically designed for wood sanding operations. Modifications or improper use of this tool can result in damage to the machine and possible operator injury, and will void all warranties. -
Page 6: Ii. Safety Rules For All Tools
ICATION. Never operate machinery when overly fatigued. machine if you are mentally or physi- cally fatigued. NOT KNOW OR UNDERSTAND, DO NOT OPERATE MACHINE! Ask for help first. Confusion can be dangerous. Review all safety procedures often. G1071 Oscillating Spindle Sander WORK... -
Page 7: Electrical Service Requirements
III. ELECTRICAL SERVICE REQUIREMENTS The Model G1071 has a 1 HP motor that operates at 110V/220V. It has been pre-wired for 110V, single phase operation. Please con- sult the wiring diagram for information about conversion to 220V. A. CIRCUIT LOADING The G1071 motor will safely draw about 14 amps at 110V (7A @ 220V) under load. -
Page 8: Site Planning
A. FLOOR LOAD Your G1071 Sander represents a large weight load in a small footprint. Most commercial floors are suitable for the Model G1071. Some residential floors may require additional build up to support both machine and operator. B. WORKING CLEARANCES... -
Page 9: Piece Inventory
Please exam- ine the edges of all die-cut metal parts before handling them. G1071 Oscillating Spindle Sander VII. CLEAN UP The table is coated with a waxy oil to protect it from corrosion during shipment. Remove the protective coating with common paint thinner (mineral spirits) and paper towels. -
Page 10: Assembly
- 8 - The Model G1071 comes equipped with a wrench for spindle removal. It should be kept close to the machine for easy access. The... -
Page 11: Inserts
C. TABLE INSERTS The three inserts included with the Model G1071 are sized to provide free sanding spin- dle movement while minimizing the gap between the abrasive surface and the table top. The holes in the inserts are shaped to... -
Page 12: Ix. Table Angle
You can then tilt the table back to 20°. Don’t forget to re-cali- brate the stop bolt when you put it back Dust Port Figure 4 Squaring the table to the spindle. G1071 Oscillating Spindle Sander... -
Page 13: Sander Safety
When the guidelines illustrated in this manual are followed, the Model G1071 is a safe and enjoyable tool to use, even for the novice MAINTAIN A SECURE GRIP ON THE WORKPIECE. The spindle rotates at more than 1700 R.P.M. If control is lost, the workpiece could be shot from the machine at extreme speed. -
Page 14: Operations
When you’ve marked your material, turn the Model G1071 on again. Let it reach its work- ing speed and slide the test piece against the sanding surface. The sander requires little pressure between the spindle and workpiece. -
Page 15: Maintenance
Your Model G1071 Spindle Sander requires very little maintenance. Cleaning will increase the machine’s durability and efficiency by removing grime which can gum up moving parts. If you find that the machine sands less efficiently than usual, inspect the sanding... -
Page 16: Troubleshooting
Install correct fuses or circuit breakers. Reduce load on motor. much Feed workpiece slower. Loosen the 4 bolts that mount the tables to the trunnions. Shift the table slightly to eliminate contact. Tighten upper sanding sleeve nut. Replace sleeve. G1071 Oscillating Spindle Sander... -
Page 17: Closure
Washington location using the address in the Introduction. The specifications, drawings, and photographs illustrated in this manual represent the Model G1071 as supplied when the manual was prepared. However, due to Grizzly’s policy of continuous improvement, changes may be made at any time with no obligation on the part of Grizzly. -
Page 18: Machine Data
Specifications, while deemed accurate, are not guaranteed. REVISED 2/99 SHEET ⁄ " x 25 ⁄ " ⁄ " ⁄ ", ⁄ ", ⁄ ", ⁄ ", ⁄ ",1", 1 ⁄ ", 2", 3", 4" ⁄ ⁄ G1071 Oscillating Spindle Sander... - Page 19 NOTES G1071 Oscillating Spindle Sander - 17 -...
-
Page 20: Main Body Parts Diagram
MAIN BODY PARTS DIAGRAM - 18 - G1071 Oscillating Spindle Sander... -
Page 21: Spindle Parts Diagram
SPINDLE PARTS DIAGRAM G1071 Oscillating Spindle Sander - 19 -... -
Page 22: Parts List
OIL BREATHER KNOB GASKET SWITCH CORD, SWITCH TO MOTOR POWER CORD STRAIN RELIEF MOTOR SPINDLE WRENCH ® ALLEN WRENCH 2 MM HEX BOLT " - 16 x 1 " HEX BOLT " - 16 x 1" G1071 Oscillating Spindle Sander... -
Page 23: Parts List
CAP SCREW 5 - 40 x 099 PRP05M ROLL PIN 5 x 30mm 100 PK12M KEY 5 x 5 x 30mm 101 PSS08 SETSCREW G1071 Oscillating Spindle Sander REF# PART# 102 P1126153 " 103 PN04 " - 20 x "... -
Page 24: Warranty And Returns
WARRANTY AND RETURNS LIMITED WARRANTY Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 25 Do you think your purchase represents good value? ___Yes Would you recommend Grizzly Imports to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than three times. ___Yes Comments:_________________________________________________...
- Page 26 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
