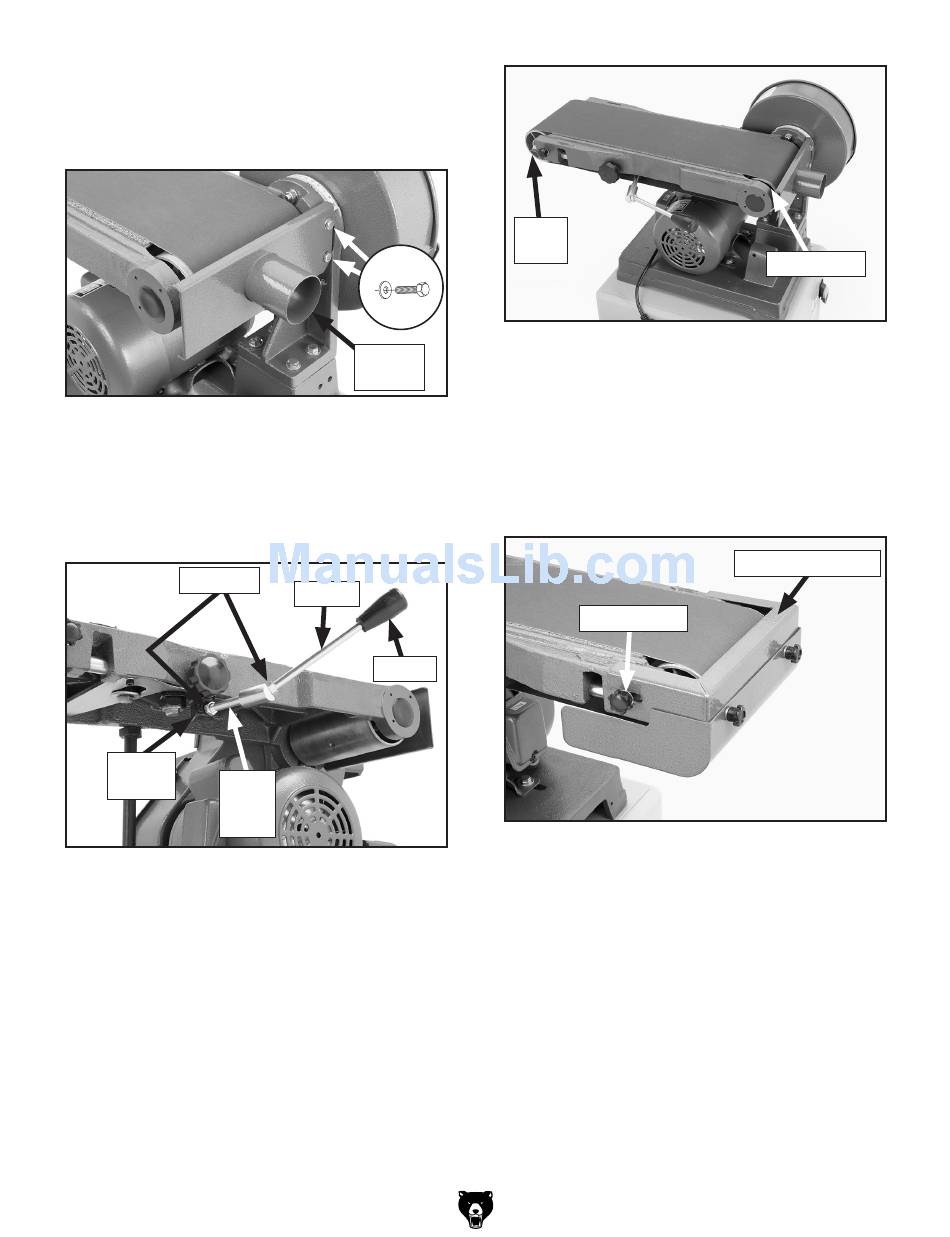

18. Install the 2" dust port onto the back of the
sanding belt frame with the pre-installed
20 x ⁄ " hex bolts and flat washers, as shown
1
2
in Figure 31.
Figure 31. 2" dust port installed.
19. Assemble the quick release lever, as shown
in Figure 32, using the handle, 6" quick
release lever stud, short lever arm, and
hex nuts, thread the assembly into the rocker
arm, then tighten the hex nuts.
Hex Nuts
Rocker
Short
Arm
Lever
Arm
Figure 32. Quick release lever installed.
20. Move the quick release lever toward the
motor, slide the sanding belt over the lever
and onto the idler roller and drive rollers, then
center the belt on the rollers (see Figure 33).
Model G1014Z/G1014ZX (Mfd. Since 07/17)
1 ⁄ "-
4
2" Dust
Port
⁄ "-16
3
8
6" Stud
Handle
Idler
Roller
Figure 33. Belt installed onto idler and drive
rollers.
21. Push the lever toward the motor to tension
the sanding belt.
22. Loosen the thumb knobs behind the idler
roller, and install the idler roller assembly
(Figure 34).
Thumb Knob
Figure 34. Idler roller guard installed.
Drive Roller
Idler Roller Guard
