Grizzly G1014Z Owner's Manual page 24

x4

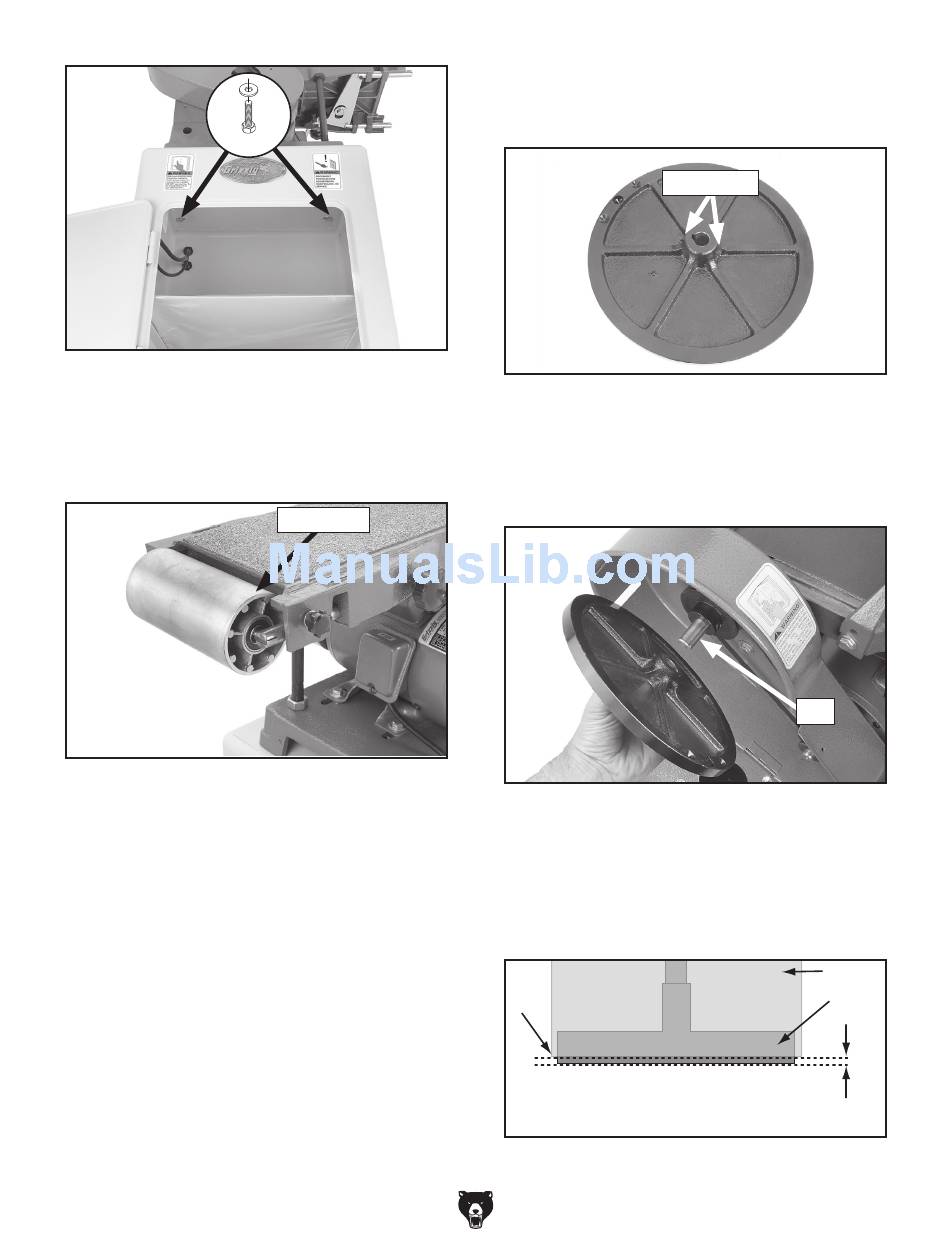

Figure 19. G1014ZX sander fastened to cabinet
(two of four hex bolts shown).
3. Slide the flat ends of the idler roller into
the slots on the roller adjustment bars (see
Figure 20).
Figure 20. Idler roller installed.
-22-
Idler Roller
4.
Use the 4mm hex wrench to back the shaft
set screws on the cast iron plate out of the
shaft hole and keyway (Figure 21).
Set Screws
Figure 21. Set screw locations on sanding disc
plate.
5. Align the keyway on the plate with the drive
shaft key, then slide the plate onto the shaft,
as shown in Figure 22.
Figure 22. Installing plate onto drive shaft.
6.
Adjust the cast iron plate so it protrudes
slightly ( ⁄ "- ⁄ ") beyond the curved lip of
1 1
16 8
the metal cover on both sides, as illustrated
in Figure 23, to avoid the possibility of
workpieces hitting the cover during sanding
operations.
Lip
(Top View)
Figure 23. Gap between plate and cover.
Model G1014Z/G1014ZX (Mfd. Since 07/17)
Key
Cover
Plate
/ "- / "
1 1
16 8
