Chapter 2: Jumpers and Connectors

Internal Connectors

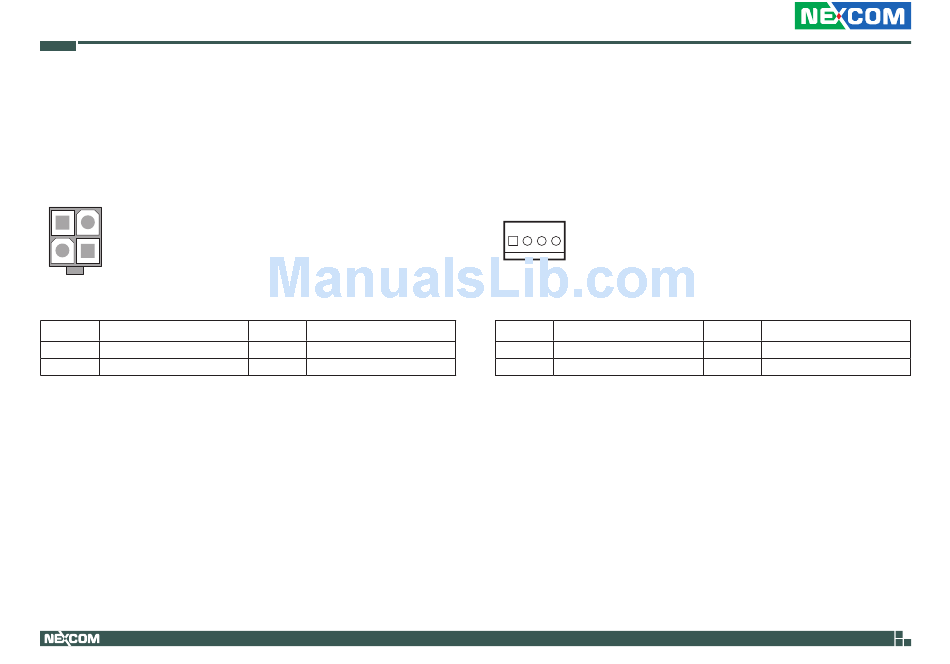

Power Input Connector

Connector type: 2x2 4-pin header, 4.2mm pitch
Connector location: CON1
1 2
3 4
Pin Definition
1 GND
3 +12V
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 +12V

CPU Fan Connector

Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: CFAN1
1 4
Pin Definition
1 GND
3 FAN TAC
14
Pin Definition
2 +12V
4 FAN CTL
