Chapter 2: Jumpers and Connectors

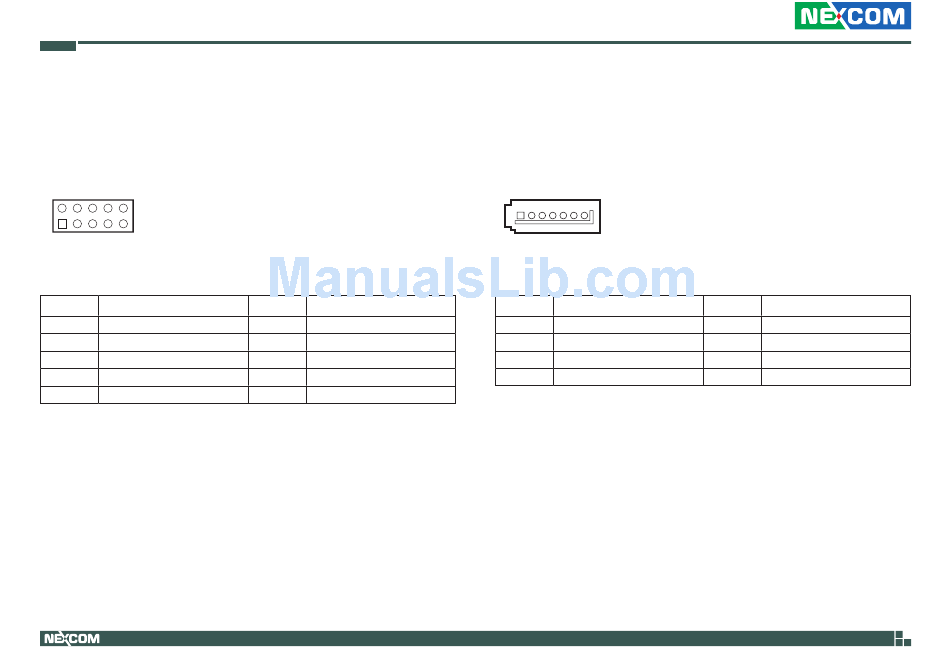

HDA Pin Header

Connector type: 2x5 10-pin header, 2.54mm pitch
Connector location: JHDA1
2 10
1 9
Pin Definition
1 S_HDA_SDO
3 S_HDA_RST#
5 S_HDA_SYNC
7 S_HDA_SDI0
9 S_HDA_BCLK
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VCC5
4 GND
6 +12V
8 S_HDA_SDI1
10 NC

SATA1 Connector

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA1
1 7
Pin Definition
1 SATA2_SEL
3 R_SATA_TXN2
5 B_SATA_RXN2
7 GND
20
Pin Definition
2 R_SATA_TXP2
4 GND
6 B_SATA_RXP2
