Chapter 2: Jumpers and Connectors

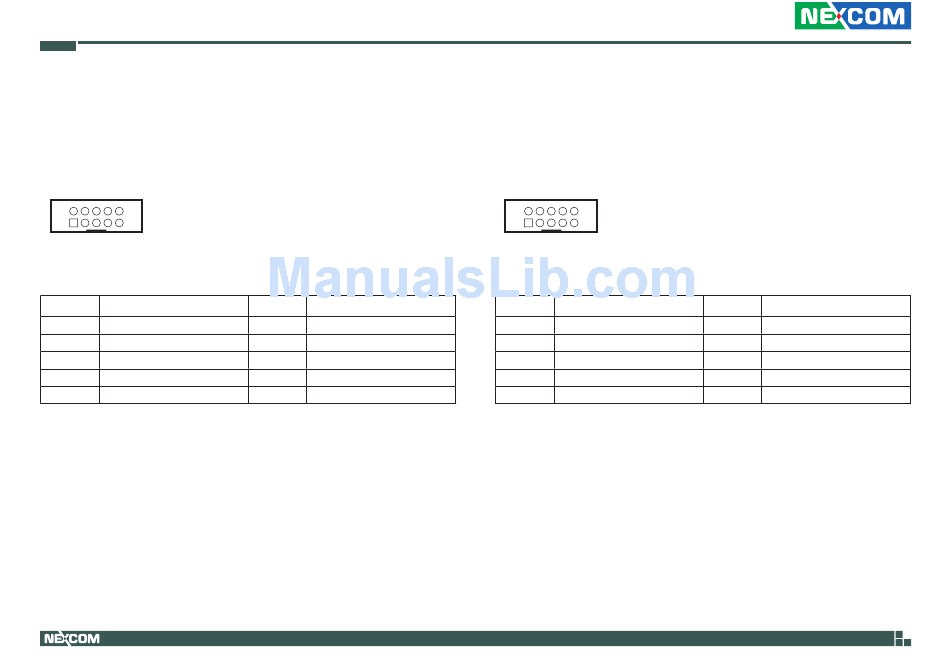

COM2 RS232/422/485 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: COM2
10
2
1 9
Pin Definition
1 COM_DCD#2
3 COM_TXD2
5 GND
7 COM_RTS#2
9 COM_RI#2_con
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 COM_RXD2
4 COM_DTR#2
6 COM_DSR#2
8 COM_CTS#2
10 GND

COM3 RS232 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: COM3
10
2
1 9
Pin Definition
1 COM_DCD#3
3 COM_TXD3
5 GND
7 COM_RTS#3
9 COM_RI#3
17
Pin Definition
2 COM_RXD3
4 COM_DTR#3
6 COM_DSR#3
8 COM_CTS#3
10 GND
