Chapter 2: Jumpers and Connectors

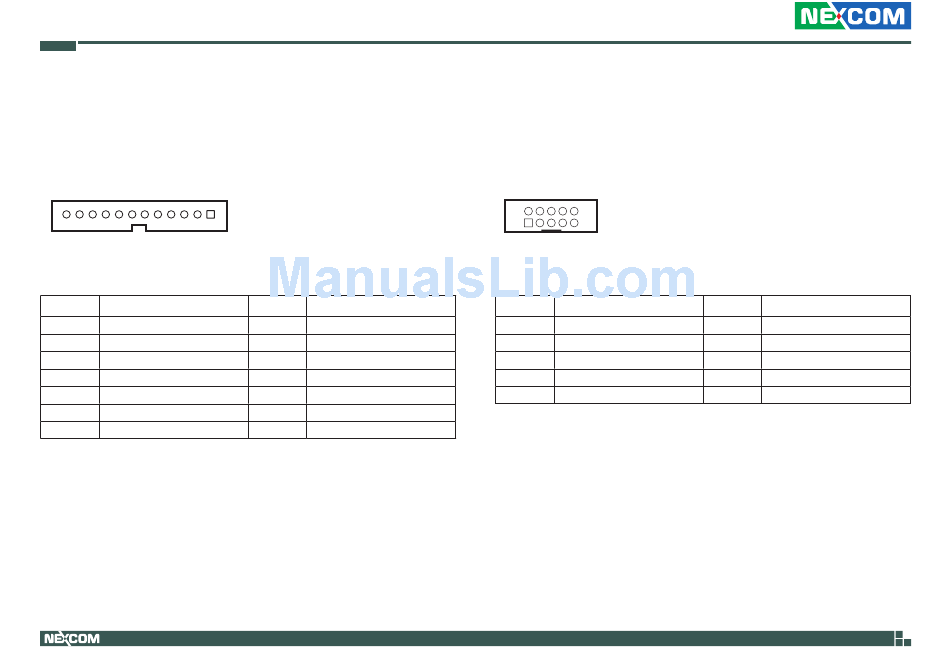

Debug Port

Connector type: 1x12 12-pin header, 1.0mm pitch
Connector location: JDB1
12
Pin Definition
1 LPC_SERIRQ
3 GND
5 CLK_PCI_P80
7 LPC_AD3
9 LPC_AD1
11 VCC3
MH1 GND
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
1
Pin Definition
2 NC
4 RST_SIO_N
6 LPC_FRAME#
8 LPC_AD2
10 LPC_AD0
12 VCC3
MH2 GND

COM1 RS232 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: COM1
10
2
1 9
Pin Definition
1 COM_DCD#1
3 COM_TXD1
5 GND
7 COM_RTS#1
9 COM_RI#1
16
Pin Definition
2 COM_RXD1
4 COM_DTR#1
6 COM_DSR#1
8 COM_CTS#1
10 GND
