Chapter 2: Jumpers and Connectors

Internal Connectors

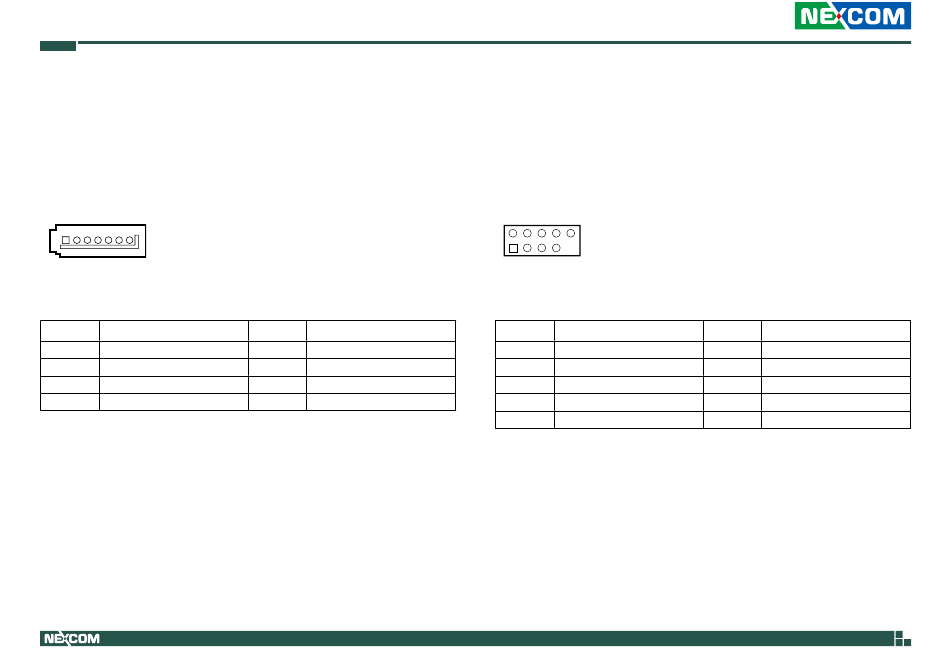

SATA Connectors

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA1 and SATA2
1 7
Pin Definition
1 GND
3 TXN0
5 RXN0
7 GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 TXP0
4 GND
6 RXP0

USB 2.0 Headers

Connector type: 2x5 10-pin header
Connector location: USB1 and USB2
2 10
1
Pin Definition
1 USB_PWR
3 -A
5 +A
7 GND
19
Pin Definition
2 USB_PWR
4 -B
6 +B
8 GND
10 DUMMY
