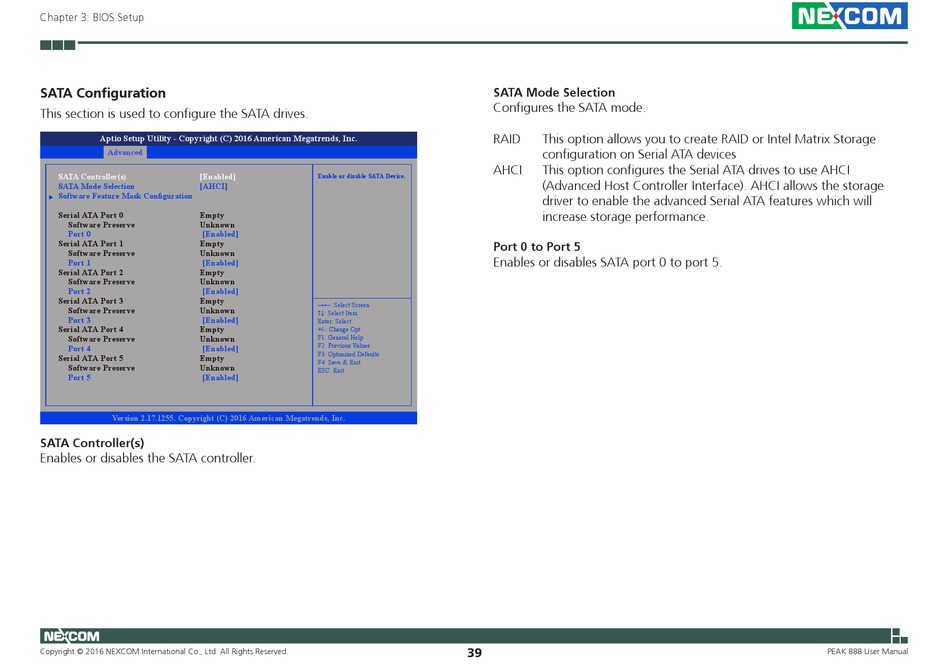

Chapter 3: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.
Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc.
Advanced
SATA Controller(s) [Enabled]
SATA Mode Selection [AHCI]
Software Feature Mask Configuration

Serial ATA Port 0 Empty
Software Preserve Unknown
Port 0 [Enabled]
Serial ATA Port 1 Empty
Software Preserve Unknown
Port 1 [Enabled]
Serial ATA Port 2 Empty
Software Preserve Unknown
Port 2 [Enabled]
Serial ATA Port 3 Empty
Software Preserve Unknown
Port 3 [Enabled]
Serial ATA Port 4 Empty
Software Preserve Unknown
Port 4 [Enabled]
Serial ATA Port 5 Empty
Software Preserve Unknown
Port 5 [Enabled]
Version 2.17.1255. Copyright (C) 2016 American Megatrends, Inc.
SATA Controller(s)
Enables or disables the SATA controller.
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
SATA Mode Selection
Configures the SATA mode.
RAID
AHCI
Enable or disable SATA Device.
Port 0 to Port 5
Enables or disables SATA port 0 to port 5.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
39
This option allows you to create RAID or Intel Matrix Storage
configuration on Serial ATA devices
This option configures the Serial ATA drives to use AHCI
(Advanced Host Controller Interface). AHCI allows the storage
driver to enable the advanced Serial ATA features which will
increase storage performance.
PEAK 888 User Manual
