Chapter 2: Jumpers and Connectors

Internal Connectors

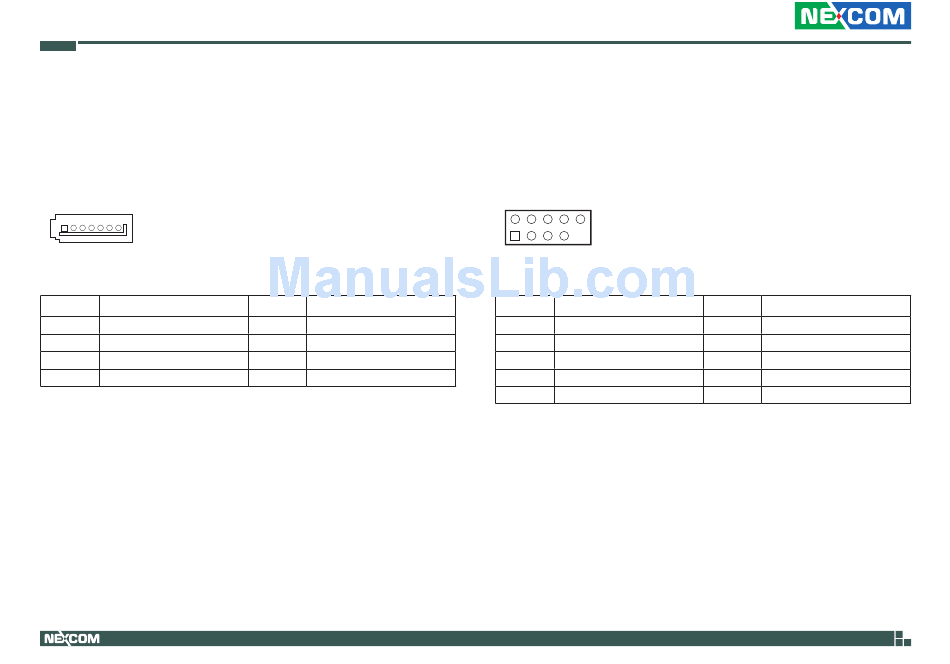

SATA 3.0 Connectors

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: CN7, CN8, CN9, CN10, CN11, CN12
1 7
Pin Definition
1 GND
3 SATA_TX_N
5 SATA_RX_P
7 GND
Copyright © 2014 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 SATA_TX_P
4 GND
6 SATA_RX_N

USB Pin Headers

Connector type: 2x5 10-pin header
Connector location: JUSB1 (USB10, USB11), JUSB2 (USB8, USB9)
2 10
1
Pin Definition
1 5VDUAL
3 DATA10/8_N
5 DATA10/8_P
7 GND
15
Pin Definition
2 5VDUAL
4 DATA11/9_N
6 DATA11/9_P
8 GND
10 NC
