Once the fuse box is out, you will see a holder inside containing two fuses. Pull the fuse
7
holder out of the box (see Figure 5.3).
It is possible that only one of the fuses may have blown. However, Molecular Devices
8
recommends that you replace both fuses to ensure continued proper operation. Pull
both fuses out of the holder and discard them.
Insert new SLOWBLOW-rated fuses into the fuse holder. Either end of the fuse may
9
be forward.
Insert the fuse holder into the fuse box, making sure that the fuses face toward the right
10
(toward the tongue on the cover) as you insert it. Slide the fuse holder all the way into
the box.
SpectraMax M2 & SpectraMax M2e Multi-mode Plate Readers User Guide — 0112-0102 Rev. D

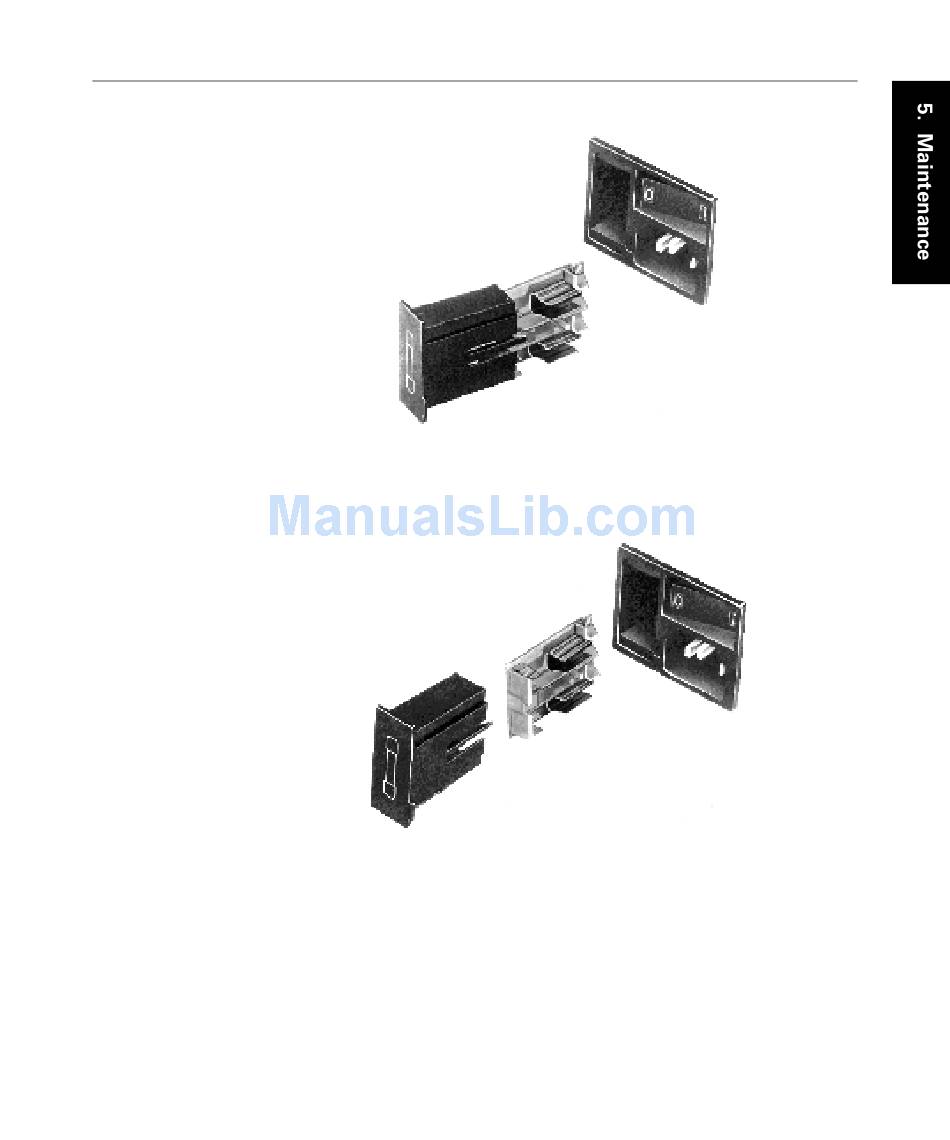

Figure 5.2: The fuse box and holder (with fuses), removed from instrument.
Figure 5.3: The fuse holder (with fuses), removed from the fuse box.
5.6. Changing the Fuses
37
