3.4.

REMOVING THE DRAWER ADAPTER

If the adapter is in the drawer and you are either reading from the bottom
(SpectraMax M2
plates, you need to remove the adapter.
Incorrect insertion or removal of the adapter may cause damage to the microplate drawer
of the SpectraMax M2 or SpectraMax M2
Power on the instrument using the switch on the back panel.
1
Press the
2
in SoftMax Pro software.
Remove the adapter plate.
3
SpectraMax M2 & SpectraMax M2e Multi-mode Plate Readers Operator's Manual — 0112-0115 Rev. D

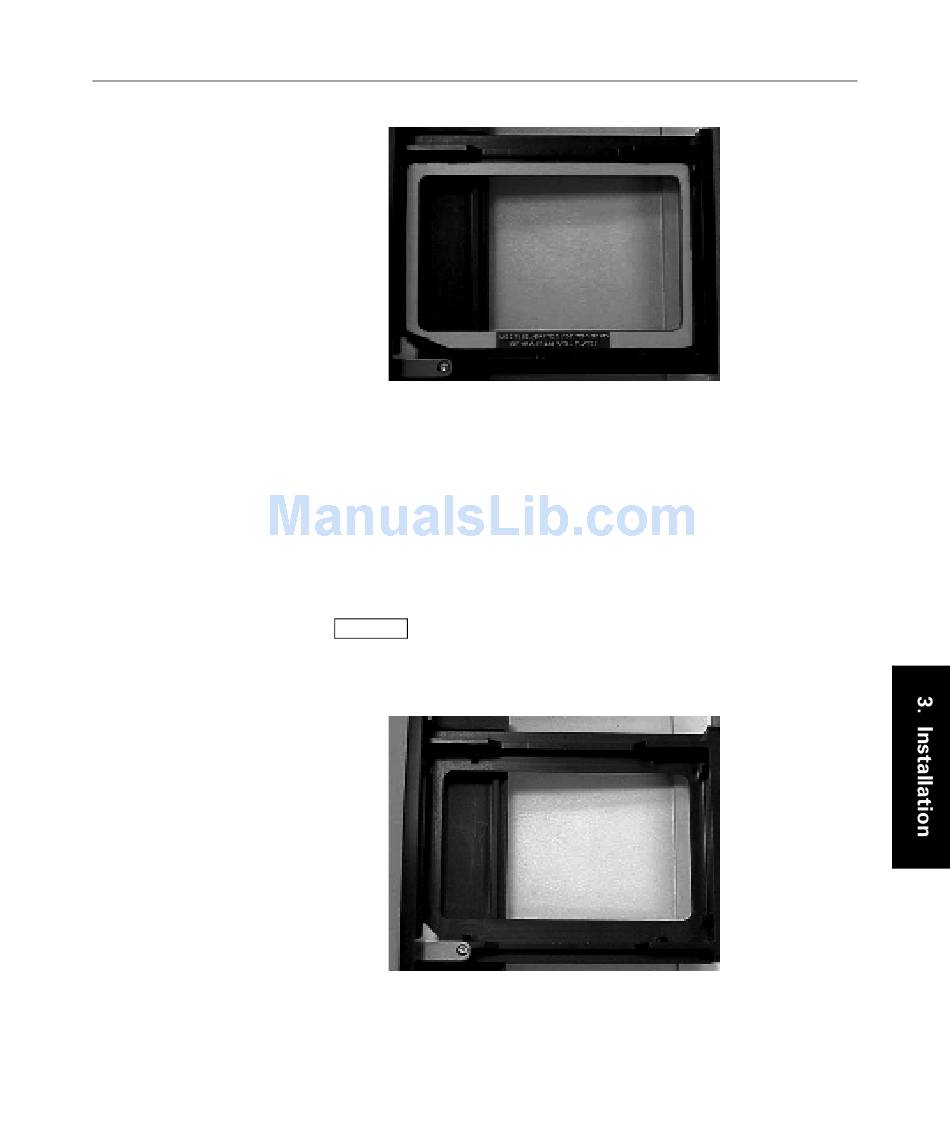

Figure 3.1: Adapter inserted in microplate drawer.
e
only) or using "high profile" (6-well, 12-well, 24-well, or 48-well)
button on the front panel or activate the drawer open command
DRAWER
Figure 3.2: Microplate drawer without adapter.
3.4. Removing the Drawer Adapter
e
.
23
