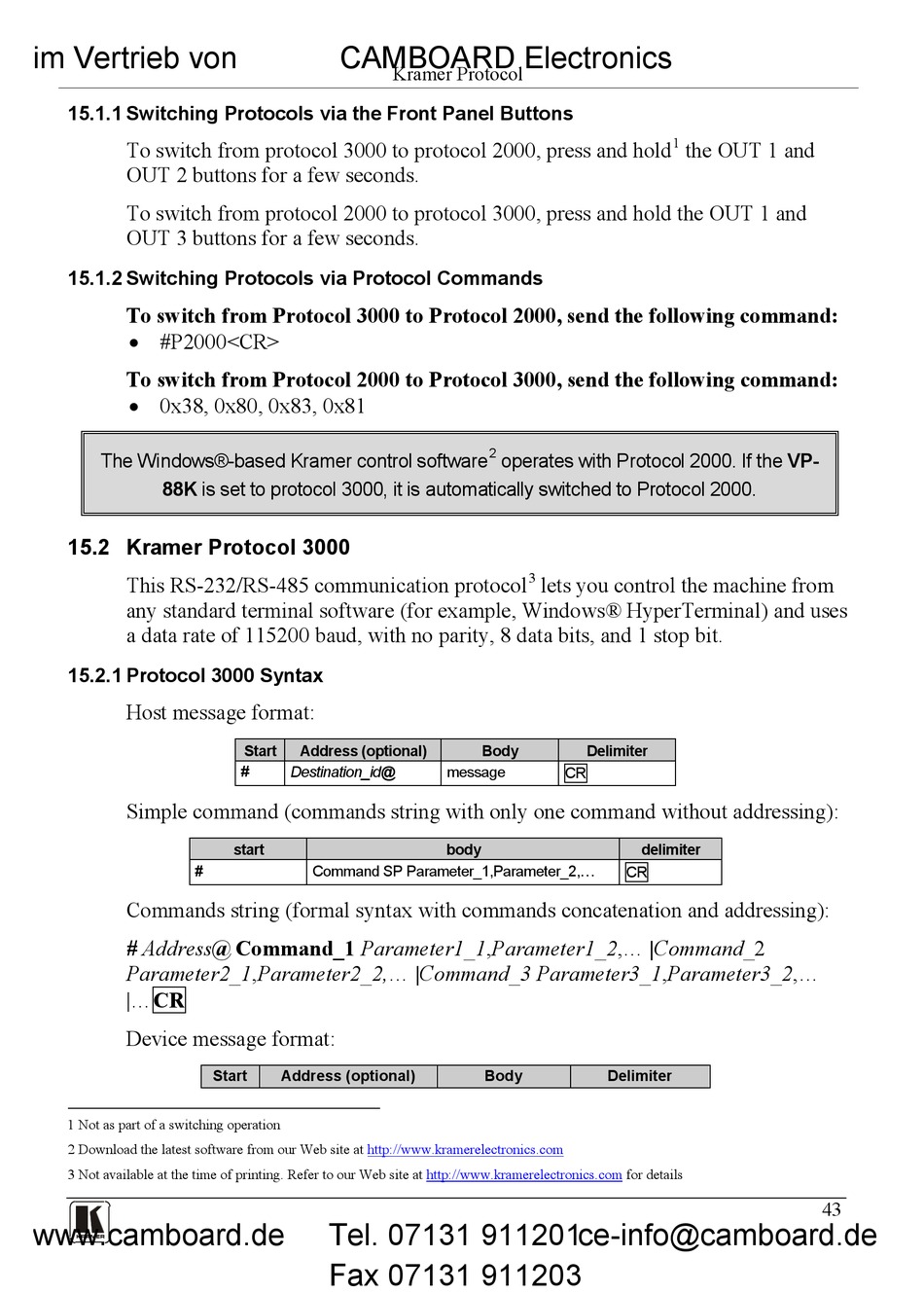

15.1.1 Switching Protocols via the Front Panel Buttons

To switch from protocol 3000 to protocol 2000, press and hold
OUT 2 buttons for a few seconds.
To switch from protocol 2000 to protocol 3000, press and hold the OUT 1 and
OUT 3 buttons for a few seconds.

15.1.2 Switching Protocols via Protocol Commands

To switch from Protocol 3000 to Protocol 2000, send the following command:
• #P2000<CR>
To switch from Protocol 2000 to Protocol 3000, send the following command:
• 0x38, 0x80, 0x83, 0x81
The Windows®-based Kramer control software
88K is set to protocol 3000, it is automatically switched to Protocol 2000.

15.2 Kramer Protocol 3000

This RS-232/RS-485 communication protocol
any standard terminal software (for example, Windows® HyperTerminal) and uses
a data rate of 115200 baud, with no parity, 8 data bits, and 1 stop bit.

15.2.1 Protocol 3000 Syntax

Host message format:
Simple command (commands string with only one command without addressing):
#
Commands string (formal syntax with commands concatenation and addressing):
# Address@ Command_1 Parameter1_1,Parameter1_2,... |Command_2
Parameter2_1,Parameter2_2,... |Command_3 Parameter3_1,Parameter3_2,...
|...CR
