In the VIDEO mode, the display shows the video signal configuration. In the
AUDIO mode, the display shows the audio signal configuration. In the AFV mode
(see Section 7.5.1

7.4.3 Status Display During Audio Gain Level Setting

During audio gain level setting, the Status display indicates:
Whether an INPUT or OUTPUT is selected (in this example, OUTPUT)

Which channel number is selected (in this example, 3)

The current gain setting in 0.5dB increments (in this example, -4.5). The

0.5dB is indicated by the period following the 4.
To set the audio gain levels, see
7.5 Choosing the Audio-Follow-Video or Breakaway Option
You can configure stereo audio signal switching in one of two ways:
• Audio-follow-video (AFV), in which all operations relate to both the video and
the audio channels (see
• Breakaway, in which video and audio channels switch independently (see
Section 7.5.2
7.5.1 Setting the Audio-Follow-Video Option
To set the Audio-follow-video (AFV) option, press the AFV button. One of the
following occurs:
• If the AUDIO and VIDEO configurations are the same, then the AFV button
lights. The audio follows the video
www.camboard.de
CAMBOARD Electronics
Operating the VP-88K

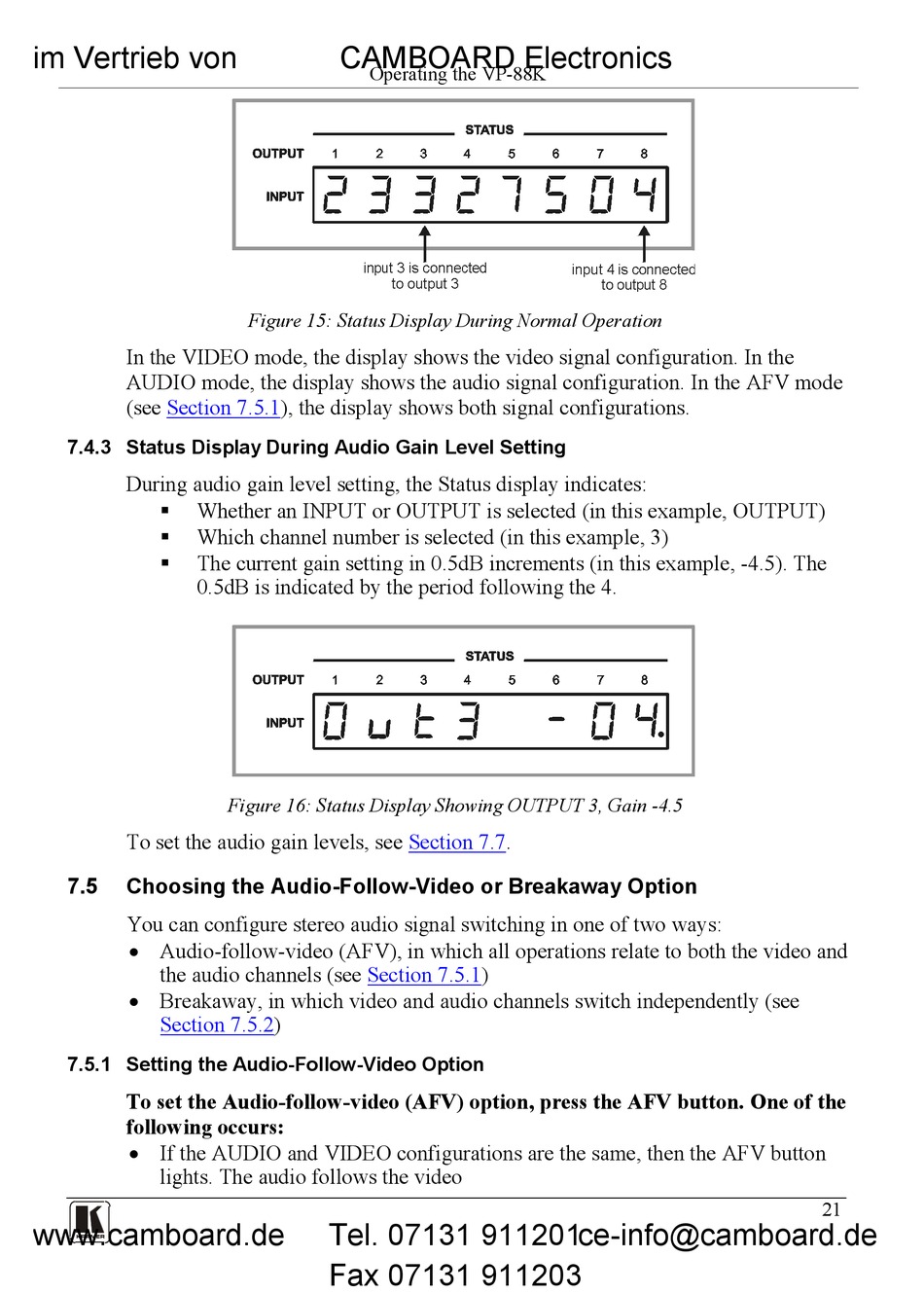

Figure 15: Status Display During Normal Operation

), the display shows both signal configurations.

Figure 16: Status Display Showing OUTPUT 3, Gain -4.5

Section 7.5.1
)
Tel. 07131 911201
Fax 07131 911203
Section 7.7 .
)
