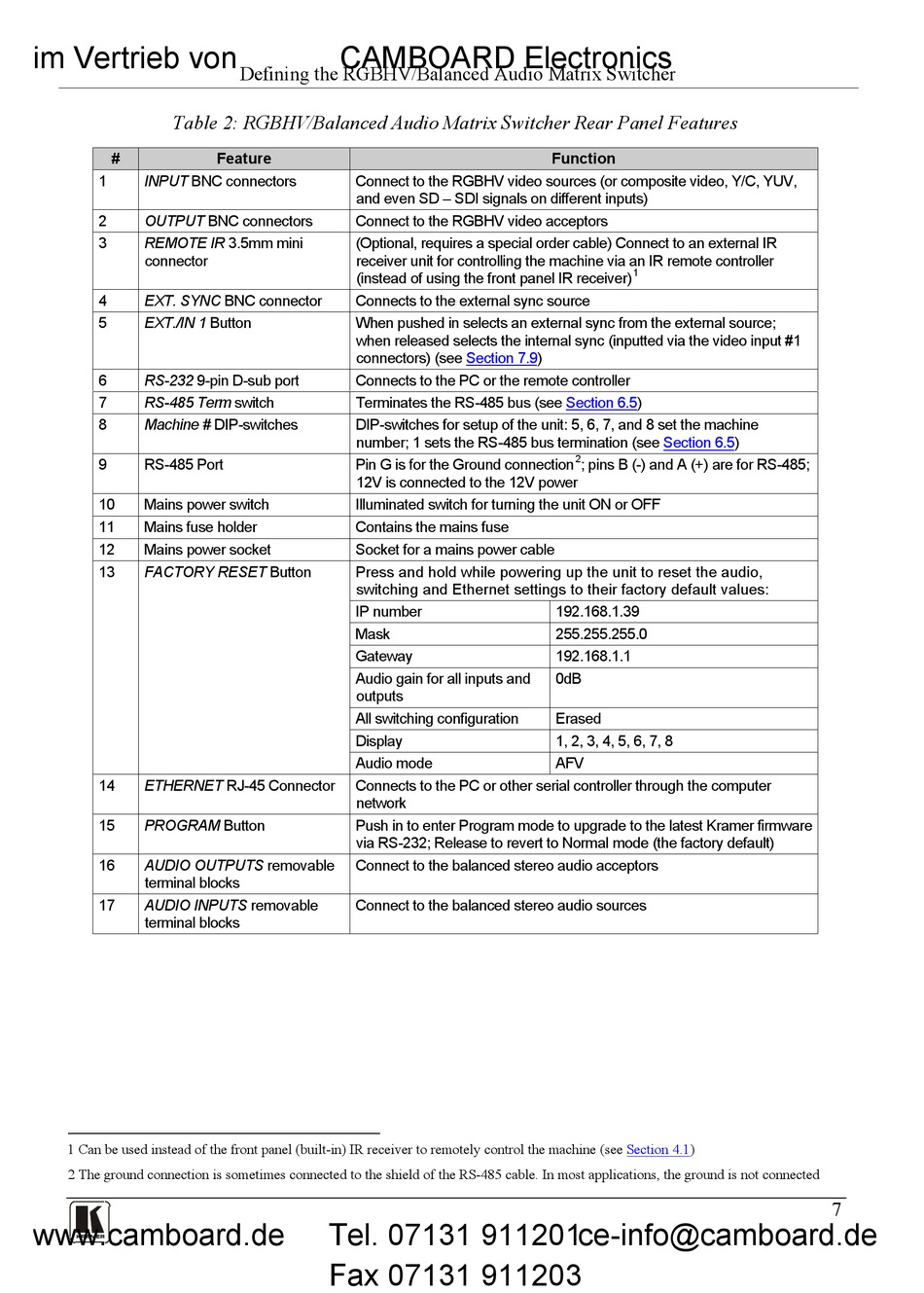

Table 2: RGBHV/Balanced Audio Matrix Switcher Rear Panel Features

#
1 INPUT BNC connectors
2 OUTPUT BNC connectors
3 REMOTE IR 3.5mm mini
connector
4 EXT. SYNC BNC connector
5 EXT./IN 1 Button
6 RS-232 9-pin D-sub port
7 RS-485 Term switch
8 Machine # DIP-switches
9 RS-485 Port
10 Mains power switch
11 Mains fuse holder
12 Mains power socket
13 FACTORY RESET Button
14 ETHERNET RJ-45 Connector
15 PROGRAM Button
16 AUDIO OUTPUTS removable
terminal blocks
17 AUDIO INPUTS removable
terminal blocks
1 Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (see
2 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not connected
www.camboard.de
CAMBOARD Electronics
Defining the RGBHV/Balanced Audio Matrix Switcher
Feature
Connect to the RGBHV video sources (or composite video, Y/C, YUV,
and even SD – SDI signals on different inputs)
Connect to the RGBHV video acceptors
(Optional, requires a special order cable) Connect to an external IR
receiver unit for controlling the machine via an IR remote controller
(instead of using the front panel IR receiver)
Connects to the external sync source
When pushed in selects an external sync from the external source;
when released selects the internal sync (inputted via the video input #1
connectors) (see
Connects to the PC or the remote controller
Terminates the RS-485 bus (see
DIP-switches for setup of the unit: 5, 6, 7, and 8 set the machine
number; 1 sets the RS-485 bus termination (see
Pin G is for the Ground connection
12V is connected to the 12V power
Illuminated switch for turning the unit ON or OFF
Contains the mains fuse
Socket for a mains power cable
Press and hold while powering up the unit to reset the audio,
switching and Ethernet settings to their factory default values:
IP number
Mask
Gateway
Audio gain for all inputs and
outputs
All switching configuration
Display
Audio mode
Connects to the PC or other serial controller through the computer
network
Push in to enter Program mode to upgrade to the latest Kramer firmware
via RS-232; Release to revert to Normal mode (the factory default)
Connect to the balanced stereo audio acceptors
Connect to the balanced stereo audio sources
Tel. 07131 911201
Fax 07131 911203
Function
1
Section 7.9 )
Section 6.5 )
2
; pins B (-) and A (+) are for RS-485;
192.168.1.39
255.255.255.0
192.168.1.1
0dB
Erased
1, 2, 3, 4, 5, 6, 7, 8
AFV
Section
ce-info@camboard.de
Section 6.5 )
4.1)
