im Vertrieb von
5. Set the RS-485 termination and Machine number (see
6. If required, connect a PC and/or controller to the:
RS-232 port and/or
RS-485 port and/or
Ethernet connector
7. Connect the power cord
Note that you can use the VP-88K
• For various video applications (other than RGB), such as, composite video,
Y/C (s-Video), YUV (component video), and even SD – SDI signals (Serial
Digital Video) on different inputs
• For parallel applications, for example, you can use it simultaneously as a
composite video 8x8 matrix and as a Y/C (s-Video) Matrix
• In mixed applications (such as Y/C and CV simultaneously). To do so, select
the parallel output channels for the same format, for example, if the Red and
Green Channels are used for Y/C (the Red for "Y" and the Green for "C") then
the output channels should be used similarly (Red for "Y" and Green for "C")
6.1
Wiring a Balanced/Unbalanced Stereo Audio Input/Output
F igure 4
illustrates how to wire a balanced input/output connection.
U
U
F igure 5
illustrates how to wire an unbalanced acceptor to the balanced output of
U
U
the unit.
1 Not illustrated in
Figure 3
2 Including the RGB connectors but not the HV connectors
3 For example, the Red channel is used for composite video and Green and Blue channels are used for s-Video
4 In a mixed signal application all the input channels are selected simultaneously. For example, if used for Y/C and CV parallel
switching, then when input number 1 is selected, it selects both input number 1 of the Y/C and input number 1 of the CV channel
www.camboard.de
10
CAMBOARD Electronics
Connecting the RGBHV/Balanced Audio Matrix Switcher
1
.
1 7 F

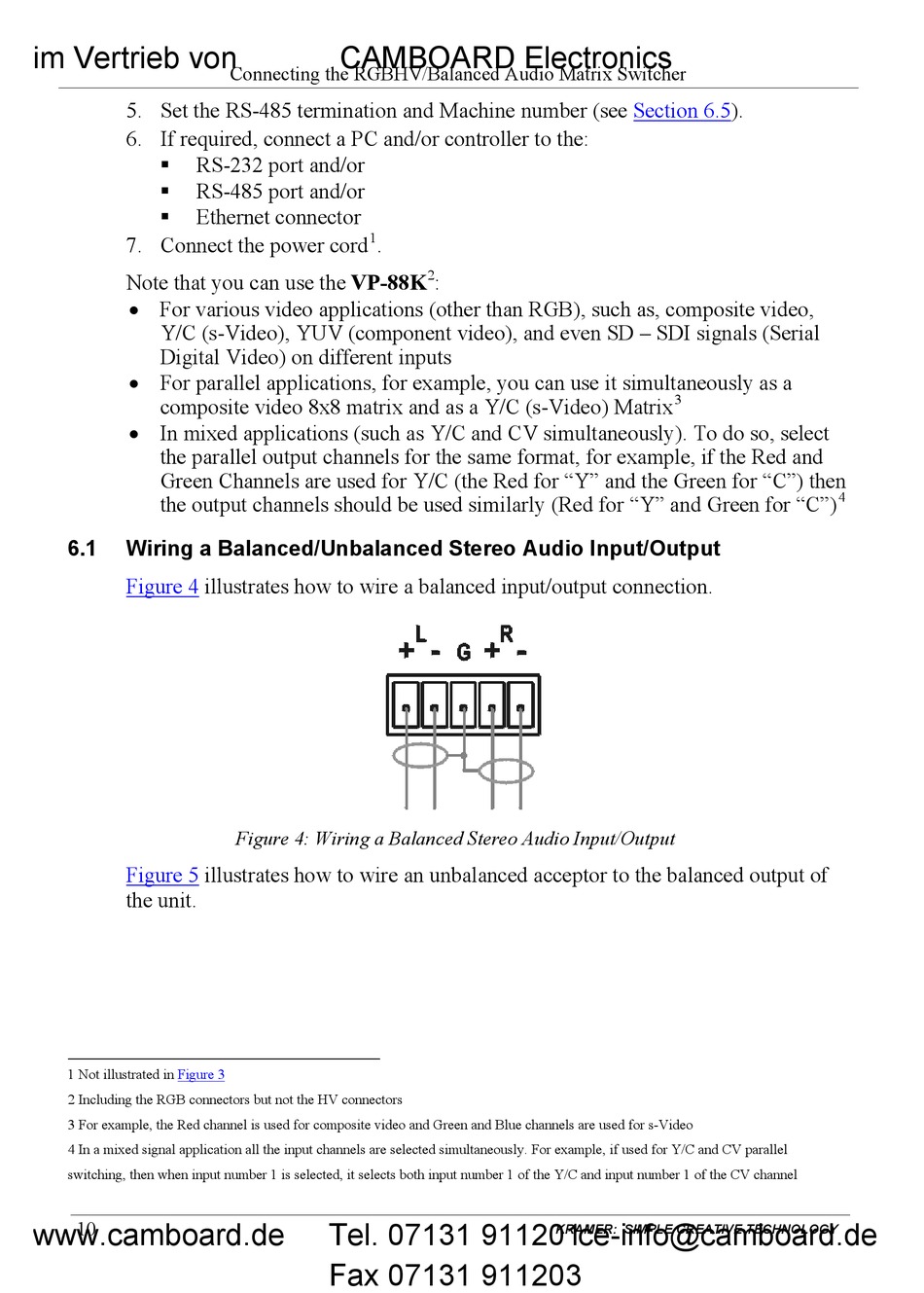

Figure 4: Wiring a Balanced Stereo Audio Input/Output
