im Vertrieb von
DIP-switch 1 determines the RS-485 bus termination for the VP-88K. Moving the
switch up turns the termination off (default), moving the switch down turns the
termination on.
DIP-switches 2, 3, and 4 are not used.
DIP-switches 5, 6, 7, and 8 determine the machine number of the VP-88K. When
several VP-88K units are connected, the machine number determines the unique
identity of the VP-88K in the sequence (see
• When using a stand-alone VP-88K unit, set the machine number to 1 (factory
default)
• When connecting more than one VP-88K, set the first machine (connected via
RS-232) to be machine number 1. The other VP-88K units must each be set to
a unique machine number between 2 and 16.
Machine Number
1
(Master, default)
2 (Slave)
3 (Slave)
4 (Slave)
5 (Slave)
6 (Slave)
7 (Slave)
8 (Slave)
www.camboard.de
CAMBOARD Electronics
Connecting the RGBHV/Balanced Audio Matrix Switcher

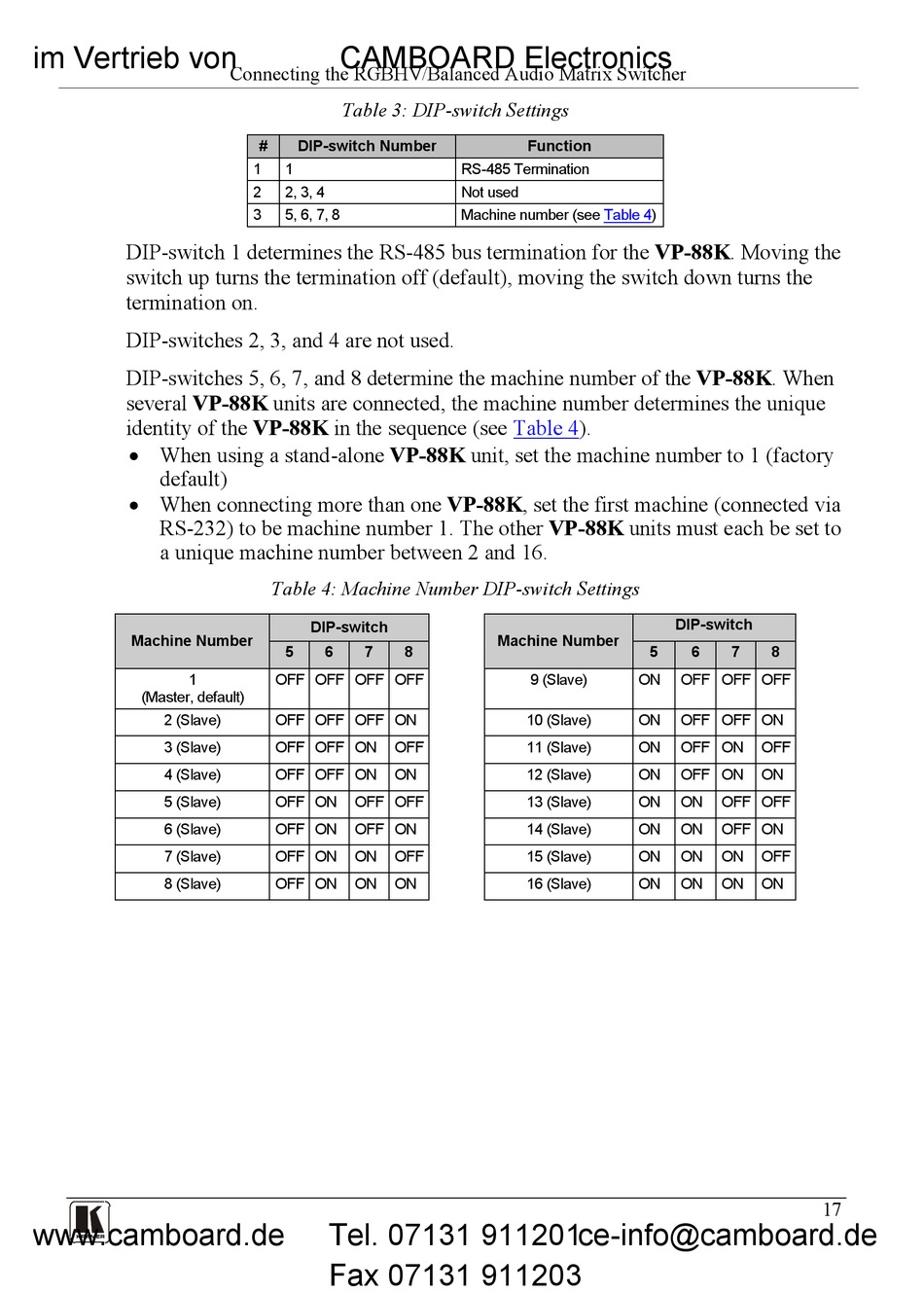

Table 3: DIP-switch Settings
#
DIP-switch Number
1
1
2
2, 3, 4
3
5, 6, 7, 8
Table 4: Machine Number DIP-switch Settings
DIP-switch
5
6
7
OFF OFF OFF OFF
OFF OFF OFF ON
OFF OFF ON
OFF
OFF OFF ON
ON
OFF ON
OFF OFF
OFF ON
OFF ON
OFF ON
ON
OFF
OFF ON
ON
ON
Tel. 07131 911201
Fax 07131 911203
Function
RS-485 Termination
Not used
Machine number (see
Table
4).
Machine Number
8
9 (Slave)
10 (Slave)
11 (Slave)
12 (Slave)
13 (Slave)
14 (Slave)
15 (Slave)
16 (Slave)
Table
4)
DIP-switch
5
6
7
ON
OFF OFF OFF
ON
OFF OFF ON
ON
OFF ON
ON
OFF ON
ON
ON
OFF OFF
ON
ON
OFF ON
ON
ON
ON
ON
ON
ON
ce-info@camboard.de
8
OFF
ON
OFF
ON
17
