Understanding the 7-Segment Status Display Information

The VP-88K has three display modes:
• Immediately after the power is turned on (see
• During normal operation (see
• During Audio Gain Level Setting (see
7.4.1 Status Display Immediately After Power is Turned On
Immediately after the unit is turned on, the status display shows:
1. The firmware version (major, minor, and revision) for the first five seconds
(see Figure
2. The firmware build number and machine number for the following five
seconds (see
7.4.2 Status Display During Normal Operation
During normal operation, the STATUS display shows which inputs are switched to
which outputs (an example is shown in
www.camboard.de
20
CAMBOARD Electronics
Operating the VP-88K
13)

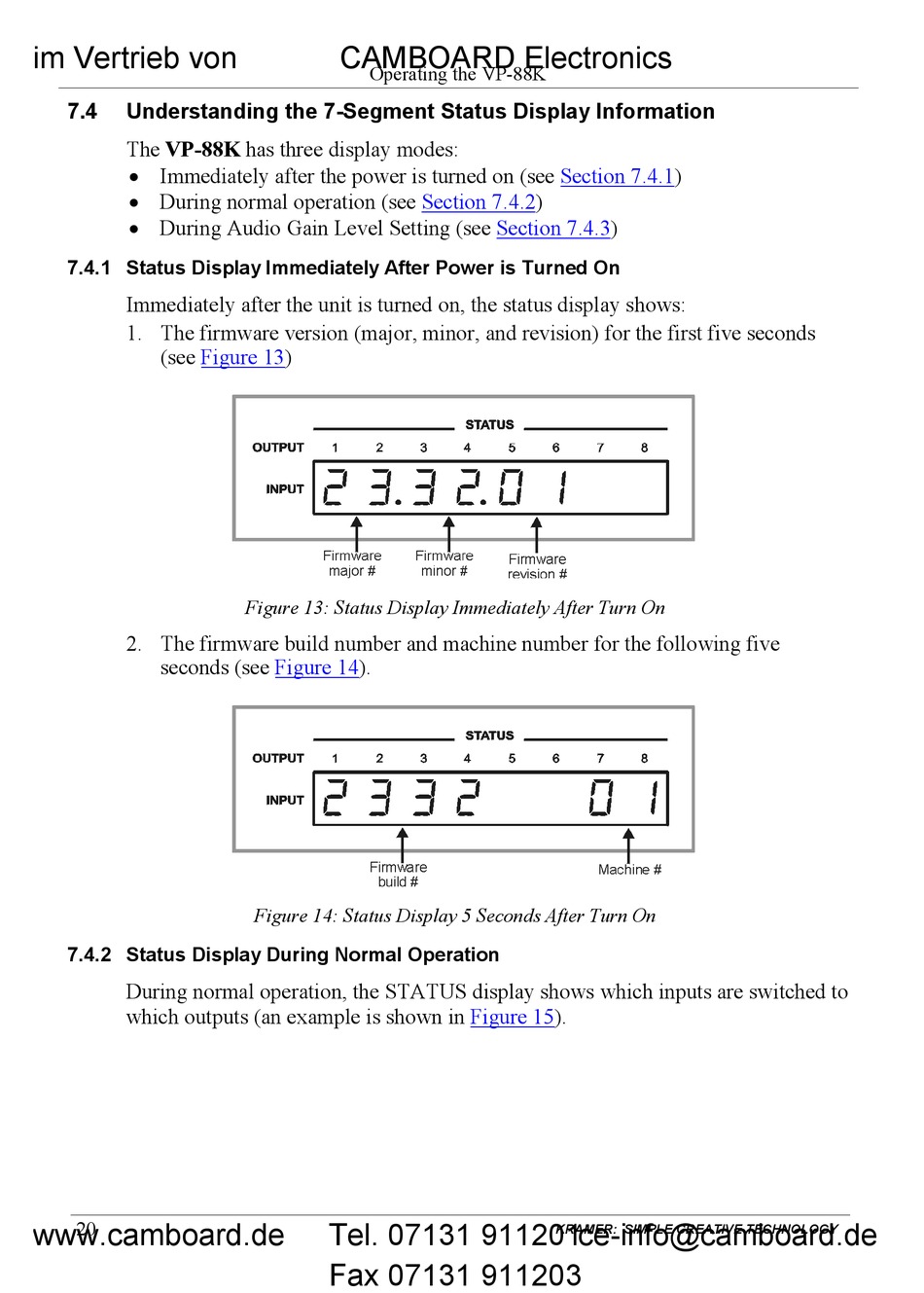

Figure 13: Status Display Immediately After Turn On
