im Vertrieb von
A blue video icon
In 1 and Out 4.
3. Repeat the above steps for each video and audio (clicking the purple Audio
button) channel that you want to switch.

9.2.2 Setting the AFV Mode

Audio channel In 1 is currently switched to Out 4.
To set the AFV mode:
1. Click the AFV button.
The following warning appears.
www.camboard.de
CAMBOARD Electronics
Connecting to the VP-88K via your Browser

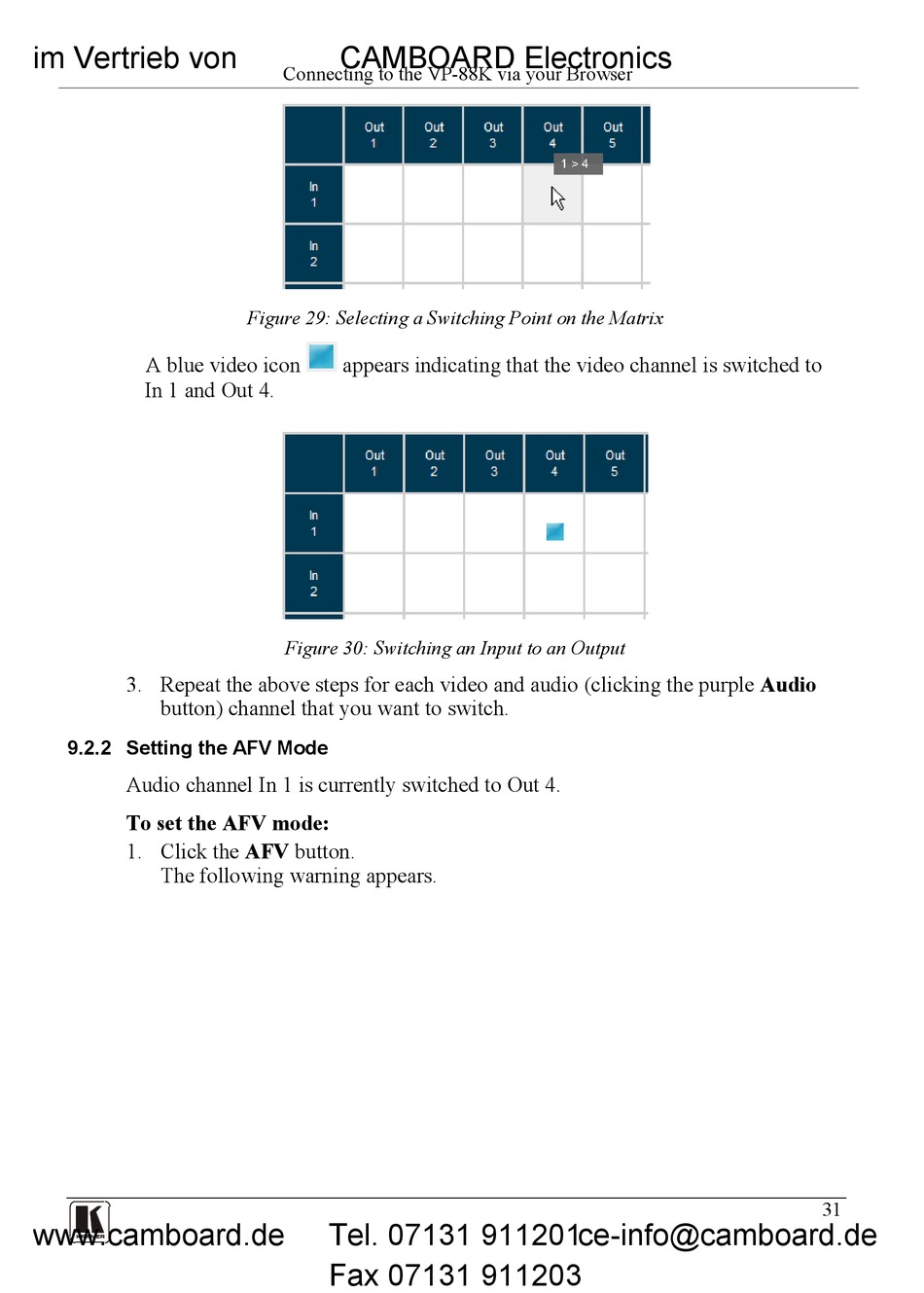

Figure 29: Selecting a Switching Point on the Matrix
appears indicating that the video channel is switched to
Figure 30: Switching an Input to an Output
Tel. 07131 911201
Fax 07131 911203
ce-info@camboard.de
31
