• If the AUDIO differs from the VIDEO, then the TAKE and the AUDIO
buttons flash. Also, the audio outputs of the STATUS 7-segment display which
change, flash
follows the video

7.5.2 Setting the Breakaway Option

To set the Breakaway option:
• Press either the AUDIO (for audio control only) or the VIDEO (for video
control only) button. One of the following occurs:
If the AUDIO button lights, switching operations relate to Audio

If the VIDEO button lights, switching operations relate to Video

The STATUS window displays audio or video settings according to your selection.
7.6 Storing/Recalling Input-Output Configurations
You can store and recall up to 16 input-output configurations (or setups) in
non-volatile memory, using the OUTPUT (1-8) and OUTPUT (9-16) SELECTOR
buttons (see
7.6.1 Storing an Input-Output Configuration
To store the current status in memory:
1. Press the STO button.
The STO button flashes.
2. Press one of the INPUT/OUTPUT SELECTOR buttons from 1 to 8. This is
the setup number in which the current status is stored.
The memory stores the data at that reference.
7.6.2 Recalling an Input-Output Configuration
To recall an input-output configuration, do the following:
1. Press the RCL button.
The RCL button flashes.
1 This warns that you are about to modify the audio configuration for AFV operation
www.camboard.de
22
CAMBOARD Electronics
Operating the VP-88K
1
. Press the TAKE button to confirm the modification. The audio
Figure 17).

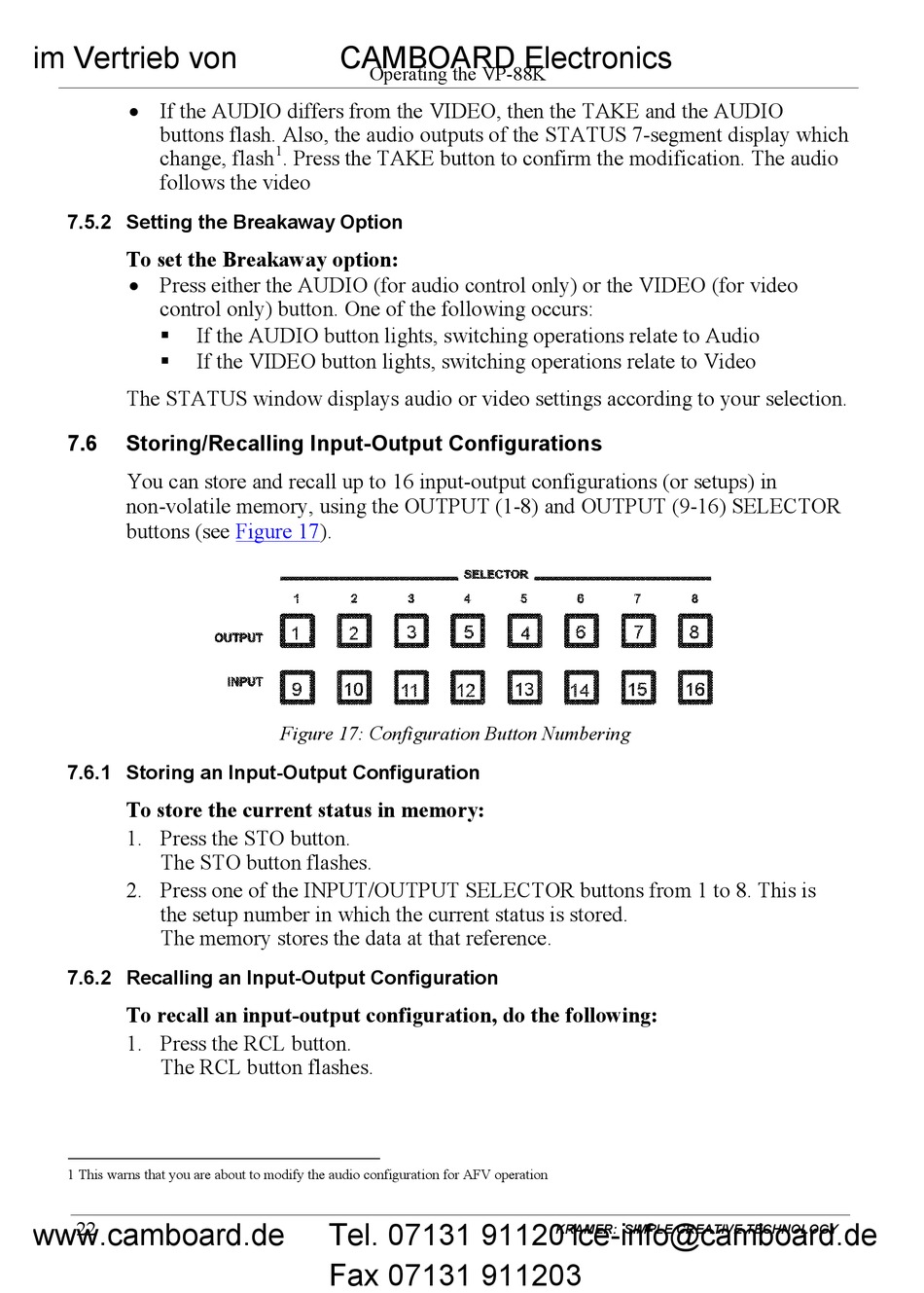

Figure 17: Configuration Button Numbering
