Figure 6 illustrates how to wire an unbalanced source to the balanced input on the
VP-88K.
6.2 Connecting to the VP-88K via RS-232
You can connect to the VP-88K via an RS-232 connection using, for example, a
PC. Note that a null-modem adapter/connection is not required.
www.camboard.de
CAMBOARD Electronics
Connecting the RGBHV/Balanced Audio Matrix Switcher

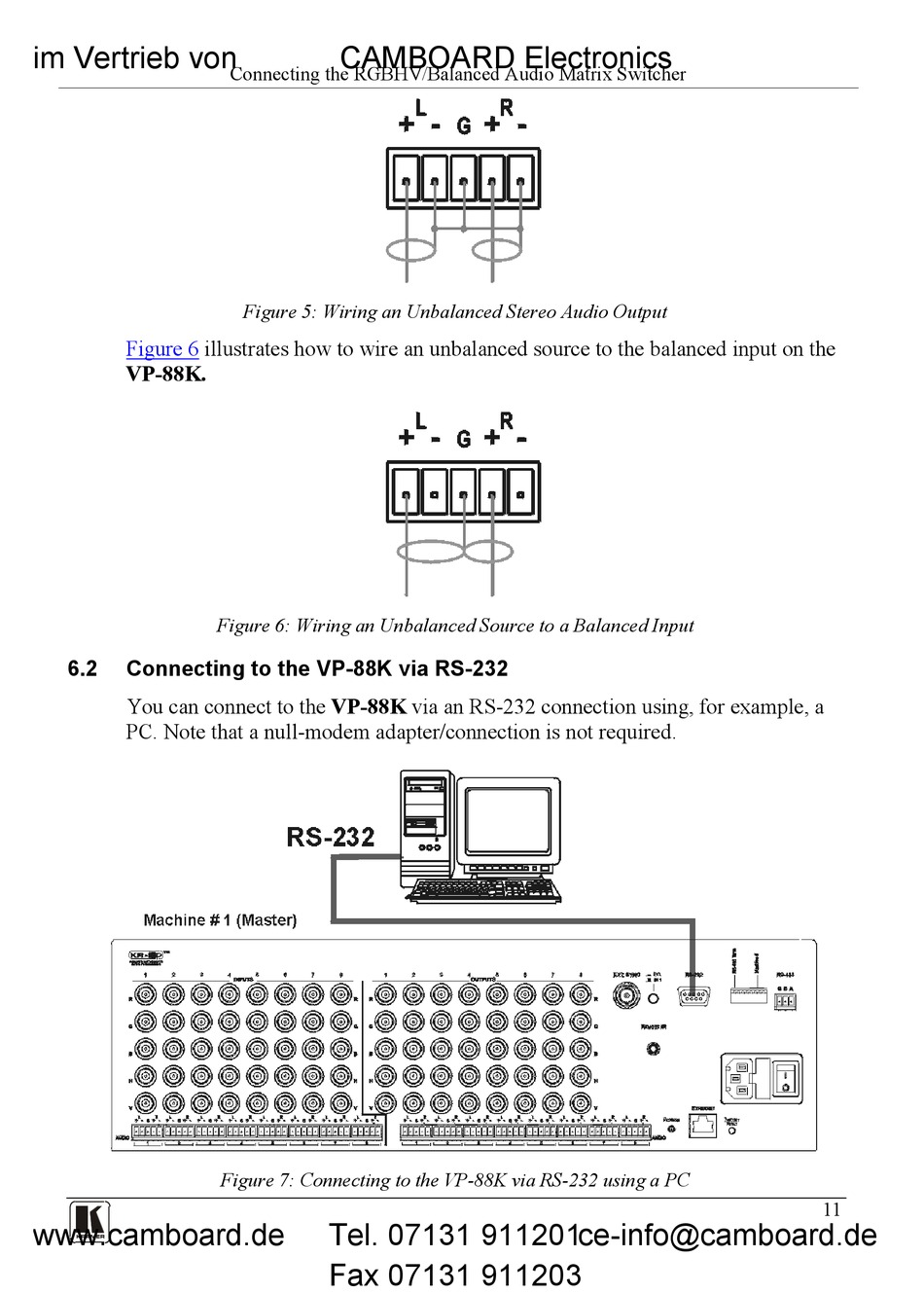

Figure 5: Wiring an Unbalanced Stereo Audio Output

Figure 6: Wiring an Unbalanced Source to a Balanced Input

Figure 7: Connecting to the VP-88K via RS-232 using a PC

Tel. 07131 911201
Fax 07131 911203
ce-info@camboard.de
11
