Kramer VP-8X8 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

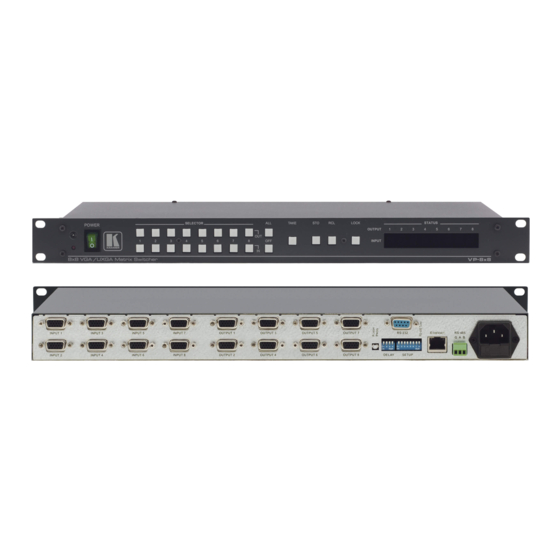

VP-8X8 Matrix Switcher
Kramer RC-IR3 Infrared Remote Control
Transmitter (with battery and user manual)
1 Null-modem adapter

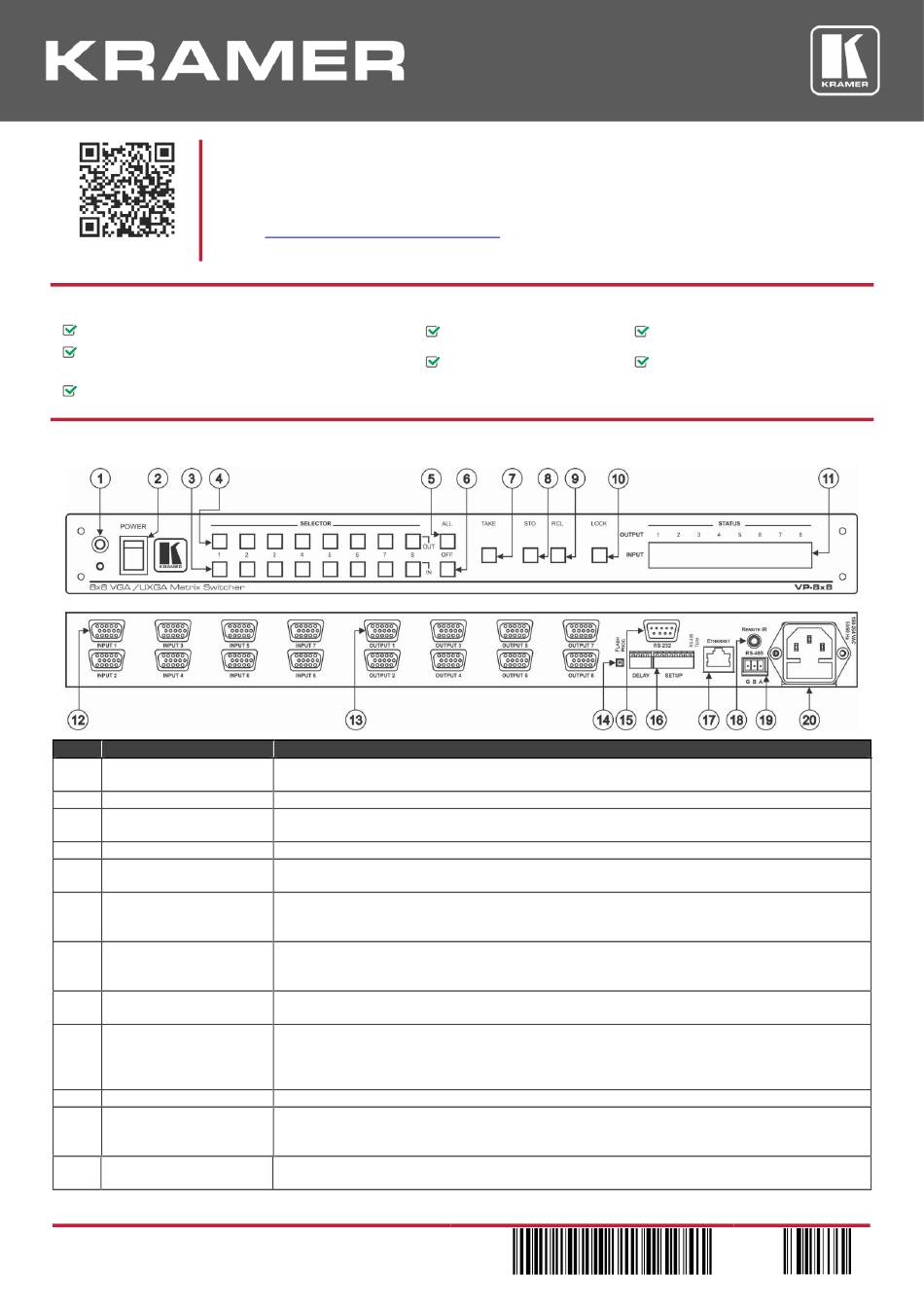

Step 2: Get to know your VP-8X8
# Feature
1 IR Receiver
2 POWER Switch
3 IN SELECTOR Buttons
4 OUT SELECTOR Buttons Select the output to which the input is switched
5 ALL Button
6 OFF Button
7 TAKE Button
8 STO (Store) Button
9 RCL (Recall) Button
10 LOCK Button
11 STATUS 7-segment
Display
12 15-pin HD INPUT
Connectors
VP-8X8 Quick Start
VP-8X8 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VP-8X8
upgrades are available.
Function
The yellow LED is illuminated when receiving signals from the infrared remote control
transmitter
Illuminated switch for turning the unit ON or OFF
Select the input to switch to the output.
When a signal is detected, the input button illuminates in green
Pressing ALL followed by an INPUT button, connects that input to all outputs
For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
Press an OUT SELECTOR button and then an OFF button to disconnect that output from the
inputs.
Press the ALL button and then the OFF button to disconnect all the outputs
Pressing TAKE toggles the mode between the Confirm mode and the At Once mode (user
confirmation per action is unnecessary)
When in the Confirm mode, the TAKE button illuminates
Pressing STO followed by an input/output button stores the current setting
For example, press STO and then the Output button # 3 to store in Setup # 3
Pressing the RCL button and the corresponding IN/OUT button recalls a setup from the non-
volatile memory. The stored status flashes. Pressing a different IN/OUT button lets you view
another setup. After making your choice, pressing the RCL button again implements the new
status
Disengages the front panel switches
Displays the selected input switched to the output (marked above each input)
Also displays the number of IN and OUT ports, the firmware version number, and the
MACHINE #.
Connect to the video sources (from 1 to 8)
VP-8X8 for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
P/N: 2 9 0 0 - 3 0 1 2 5 8 QS
4 Rubber feet
1 Quick start guide
Rev: 3
