6 Connecting the RGBHV/Balanced Audio Matrix Switcher
To connect the VP-88K RGBHV/Balanced Audio Matrix Switcher

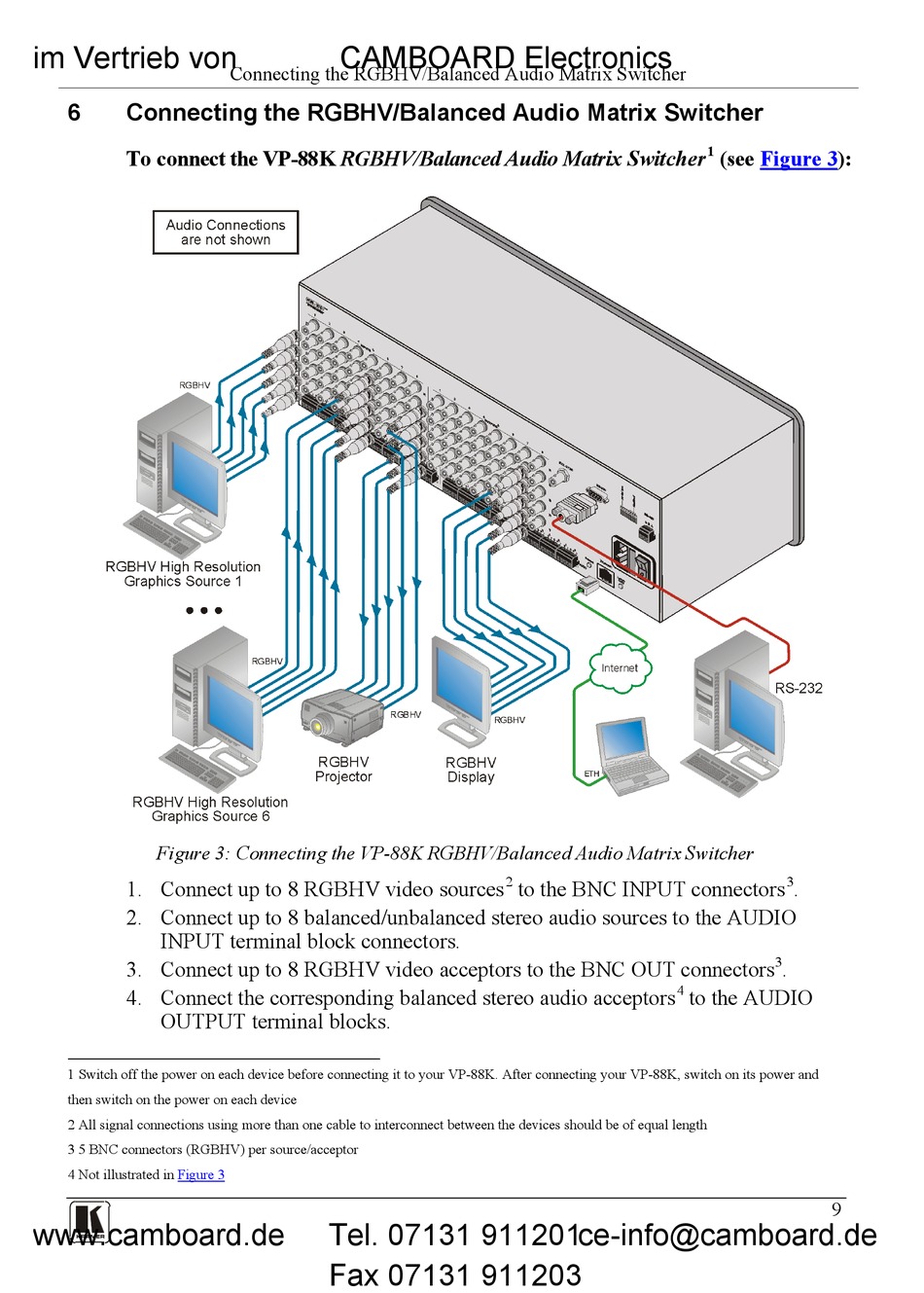

Figure 3: Connecting the VP-88K RGBHV/Balanced Audio Matrix Switcher

1. Connect up to 8 RGBHV video sources
2. Connect up to 8 balanced/unbalanced stereo audio sources to the AUDIO
INPUT terminal block connectors.
3. Connect up to 8 RGBHV video acceptors to the BNC OUT connectors
4. Connect the corresponding balanced stereo audio acceptors
OUTPUT terminal blocks.
1 Switch off the power on each device before connecting it to your VP-88K. After connecting your VP-88K, switch on its power and
then switch on the power on each device
2 All signal connections using more than one cable to interconnect between the devices should be of equal length
3 5 BNC connectors (RGBHV) per source/acceptor
4 Not illustrated in Figure 3
www.camboard.de
CAMBOARD Electronics
Connecting the RGBHV/Balanced Audio Matrix Switcher
Tel. 07131 911201
Fax 07131 911203
2
to the BNC INPUT connectors
4
ce-info@camboard.de
1
(see Figure 3):
3
.
3
.
to the AUDIO
9
