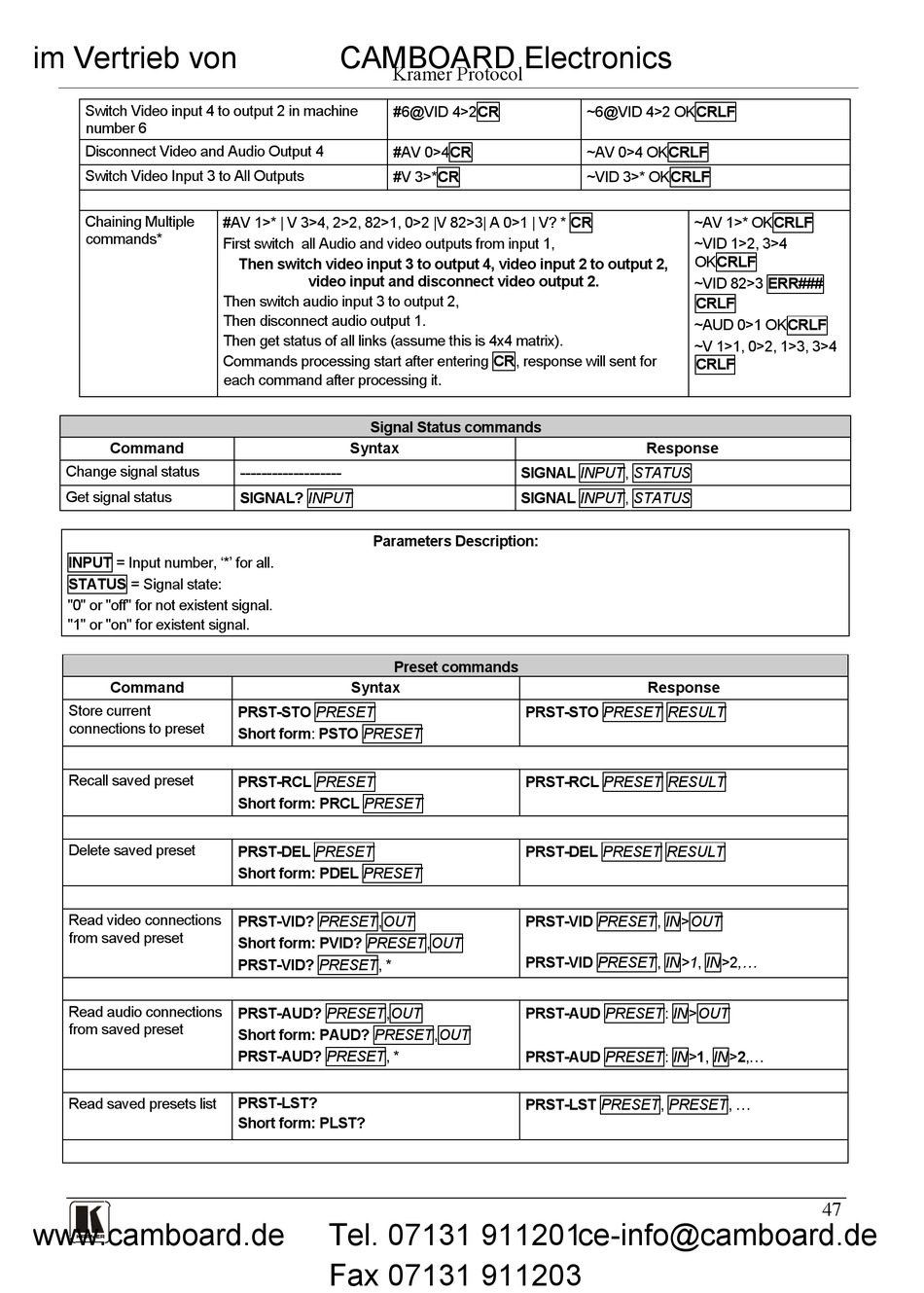

im Vertrieb von
Switch Video input 4 to output 2 in machine
number 6
Disconnect Video and Audio Output 4
Switch Video Input 3 to All Outputs
Chaining Multiple
commands*
Command
Change signal status
Get signal status
INPUT = Input number, '*' for all.
STATUS = Signal state:
"0" or "off" for not existent signal.
"1" or "on" for existent signal.
Command
Store current
connections to preset
Recall saved preset
Delete saved preset
Read video connections
from saved preset
Read audio connections
from saved preset
Read saved presets list
www.camboard.de
CAMBOARD Electronics
Kramer Protocol
#6@VID 4>2CR
#AV 0>4CR
#V 3>*CR
#AV 1>* | V 3>4, 2>2, 82>1, 0>2 |V 82>3| A 0>1 | V? * CR
First switch all Audio and video outputs from input 1,
Then switch video input 3 to output 4, video input 2 to output 2,
video input and disconnect video output 2.
Then switch audio input 3 to output 2,
Then disconnect audio output 1.
Then get status of all links (assume this is 4x4 matrix).
Commands processing start after entering CR, response will sent for
each command after processing it.
Signal Status commands
Syntax
-------------------
SIGNAL? INPUT
Parameters Description:
Preset commands
Syntax
PRST-STO PRESET
Short form: PSTO PRESET
PRST-RCL PRESET
Short form: PRCL PRESET
PRST-DEL PRESET
Short form: PDEL PRESET
PRST-VID? PRESET,OUT
Short form: PVID? PRESET,OUT
PRST-VID? PRESET, *
PRST-AUD? PRESET,OUT
Short form: PAUD? PRESET,OUT
PRST-AUD? PRESET, *
PRST-LST?
Short form: PLST?
Tel. 07131 911201
Fax 07131 911203
~6@VID 4>2 OKCRLF
~AV 0>4 OKCRLF
~VID 3>* OKCRLF
Response
SIGNAL INPUT, STATUS
SIGNAL INPUT, STATUS
Response
PRST-STO PRESET RESULT
PRST-RCL PRESET RESULT
PRST-DEL PRESET RESULT
PRST-VID PRESET, IN>OUT
PRST-VID PRESET, IN>1, IN>2,...
PRST-AUD PRESET: IN>OUT
PRST-AUD PRESET: IN>1, IN>2,...
PRST-LST PRESET, PRESET, ...
ce-info@camboard.de
~AV 1>* OKCRLF
~VID 1>2, 3>4
OKCRLF
~VID 82>3 ERR###
CRLF
~AUD 0>1 OKCRLF
~V 1>1, 0>2, 1>3, 3>4
CRLF
47
