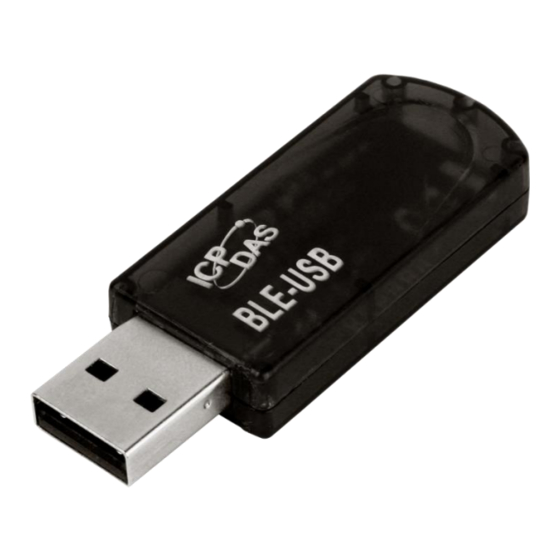

BLE-USB
USB to Bluetooth Low Energy Converter
User Manual v1.0
www.icpdas.com
BLE-USB, USB to Bluetooth Low Energy Converter (Ver. 1.0, Oct/6/2016) 1
