ICP DAS USA I-7561U Quick Start Manual

All manuals and user guides at all-guides.com
I-7561U

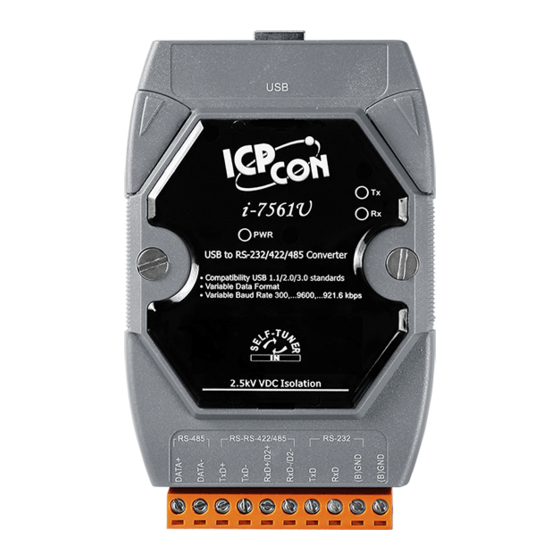

USB to RS-232/422/485 Converter
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/i_7561u.html
1. Introduction
The I-7561U/I-7563U module is a cost-effective solution for transferring
serial data via USB allowing serial devices to be connected to systems that
use a USB interface. By connecting the I-7561U/I-7563U module to a PC, a
single RS-232 or RS-422/485 port can be accessed. Both modules contain
a "Self-Tuner" chip that automatically tunes the Baud Rate and Data
Format to the RS-485 network. The modules are powered from the USB
bus, meaning that an additional power adaptor is not required.
2. System Network Configuration
I-7561U USB to RS-232/422/485 Converter- QuickStart (Sep/2017)
