I-7561
USB to RS-232/422/485 Converter
Quick Start Guide
Product Info:
http://www.icpdas-usa.com/i_7561.html

1. Introduction

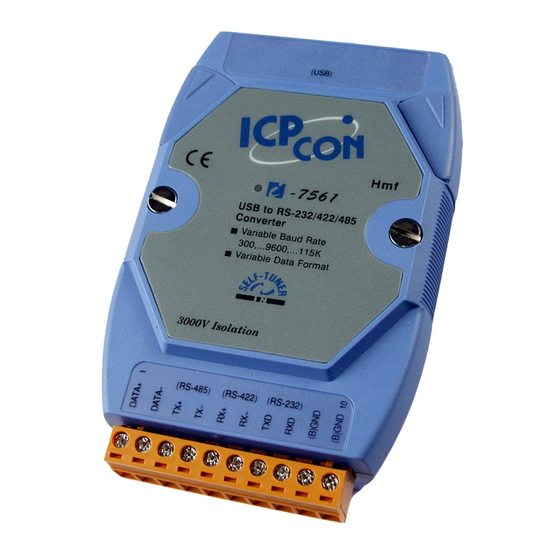

I-7561 is a cost-effective module for transferring serial data via USB. You
can connect your serial devices to systems that use a USB interface. There
is one RS-232/422/485 port where the I-7561 could act as a RS-232 to
USB converter, RS-485 to USB converter, and RS-422 to USB converter. A
"Self-Tuner" chip auto-tunes the Baud Rate and data format to the RS-485
networks. The I-7561 module is self-powered through USB. The I-7561
acts as a RS-232 to USB converter, an RS-485 to USB converter, and an
RS-422 to USB converter.

2. System Network Configuration

Multiple Baud Rate
-Multiple Data Format
I-7561 USB to RS-232/422/485 Converter- QuickStart (Feb/2016)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-7561 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA I-7561

Summary of Contents for ICP DAS USA I-7561

  • Page 1 I-7561 is a cost-effective module for transferring serial data via USB. You can connect your serial devices to systems that use a USB interface. There is one RS-232/422/485 port where the I-7561 could act as a RS-232 to USB converter, RS-485 to USB converter, and RS-422 to USB converter. A "Self-Tuner"...
  • Page 2 3. Block Diagram 4. Output Types I-7561 USB to RS-232/422/485 Converter- QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 3 The following steps will show how to install the device under Windows 7. 1. Power on your computer and boot to Windows. 2. Locate the USB port of your computer and plug in the I-7561. 3. Windows will detect the new device and will initiate the Found New Hardware Wizard prompting you to install the software for the detected USB Device.
  • Page 4 I-7561 USB to RS-232/422/485 Converter- QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 5 I-7561 USB to RS-232/422/485 Converter- QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 6 I-7561 USB to RS-232/422/485 Converter- QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 7 You will also need to determine the COM port assignment made by Windows for the USB to RS-232/422/485 converter. Note: Before you connect the I-7561 for the first time, ensure that you do not attach any serial devices to the converter. You must only connect the I-7561 itself.
